Drilling Rig

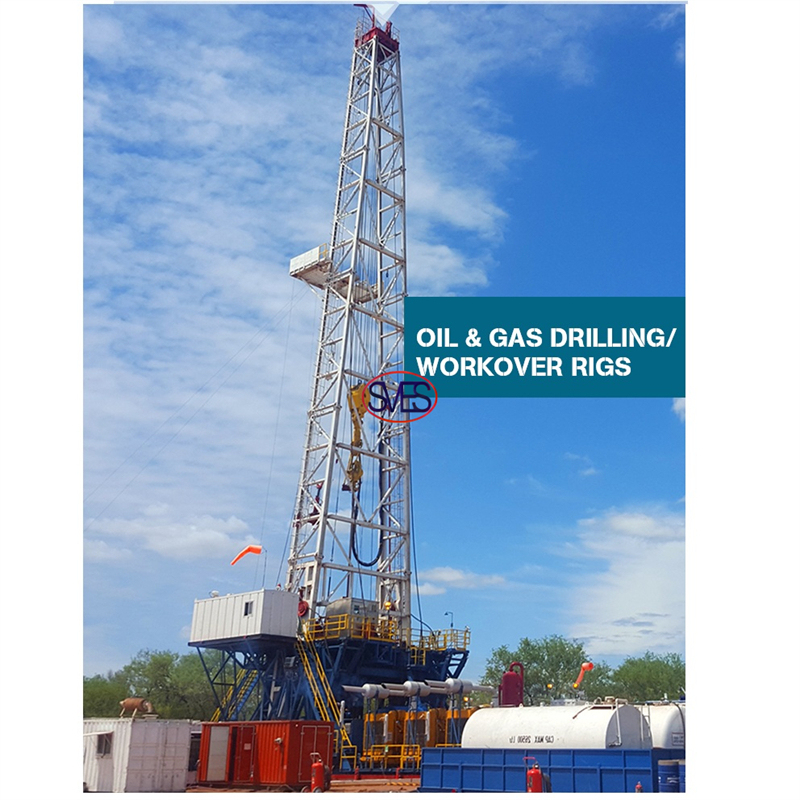

Oil and Gas Land Drilling Rig

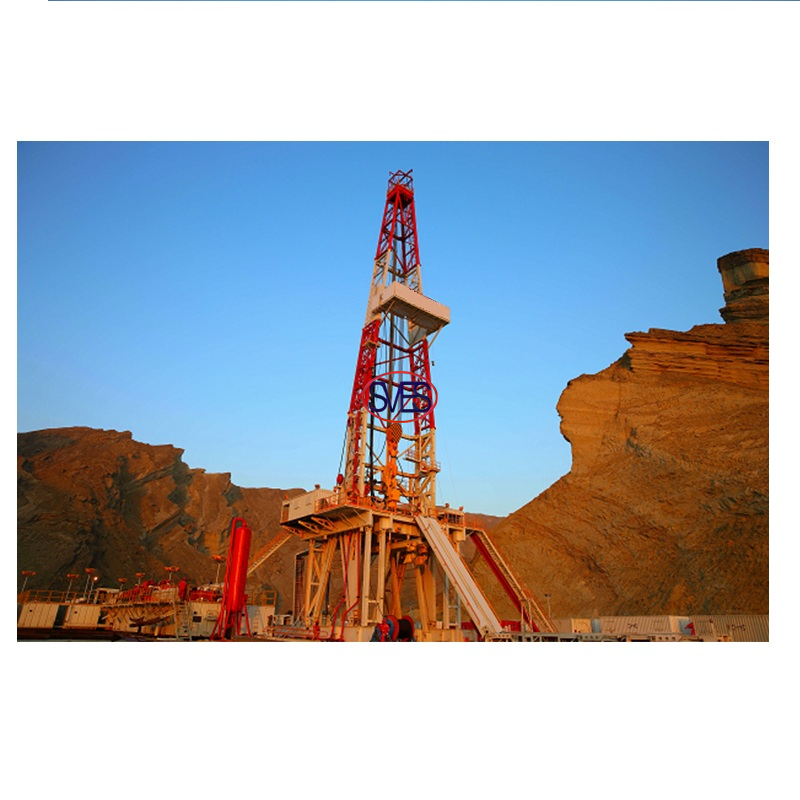

1.Skid Mounted Drilling Rig

Mechanic and electric land drilling rigs with drilling depth of 1500-9000m (550-3000HP).

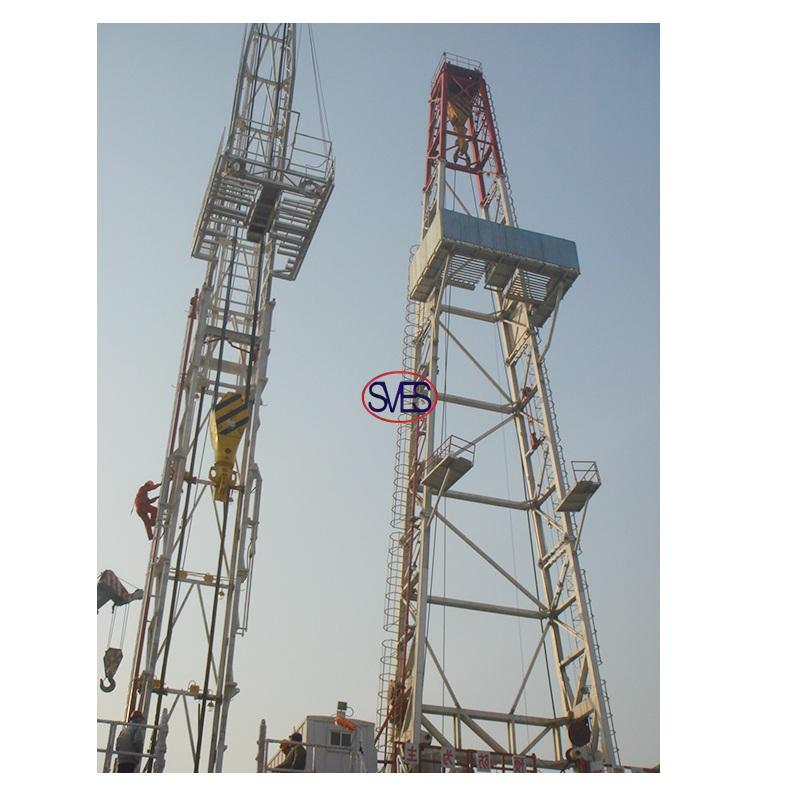

The masts and substructures of the drilling rigs are divided into double elevating type, once-raised type, continuous lifting type, bootstrap type, telescopic type, vertical lifting type, box on box type and derrick type, for option of users.The drawworks can be conventional chain transmission drawworks, or advanced gear transmission drawworks. The auto driller is also for option.

Full digital electrical control system of the drilling rigs has DC and VFD types, any of which can realize the dynamic braking with full torque. The advanced data communication system can realize the remote monitoring function, to improve the efficiency of drilling monitoring and after-sale services.

The drilling rigs are designed and manufactured as API specifications, and the entire design meet the HSE requirements.

Specification:

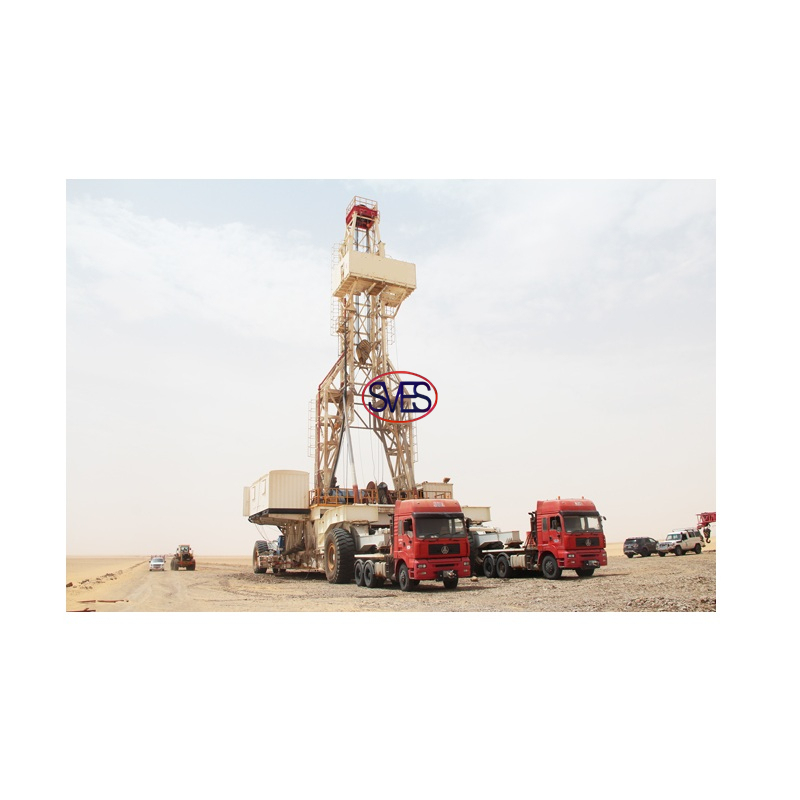

2. Trailer Mounted Drilling Rig

The Drilling Rig is divided into three moving units: the drilling rig, mud pump devices, and the power system. Each unit can be moved by motor tractors through the matching trailer mounted unit. Thus, greatly saving the costs of manpower, materials, and time.

Product Features:

· It integrates the rig mast, substructure, drawworks, BOP remote control cabinet, hydraulic station and electric rope guide machine into one trailer, which is a new generation design of fast moving rig in China with features of reducing trailer module, high integration and high-effective rig moving time.

· It can meet the requirements of fast moving

· The generator set, VFD room, mud pump set and diesel tank can be moved with little dissemble work, which is significant to reduces the operation time of disassembly, assembly and transportation between well sites. The drilling rig has fewer modules, high efficiency on transportation and reliable quality.

· Various types (horsepower) of rig trailer can be customized to realize the moving of mast and substructure indepently, as well as the rig main body moving with mast rig up.

· The generator set, VFD room, mud pump set and diesel tank can be moved with little dissemble work, which is significant to reduces the operation time of disassembly, assembly and transportation between well sites. The drilling rig has fewer modules, high efficiency on transportation and reliable quality.

· 2-3 sets of electric mud pump sets can be transported on one trailer, while one single set of diesel engine driven pump set can be transported on one trailer.

Specification：

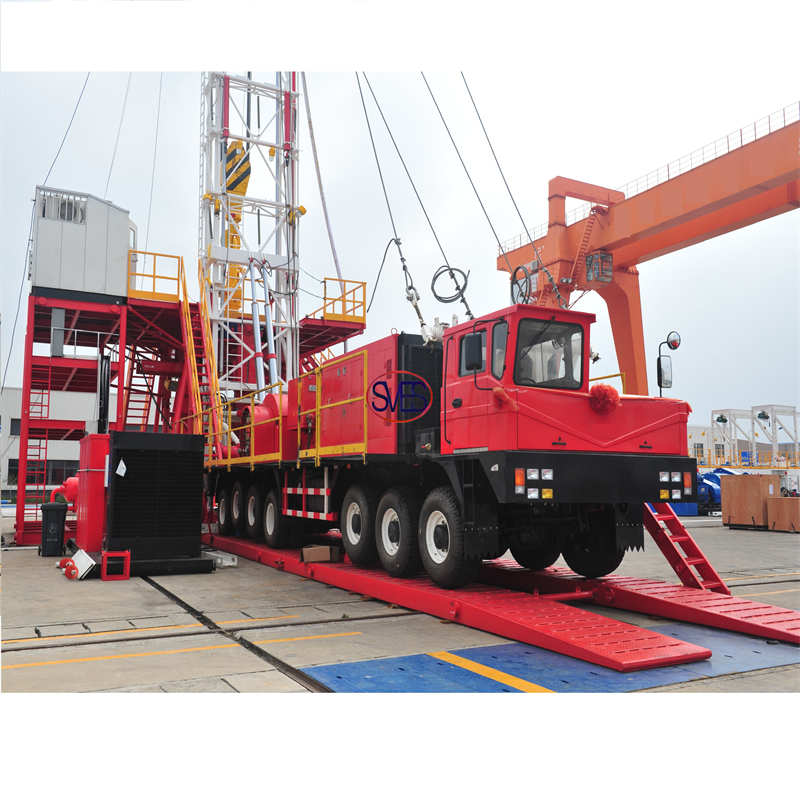

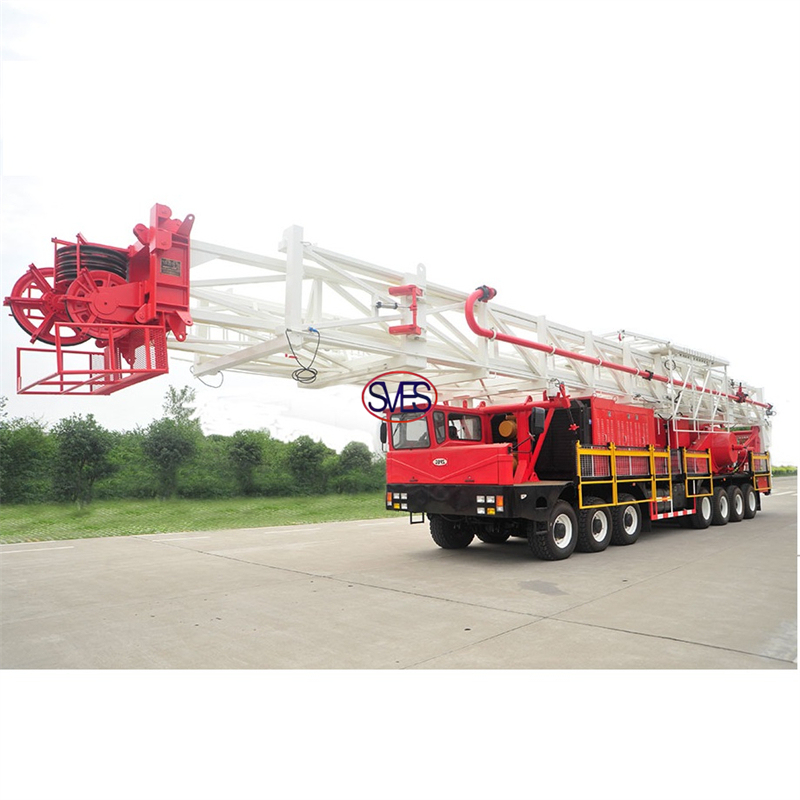

3.Truck Mounted Drilling Rig

Product Features

· Power system utilizes international famous engines and hydraulic transmission boxes.

· Chassis driven via power take-off box from truck engine, adopting excellent off-road heavy-duty wide axle, low section tires, high strength beams, hydraulic steering gear, dual brake system. It can adapt to complicated oilfield conditions with longer service life.

· The mast is front-open and two-section telescopic front-inclined type, which is hydraulic lifted and telescopied; It adopts common ground-anchored guylines or self-guylines.

· The rig is designed and manufactured in compliance with HSE regulations and API specifications.

· The main drum is Lebus grooved. The main brake utilizes band brake or hydraulic disc brake, and the auxiliary brake utilizes pneumatic water-cooling disc brake. The bailing drum can be equipped optionally.

· The drill floor is two-part telescopic type or adopts parallelogram structure, which is easy for transportation and lifting. The floor size and height can be designed as customers' requirements.

Specificaiton:

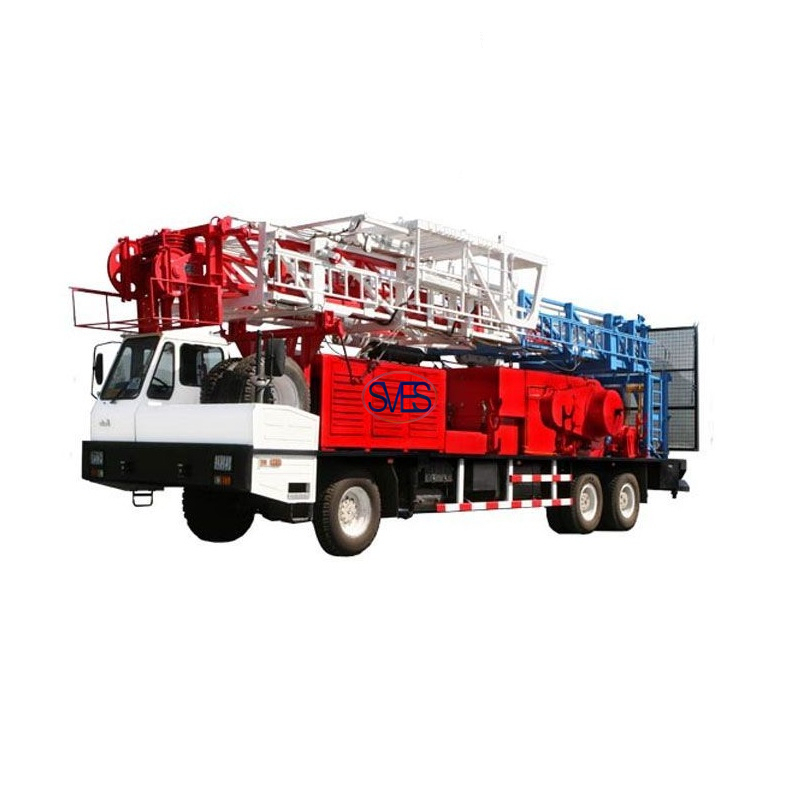

4.workover Rig

Product Features:

• The mast is front-open and two-section telescopic front-inclined type, which is hydraulic lifted and telescopied; It adopts common ground-anchored guylines or self-guylines.

• Centralized control of electric, gas and hydraulic systems, easy to operate; The main parts and components utilizes international famous brand products with good reliability.

• Workover rig equipped with reasonable power supply, high transmission efficiency, high reliability, compact structure and high degree of containerization;

• The main drum is Lebus grooved. The main brake utilizes band brake or hydraulic disc brake, and the auxiliary brake utilizes pneumatic water-cooling disc brake. The bailing drum can be equipped optionally.

• Equipped with heavy-duty chassis,hydraulic power steering mechanism and double pipeline braking system, can adapt to the complex road conditions of the oilfield and has a long service life;

• The mast is telescopic type or parallelogram structure type, whose drill floor can be equipped with portable working platform as optional. The drilling floor, rotary table and its transmission system can be customized as required.

• Derrick design and manufacture in accordance with API 4F specification;

Specification:

Water Drilling Water Rig

 1.  Water and gas dual-purpose Drilling Rig

(1)SFYX 180， SFYX200 Rubber Crawler Water Well Drilling Rig

Water and gas dual-purpose crawler type rig drill the depth from 180 meters to ？？ meters.

Features:

(A).Equipped with 55KW and  Yuchai brand turbocharged engine with strong power;

(B).Easy to load and unload on the truck，the operating system is simple and easy to operate

(C).Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder;

(D).Drilling rig chassis: professional excavator chassis, strong and durable, heavy-duty, wide chain plate, the drilling rig uses rubber tracks, high flexibility, less damage to hard roads.

(E).Parallel transmission design, independent oil pump, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost.

(F).Patented design compound boom, double cylinder lifting;

(G).Dual systems can be added: 1. Air power system with air compressor 2. Mud pump system with mud pump

Specification：

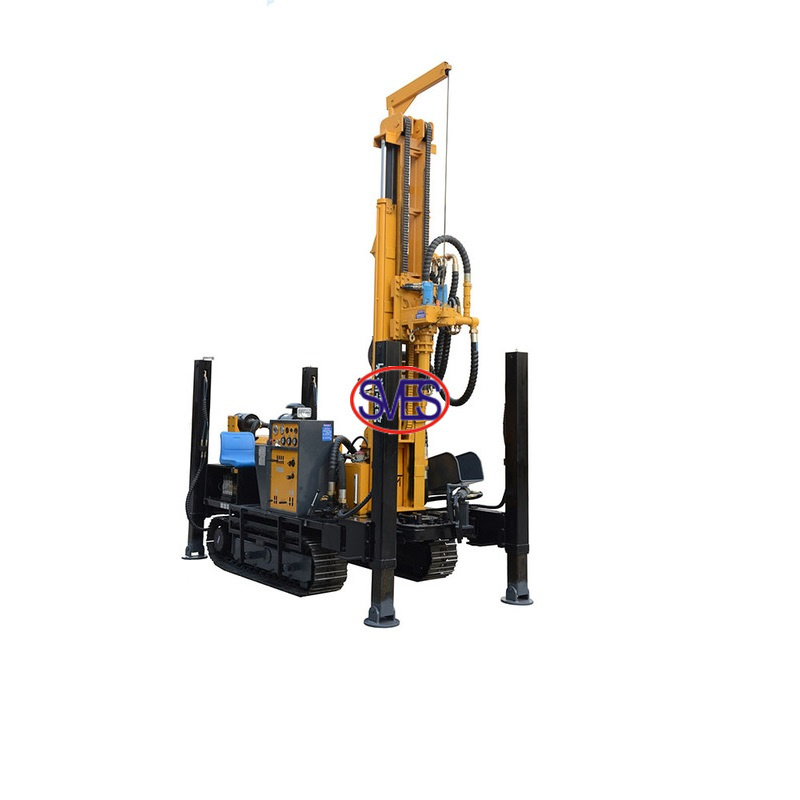

(2)SFY180,SFY260,SFY280,SFY300,SFY350,SFY380,SFY450,SFY500,SFY580,SFY680,SFY800 Type Steel crawler water well drilling rig

Features:

(A). Equipped with a 55KW-194KW Cummins brand 6-cylinder turbo engine with strong power and long service life;

(B). Patented design compound boom, double oil cylinder lift, strengthen the tower;

(C). (Italy imported oil pump) 3 oil pumps, equipped with foam pump, winch, multi-function generator, front outrigger swing arm oil cylinder;

(D). Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder;

(F). The diameter of the hole is large, the hole is deep, and the advancing speed is fast.

(G). Drilling rig chassis: Reinforced steel crawler, large chassis, strong and durable, heavy bearing, wide chain plate, large tonnage.

(H). Parallel transmission design, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost.

(I). The independent heat dissipation dual system adopts hydraulic oil temperature cooling and is equipped with traditional air cooling. long engine life

(J). Equipped with dual systems: 1. Air power system with air compressor 2. Mud pump system with mud pump

Specification:

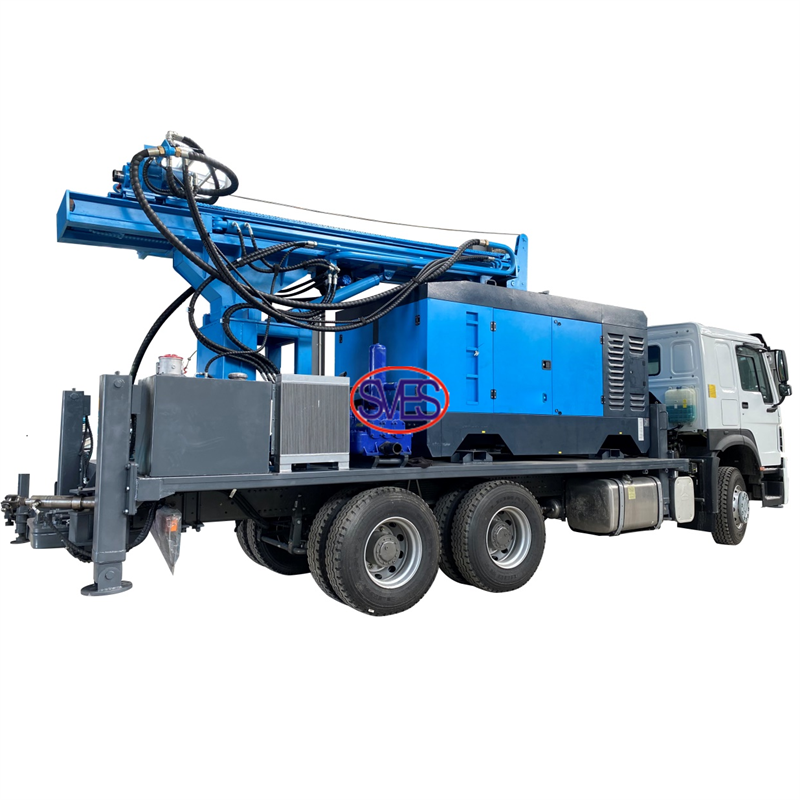

2. Truck-Mounted Water Drilling Rig

(1)SFYC280 and SFYC350 Type：

Multi-functional truck mounted top head drilling rigwith the air compressor,mud pump are on the same truck chassis.Drillingtechnology can be mud positive circulation, DTH-hammer, air lift reversecirculation,Mud DTH-hammer.

Features：

(A).The rig is equipped with high-power hydraulic motor, hydraulic boom, DTH hammerd illing, and large flow mud pump, which can realize mud driling。

(B). SFYC type Multi function truck mounted water well riling rig is a new type, high efficiency and multi-function full hydraulic driig rig, which ismainly used for dirilig water wel, monitoring wells, geothermal alr-conditioning holes, grouting holes for hydropower cofferdams,anti-seepagegrouting holes for dams, groutig holes for foundation reinforcement, open-pit mining, anchoring, national defense engineering and other deep holedrilling processes.

(C). The mud pump and air compressor are all on the same car chassis, which is convenient and efficient, and the overall erformance is higher thanother types of drilling rigs. Rigs Drilling Depth to 500 meter and above are with foam pump.According to customers' requirements, independent diesel engine can be equipped as drilling power.customers' requirements, independent dieseengine can be equipped.

Specification：

(2) SFYC450 Type or above:

Features:

(A)The water and gas dual-purpose multi-function drilling rig can use mud drilling or air compressor for drilling.

(B)Equipped with large lifting force hydraulic main hoist, stepless speed regulation hoisting, which can realize fast rope release. When lifting heavy objects, move slowly so as not to damage the rig turntable and wellhead plate during the lifting process. When lowering a single drill pipe, operating the quick release handle can achieve the same rapid lowering as a mechanical crane.

(C)The hydraulic tool hoist has the characteristics of large lifting force and fast lifting speed, which is convenient for the loading and transportation of tools, drill pipes, accessories, etc. It can also slide up and down with the help of ground anchors during drilling, so it is very convenient to load and unload the drill pipe

(D)The drilling rig is equipped with an auxiliary rod unloading cylinder, which is used to push the ratchet teeth of the turntable, remove the first thread of the drill rod joint, and then reverse the unloading rod to the turntable to prevent the impact force from damaging the rig gearbox.

(E)The rig is equipped with 4 hydraulic outriggers and 2 mechanical outriggers. The piston rod of each hydraulic outrigger cylinder is threaded and fitted with a lock nut. After the rig is leveled, the cylinder can be locked with the lock nut. This way, even if the cylinder blows out, the chassis doesn't become unstable.

(F)The drilling method of the drilling rig adopts advanced hydraulic cylinder feeding design, stepless speed regulation and lifting, and automatic drilling technology can be realized when drilling. It automatically pressurizes the hole under the weight of the drill pipe. The drilling speed can be adjusted according to different geological conditions.

Specification:

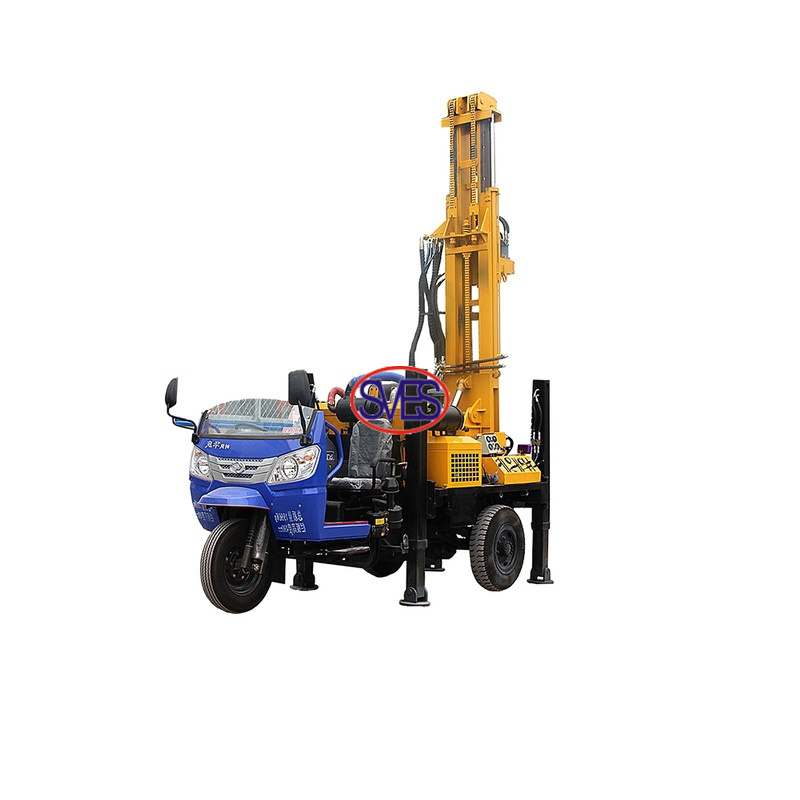

3. Water and gas dual-purpose vehicle-mounted (tricycle) 200 meters deep water drilling

Features:

(A). Equipped with a 65KW Yuchai brand turbocharged engine with strong power;

(B). Patented design compound boom, double cylinder lifting;

(C). Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder;

(D). It has high flexibility, is sturdy and durable, has little damage to the road surface, and is easy to move;

(E). Parallel transmission design, independent oil pump, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost.

(F). The whole machine uses a three-wheeled tractor with high horsepower and low torque, which can cope with more complex road conditions and is easy to move.

(G). Dual systems can be added: 1. Air power system with air compressor 2. Mud pump system with mud pump

Specification：

Surface Core Drilling Rig

Large core samples, a gear driven rotation unit and a constant penetration rate allow the Christensen Type Surface Core Drilling Rig to boost the productivity and profits. It meets tough environmental protection demands.
