Logging Wireline Pressure Control Equipment

Pump-in Sub

Product Description

The whole set of Wireline Pressure Control Equipment mainly comprises wireline grease injection control head, hydraulic control tool catcher, lubricator, hydraulic control tool trap, bleed-off sub, hydraulic control double-ram BOP, pump-in sub, hydraulic ball valve ,crossover sub, hydraulic control and grease injection pressure control system, all kinds of pipes and other components.

Wellhead Wireline Pressure Control Equipment is used for testing and paraffin treatment in flowing oil well, gas well, water injection well and coalbed methane testing. The unit supplies buffer and transitional area for string running with pressure to hole, could satisfy the wellhead seal requirement and there is no overflow. Simple operating, safe and reliable function.

Product Parameter


2 9/16" 5000psi logging wireline control equipment

2 9/16" 10000psi logging wireline control equipment

3"- 3 1/8" 5000psi logging wireline control equipment

3"- 3 1/8" 10000psi logging wireline control equipment

3"- 3 1/8" 15000psi logging wireline control equipment

4"- 4 1/16" 5000psi logging wireline control equipment

4"- 4 1/16" 10000psi logging wireline control equipment

4"- 4 1/16" 15000psi logging wireline control equipment


Model
   Working
Pressure
 (Psi)
Lubricator
ID
(mm)
   Cable ID   (mm)
Sealing
   Mode


     Service    Conditions
   Working
Temperature

SVDLFP6-35
              5000  62(65)                                                      Φ5.6/
Φ8/
Φ11.8/      Φ12.71
                                Grease
Injection
Sealing      +
Rubber
Element
Sealing
  +
Seal
Stuffing
                                          Water,
Crude Oil,
Natural Gas with H2S,     CO2


                                                                                                T-20                (-29℃~+12℃)


SVDLFP6-7010000
SVDLFP7-355000                     76(78)
SVDLFP7-7010000
SVDLFP7-10515000
SVDLFP8-35500089
SVDLFP10-355000  102(103)
SVDLFP10-7010000
SVDLFP10-10515000

1.Logging Grease Injection Control Head

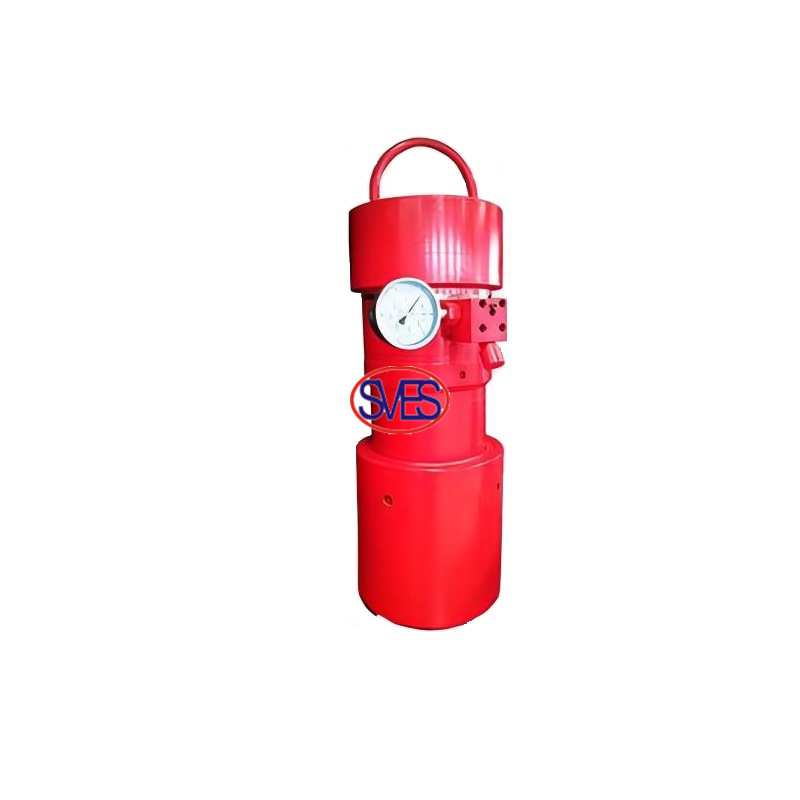

Quick test sub

By injecting high-pressure high-viscosity sealing grease to accomplish the static and dynamic seal the cable wellhead.

A grease injection hole, a grease return hole, a gland hydraulic control hole and an overflow hole are arranged on the wireline grease injection control head, and six choke tubes are mounted in the main body. High-pressure high-viscosity sealing grease is injected in the clearance between the inner wall of the choke tube and cables through the lower grease injection hole, sealing grease is also filled in the clearance between the outer layer of the cable and a steel-wire armored layer. Since the clearance between the cable and the inner wall of the choke tube is very small, and the viscosity of sealing grease is very high, this can play the function of effectively sealing pressure fluid flow in wells or preventing air current from flowing upside. When high pressure sealing grease reaches the upper grease return hole through the clearance between the inner wall of a longer choke tube and a cable, the loss of resistance force leads the pressure of sealing grease to be zero almost, and the grease return hole plays the function of making sealing grease flow back and return.

Product Specification

Model



Working Pressure (MPa)



Cable ID

 (mm)

Working Environment



Connection Manner Of Lower End

SVFPY5.6-10

10

5.6

IH2S/STD

2" - 6SA



SVFPY5.6-2I

21

5.6

2" - 6SA

SVFPY5.6-35

35

5.6

4 1/4 " -6SA

SVFPY8.0-35

35

8.0

4 1/4 " ~6SA

SVFPY11.8-35

35

5.6

4 1/4 " -6SA

SVFPY5.6-70

70

11.8

7 3/4 " -4ACME

SVFPY8.0-70

70

8.0

7 3/4 " -4ACME

FPY 11.8-70

70

11.8

7 3/4" -4/\CME

FPY5.6-105

105

5.6

7 3/4 " -4ACME

FPY 11.8-105

105

11.8

7.3/4 " -4ACME

NOTE : 1 .There are Bowen and Otis quick union for all threaded selective.

            2.Additional size available on request.

2. Hydraulic control tool catcher

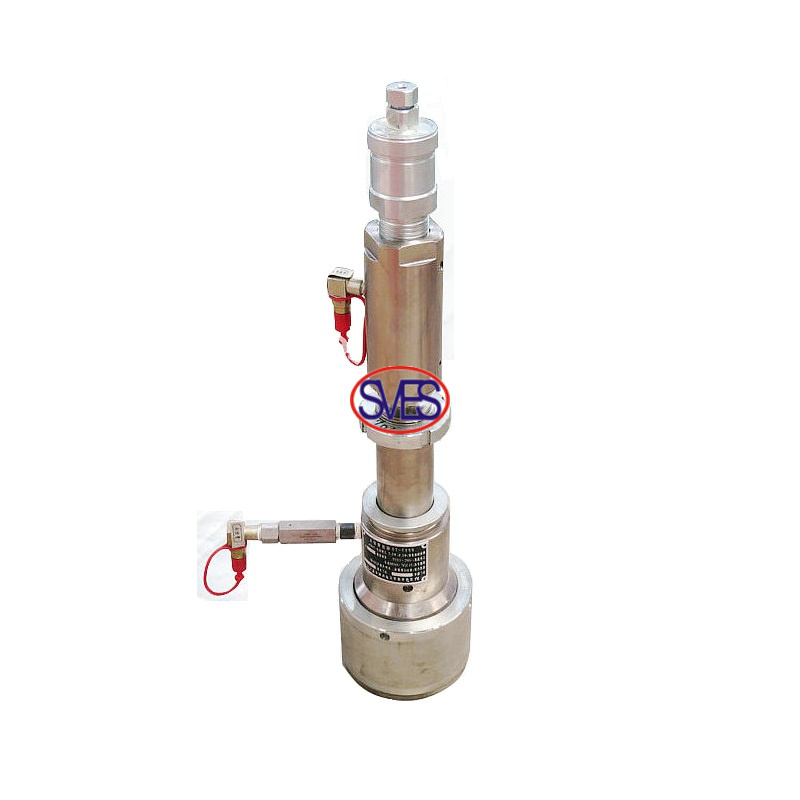

Wireline Grease Injection Control head

The hydraulic control tool catcher is a safety device, which is mounted on the lower portion of the seal head and on the upper portion of the lubricator string, it is mainly used for automatically grasping rope socket when tools are connected underground and are lifted to the top end of the lubricator, thereby effectively preventing cables from falling off the cable head or instruments drop in wells when the cable is broken when the cable head is impacted on the top end of the BOP because of very fast pulling speed or over big pull force. When a cable rope socket is released, the hydraulic control and grease injection pressure control system is used for pressurizing (operation pressure is no larger than 21MPa) to lead hydraulic force to push the piston in the catcher, the piston drives a robotic gripper which is opened, and then, the rope socket can be automatically released. When the cable rope socket is released, the hydraulic control system is used for pressurizing (maximum hydraulic control pressure should be no larger than 21 Mpa.) to lead hydraulic force to push the piston in the catcher, the piston drives the robotic gripper to go upwards, the robotic gripper is braced up by the core sleeve, and then the rope socket can be released. The upper portion of the tool catcher is also provided with a ball valve device, which is also served as the blocking ball valve on the lower portion of the seal head.

The hydraulic control tool catcher is a safety device, which installed between the grease injection head and the lubricator, is mainly composed of the choke flow ball valve, body case, core retainer plate, piston, mechanical gripper, joints, hydraulic port and union nut and so on。

Product Specification

Model

Working Pressure (MPa)

Lower end of lubricator ID (mm)

Lower end of connection manner

Type of Control

Working environment

SVSBZ6-35

35

62(65)

4 1/4"-6SA



SVSBZ7-35

35

76(78)

5"-4ACME



SVSBZ6-70

70

62(65)

4 3/4"-4ACME



SVSBZ7-70

70

76(78)

5 3/4"-4ACME

Manual/ Hydraulic

h2s/std

SVSBZ7-105

105

76(78)

7"-5ACME


SVSBZ10-35

35

103

7"-5ACME



SVSBZ10-70

70

103

8 3/8-4ACME



SVSBZ10-105

105

103

9 1/2-4ACME



3. Compact Wireline Valve, Hydraulic Wireline Ram BOP

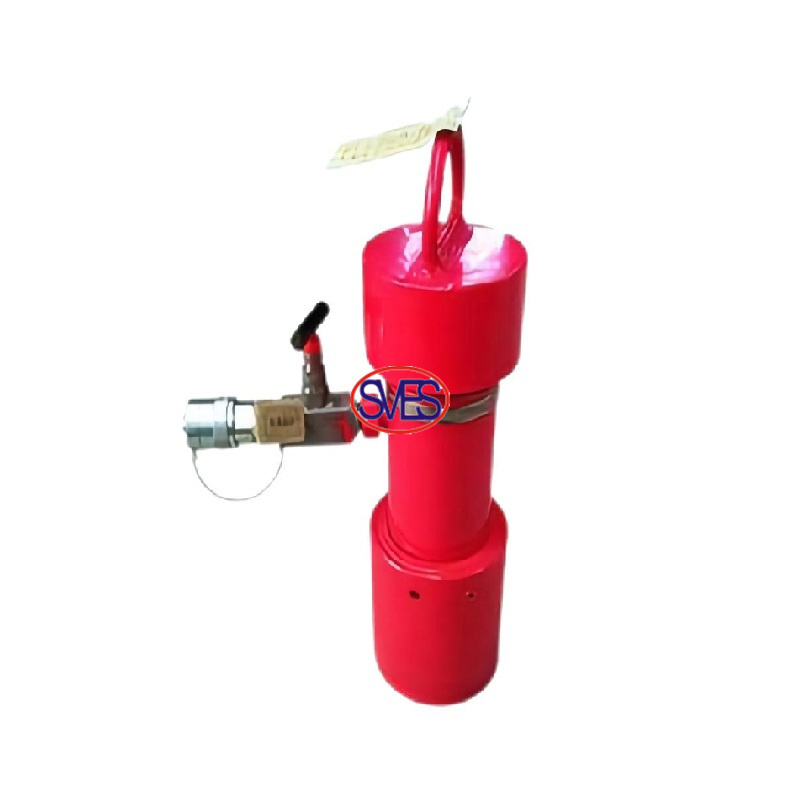

Pump-in Sub

The BOP is used for sealing the wellhead to prevent well blowout accidents in logging operation when there are accidents and there are cables in the well. The BOP has simple structure, convenient application and maintenance, small volume, light weight, high pressure bearing, hydraulic remote control and simple and reliable operation.

The BOP is mainly composed of main casing, and ram assembly piston, hydraulic cylinder, lead screw, end cap, hand wheel and other spare parts, which are moving in the main casing in opposite direction. When the well needs to be sealed, the hydraulic control and grease injection pressure control system is pressurized to push the piston, thereby leading the two ram bodies to move towards the center of the well bore, and well sealing can be achieved through the associative action of the front rubber sealing element and the top sealing rubber. The ram can be locked on the shut-in position through clockwise rotating the locking hand wheel. What be specially noticed is that before the well is opened, the locking hand wheel must be anticlockwise rotated, the hydraulic control system can be used for pressurizing after the hand wheel is totally receded to the initial position, the piston is hydraulically pushed to led the two rams to rearwards move, and then, the well can be opened. It should be guaranteed to open the full i.d. to prevent the instruments and the ram from colliding when the well is opened.

A grease injection hole is increased between the rams on two sides of the BOP. When the cable is sealed, there is a groove formed by steel wire spiral on the outer side of the cable because of the structure of the cable itself, if rubber pieces are directly used for sealing, the sealing effect is imperfect commonly, and minor leakage generated along the cable can be blocked through injecting high-pressure and high-viscosity sealing grease between the rams on two sides.

Product Specification

Model



ID npOX  (mm)

Working Pressure

(Mpa)

Operation Manner

Type of Ram

Connection Manner

Working Environment

Cable ID  (mm)

SVSFZ3-10

30

10

M

S

2"-6SA



SVSFZ3-21

30

21

M

S

2 6SA



SVSFZ5-21

52

21

M

S

3 1/2"-6SA



SVSFZ6-35

62(65)

35

M

S

4 1/4--6SA



SV2FZ6-70

62(65)

70

H

D

4 3/4"-4ACME



SV3FZ6-70

62(65)

70

H

T

4 3/4"-4ACME



SVSFZ7-35

76(78)

35

M

S

5"-5ACME


5.6mm

SV2FZ7.35

76(78)

70

H

D

5"-5ACME

H2S/STD

8.0mm

SV2FZ7-70

76(78)

70

H

D

5 3/4"-4ACME


11.8mm

SV3FZ7-70

76(78)

70

H

T

5 3/4"-4ACME


1277 mm

SV3FZ7-I05

76(78)

105

H

T

7"-5ACME



2FZ8-35

89

35

H

D

6"-4ACME



2FZ10-35

102 (103)

35

H

D

7"-5ACME



2FZ10-70

102 (103)

70

H

D

8 3/8"-4ACME



3FZ10-105

102 (103)

105

H

T

9 1/2"-4ACME

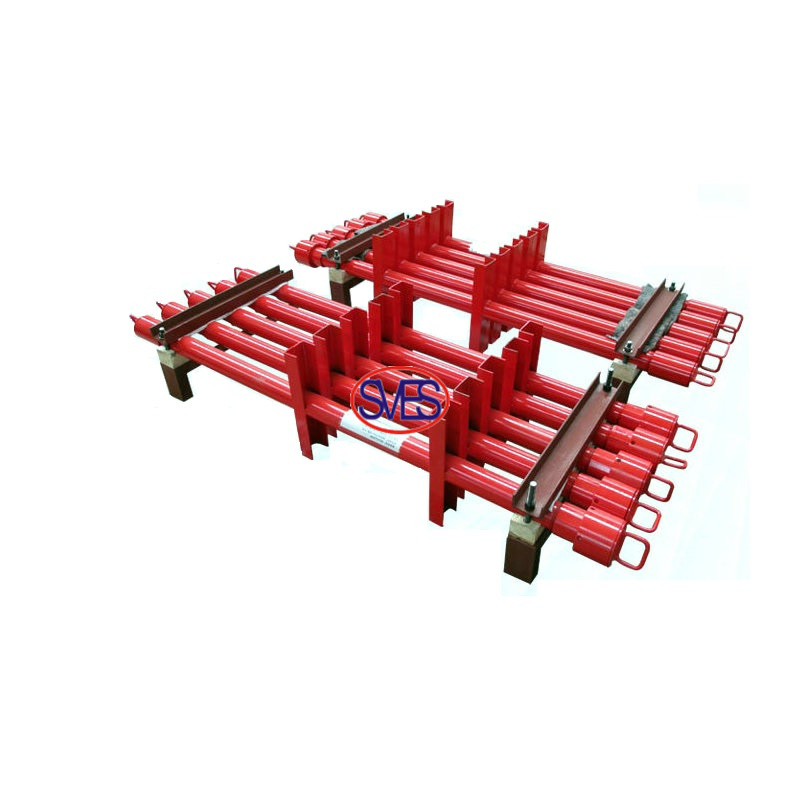

3.Logging WPCE Lubricator

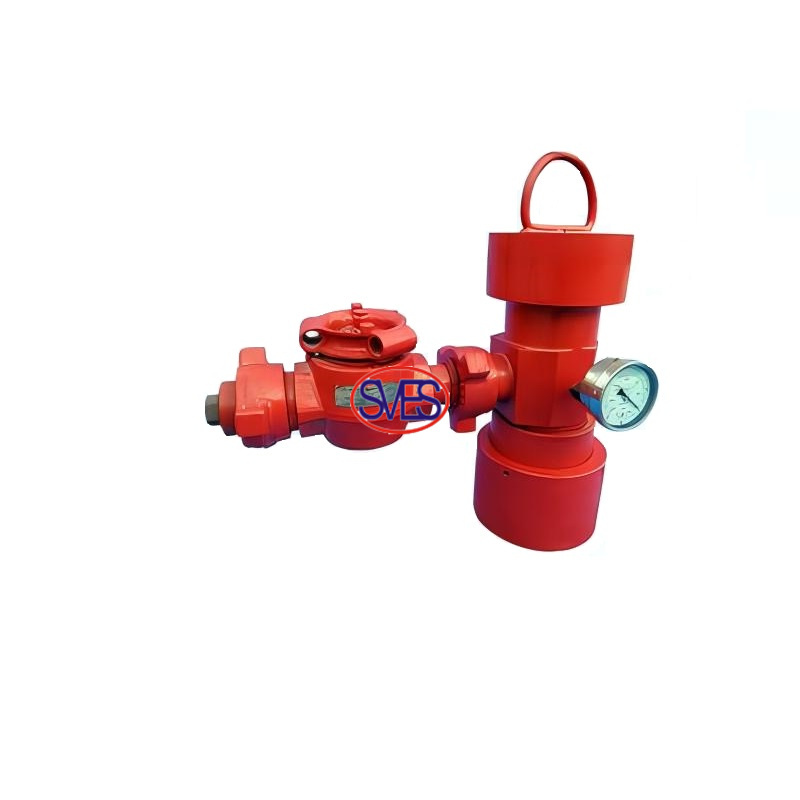

Quick test sub

The lubricator supplies a pressure buffer area for the tool strings which are fed to wells and a transition area for instruments to pass through, and the lubricators can be connected in series to use according to field requirements.The total connection length of the lubricator has a relationship with the maximum length of the instrument strings, usually greater than the total length of the work instrument strings and leave allowance, the ID selection principle of lubricator is greater than the maximum OD of the instrument strings and leave allowance. The single length determined by convenient for the site operation, there are 1m, 1.5m, 2m, 2.5m, 3m and so on various of specifications to chose.

Products Specification

Model

Working Pressure

(Psi)

ID (mm)

Connection

Service Environment

Working Temperature

SVFPG6-35

5000

62(65)

4 1/4-6SA



SVFPG7-35

5000

76(78)

5-4ACME



SVFPG10-35

5000

103

7 3/4-5ACME



SVFPG6-70

10000

62(65)

4 3/4-4ACME



SVFPG7-70

10000

76(78)

5 3/4-4ACME

Crude oil,

T-20 (-29 °C

+ 121 ’C)

SVFPG 10-70

10000

103

8 3/8-4ACME

           Water.

 Natural gas

SVFPG7-105

15000

76(78)

7 3/4-4ACME

With H2S and CO2

SVFPG10-105

15000

103

9 1/2-4MACME



SVFPG6-70T

10000

62(65)

4 3/4-4ACME



SVFPG7-70T

10000

76(78)

5 3/4-4ACME



SVFPG10-70T

10000

103

8 3/8-4ACME



4.Hydraulic & Manual Tool Trap

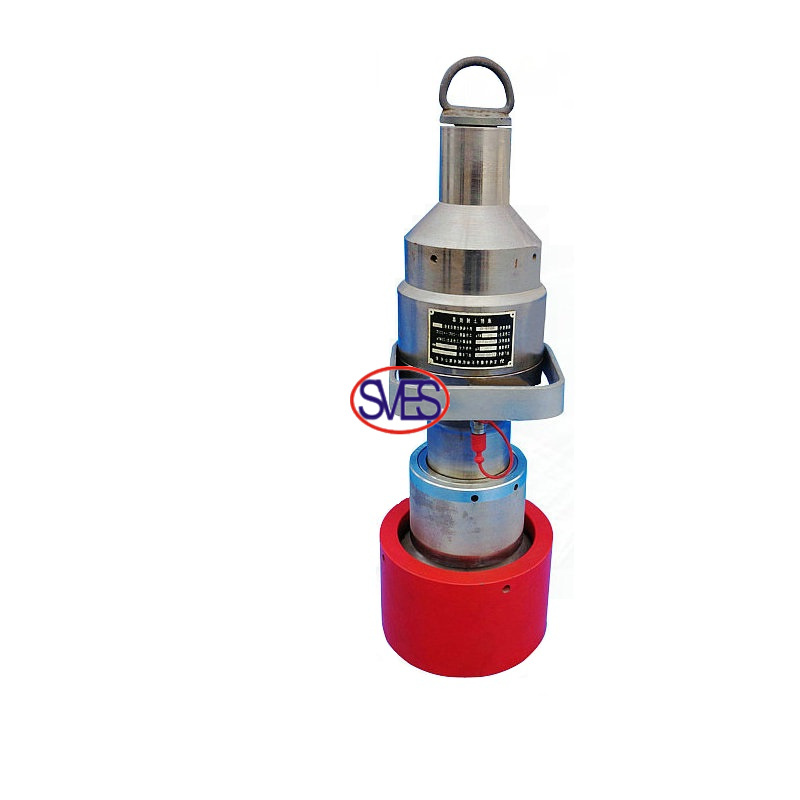

Wireline Grease Injection Control head

The tool trap is mainly used for preventing instruments from falling into the well because the cable is accidently stretched breaking or released after the instrument sting is lifted to the lubricator from the well. The tool trap is normally closed when it is stopped and is put into the well to work. When the whole set of the BOP is connected on the wellhead to work, firstly open the valve on the wellhead to make well liquid enter the lubricator, after the liquid is stable and the instrument string is uplifted for a certain distance, make the instruments leave off the shifting fork of the tool trap. The hydraulic control system is pressurized to lead the piston to push the operation arm to rotate along the rotary shaft, which leads the shifting fork mounted on the rotary shaft to be erected vertically, and then the shifting fork is totally opened, thereby opening the i.d. to put the instruments into the well. At this time, the cable is released down, the instrument string in the lubricator will enter the well successfully. After the instruments pass through the tool trap, hydraulic control pressure is not released, is automatically reset to the horizontal position by spring force. After the instrument string passes through the trap, if pressure for controlling the trap in the hydraulic control and grease injection pressure control system is released, the shifting fork will be automatically reset to the original horizontal position, namely the shifting fork is closed. When the instrument strip is upwards lifted, after the instrument strip is lifted to the tool trap from the well, the rope socket for connecting the instrument string will jack the shifting fork and enter the lubricator, when the instrument string is upwards lifted to leave the tool trap, the shifting fork will be automatically reset to the horizontal status, thereby preventing instruments from falling into well after the cable is stretched breaking accidently or released.


When the tool strings pulled up and forced open the shift fork which in the state of level in the tool trap and after enter into the lubricator, the shift fork reset to level state automatically, block the tool strings inside the lubricator, to prevent accidentally fall into well.


Products Specification


Model

Working Pressure (MPa)

Lower end of lubricator ID (mm)

Lower end of connection manner

Type of Control

Working environment

SVXBZ6-35

35

62(65)

4 1/4"-6SA



SVXBZ7-35

35

76(78)

5MACME



SVXBZ6-70

70

62(65)

4 3/4"_4ACME



SVXBZ7-70

70

76(78)

5 3/4"-4ACME

Manual/ Hydraulic

H2S/STD

SVXBZ7-105

105

76(78)

7"-5ACME



SVXBZ10-70

70

102(103)

8 3/8"-4ACME



SVXBZ10-105

105

102(103)

9 1/2MACME




 Horizontal Well Cable Pumping Bridge Plug Fracturing  and Perforation WPCE

During perforation and fracturing operation of the horizontal well, the major function of the wireline pressure control equipment is the fracturing truck hydraulically pumping the perforating gun and the bridge plug into the downhole horizontal segment pre-calculated position after perforation don't blow off,upward pull the wireline and perforating gun, after complete one section, change gun and shot, under pressure running in a new horizontal segment again, in such a continuous perforation but don't blow off cyclic process, dynamic and static to seal the wellhead, control the wellhead pressure, providing pressure buffer zone and transition area to the bridge plug and the perforating gun string. At the same time, it can make sure the wellhead is closed when there are accidental conditions on the wellhead during operation, thereby preventing gas blowout accidents.


Product Parameter

Model
   Working
Pressure
 (Psi)
Lubricator
ID
(mm)
   Cable ID   (mm)
Sealing
   Mode


     Service    Conditions
   Working
Temperature

SVDLFP6-35
              5000  62(65)                                                            Φ5.6/
Φ8/
Φ11.8/        Φ12.71
                                Grease
Injection
Sealing      +
Rubber
Element
Sealing
  +
Seal
Stuffing
                                          Water,
Crude Oil,
Natural Gas with H2S,     CO2


                                                                                                T-20                (-29℃~+12℃)


SVDLFP6-7010000
SVDLFP7-355000                     76(78)
SVDLFP7-7010000
SVDLFP7-10515000
SVDLFP8-35500089
SVDLFP10-355000  102(103)
SVDLFP10-7010000
SVDLFP10-10515000

Wireline grease injection control head

Stuffing box

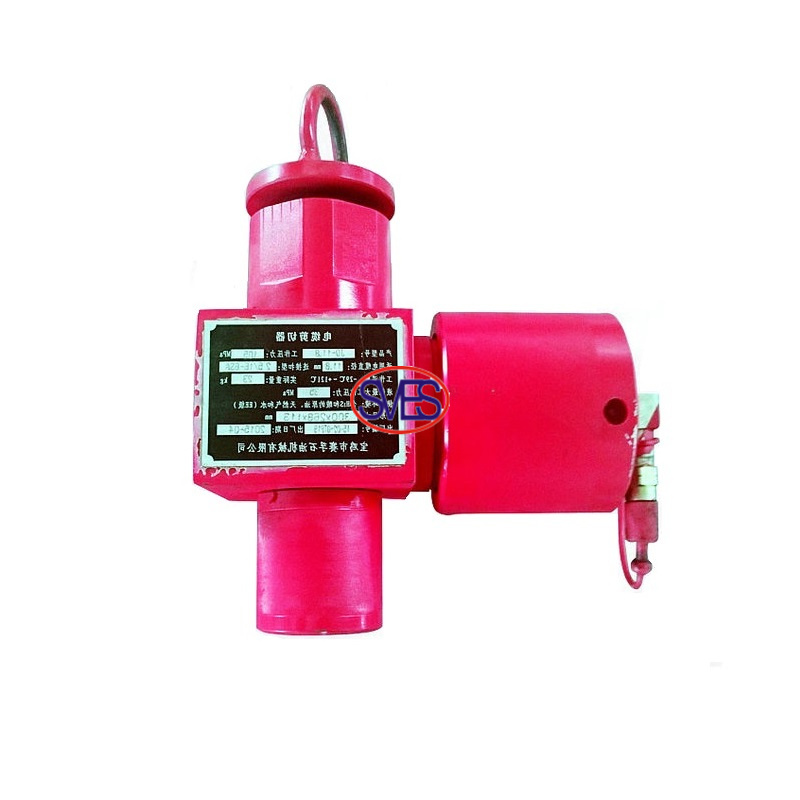

Cable cutter sub

Wireline cutter

Combination Hydraulic Wireline Tool Catcher

Hydraulic Triple Ram Wireline BOP

Compact Wireline Valve

Dual Ram Wireline BOP

Large Bore Wireline Lubricator

Large Bore Hydraulic Control Tool Trap

Quick Test Sub (QTS)

Quick Pressure Test Adapter

Pump in Sub

T Joint

Wellhead Adapter Flange

Wellhead Crossover Flange

Grease Injection & Hydraulic Control System

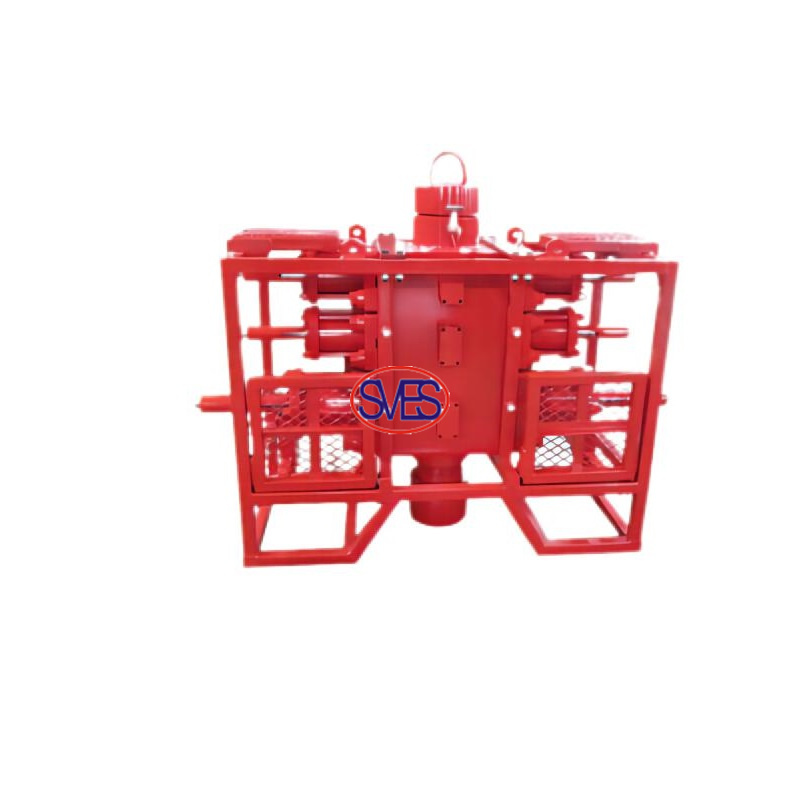

BOP Cage and Working Platforms

Lifting Tools

Top and Botom Sheave

Hay pully

Dolly

BOP transport Trailer

Transport Skid

4.5“-4.75”5000psi Electric line, wireline pressure control equipment

4.5“-4.75”10000psi Electric line, wireline pressure control equipment

4.5“-4.75”15000psi Electric line, wireline pressure control equipment

5"-5 1/8”5000psi Electric line, wireline pressure control equipment

5"-5 1/8”10000psi Electric line, wireline pressure control equipment

5"-5 1/8”15000psi Electric line, wireline pressure control equipment

5.5”5000psi Electric line, wireline pressure control equipment

5.5”10000psi Electric line, wireline pressure control equipment

5.5”15000psi Electric line, wireline pressure control equipment

6 3/8”5000psi Electric line, wireline pressure control equipment

6 3/8”10000psi Electric line, wireline pressure control equipment

6 3/8”15000psi Electric line, wireline pressure control equipment

5"-5 1/8”5000psi Electric line, wireline pressure control equipment

5"-5 1/8”10000psi Electric line, wireline pressure control equipment

5"-5 1/8”15000psi Electric line, wireline pressure control equipment

7 1/16”5000psi Electric line, wireline pressure control equipment

7 1/16”10000psi Electric line, wireline pressure control equipment

Wellhead Wireline Pressure Control Equipment

Product Description

Wellhead Wireline Pressure Control Equipment is used for testing and paraffin treatment in flowing oil well,gaswell,  water injection well and coalbed methane testing. The unit supplies buffer and transitional area for string running with pressure to hole, could satisfy the wellhead seal requirement and there is no overflow. Simple operating, safe and reliable function.

Product  Details

Pump-in SubQuick test sub

Product Parameter


Model
   Working
Pressure
 (Psi)
Lubricator
ID
(mm)
   Cable ID   (mm)
Sealing
   Mode


     Service    Conditions
   Working
Temperature

SVDLFP6-35
              5000
  62(65)
                                                            Φ5.6/
Φ8/
Φ11.8/        Φ12.71
                                Grease
Injection
Sealing      +
Rubber
Element
Sealing
  +
Seal
Stuffing
                                          Water,
Crude Oil,
Natural Gas with H2S,     CO2


                                                                                                T-20                (-29℃~+12℃)


SVDLFP6-70
10000
SVDLFP7-35
5000
                     76(78)
SVDLFP7-70
10000
SVDLFP7-105
15000
SVDLFP8-35
5000
89
SVDLFP10-35
5000
  102(103)
SVDLFP10-70
10000
SVDLFP10-105
15000

Size and specification:

Wireline Diameter:                       OD5.6mm-12.8mm

Lubricator ID:                                  4.5"-7 1/16"

Working pressure:                           5000psi to 15000psi

Intensity test pressure:                     7500psi -22500psi

Connecting manner of lubricator:   9 5/8"-4ACME Union connection

Length of lubricator:                        1m,1.5m,2m, 3m

Ram Form of BOP:                           Semi-closed wireline ram, blind ram or shear ram,

                                                         between the two wireline rams can inject the grease

Wellhead connection type:              Union, crossover, flange connection

Service environment:                        Water, crude oil and nature gas with H2S

Working temperature:                       T20(-29℃ to+121℃)

4.5“-4.75”5000psi Electric line, wireline pressure control equipment

4.5“-4.75”10000psi Electric line, wireline pressure control equipment

4.5“-4.75”15000psi Electric line, wireline pressure control equipment

5"-5 1/8”5000psi Electric line, wireline pressure control equipment

5"-5 1/8”10000psi Electric line, wireline pressure control equipment

5"-5 1/8”15000psi Electric line, wireline pressure control equipment

5.5”5000psi Electric line, wireline pressure control equipment

5.5”10000psi Electric line, wireline pressure control equipment

5.5”15000psi Electric line, wireline pressure control equipment

6 3/8”5000psi Electric line, wireline pressure control equipment

6 3/8”10000psi Electric line, wireline pressure control equipment

6 3/8”15000psi Electric line, wireline pressure control equipment

5"-5 1/8”5000psi Electric line, wireline pressure control equipment

5"-5 1/8”10000psi Electric line, wireline pressure control equipment

5"-5 1/8”15000psi Electric line, wireline pressure control equipment

7 1/16”5000psi Electric line, wireline pressure control equipment

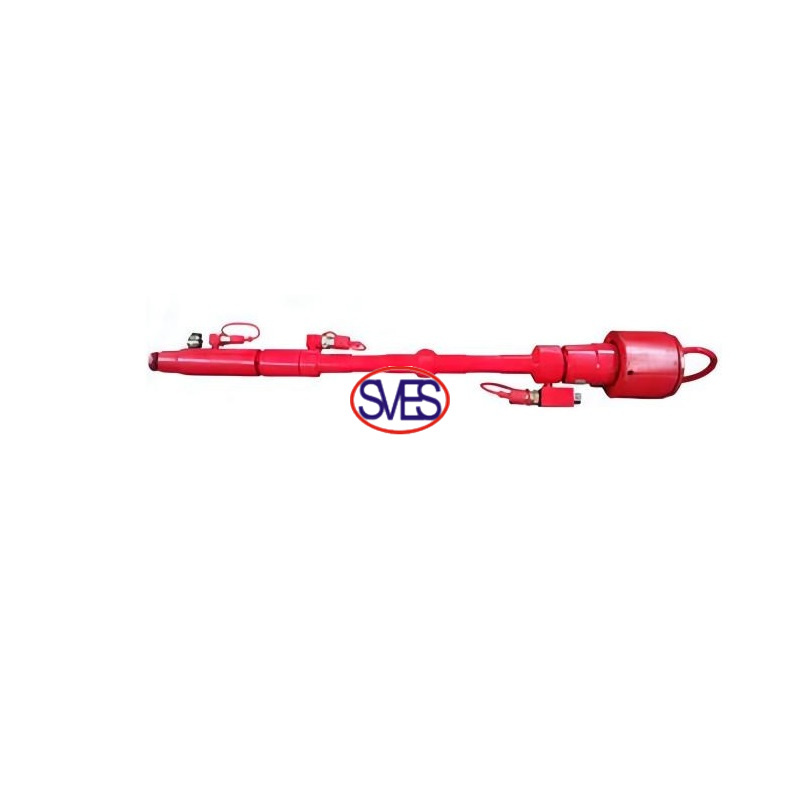

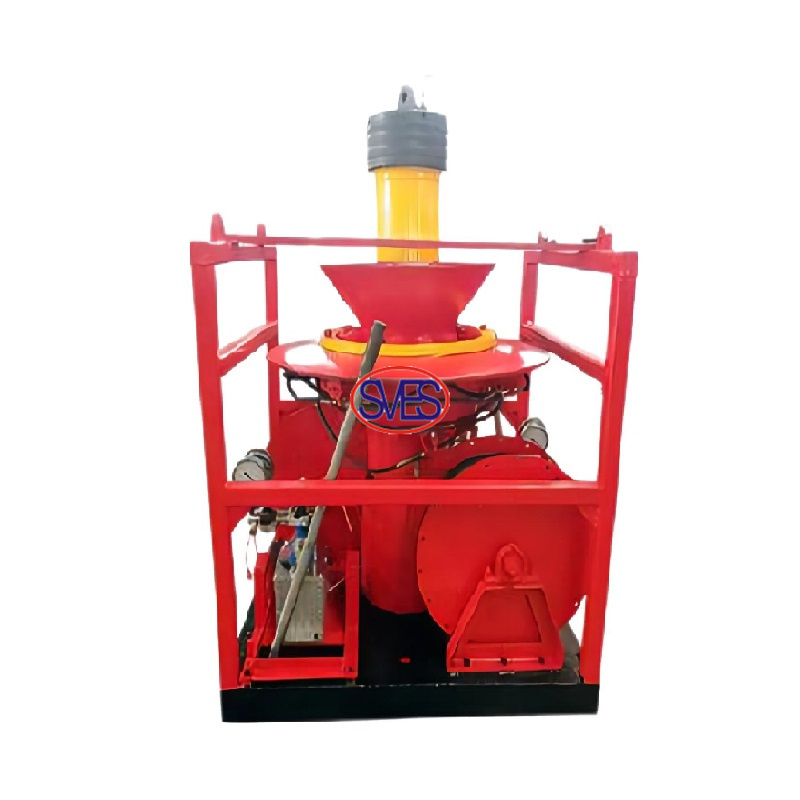

7 1/16”10000psi Electric line, wireline pressure control equipment








For a better browsing experience, we recommend that you use Chrome, Firefox, Safari and Edge browsers.
