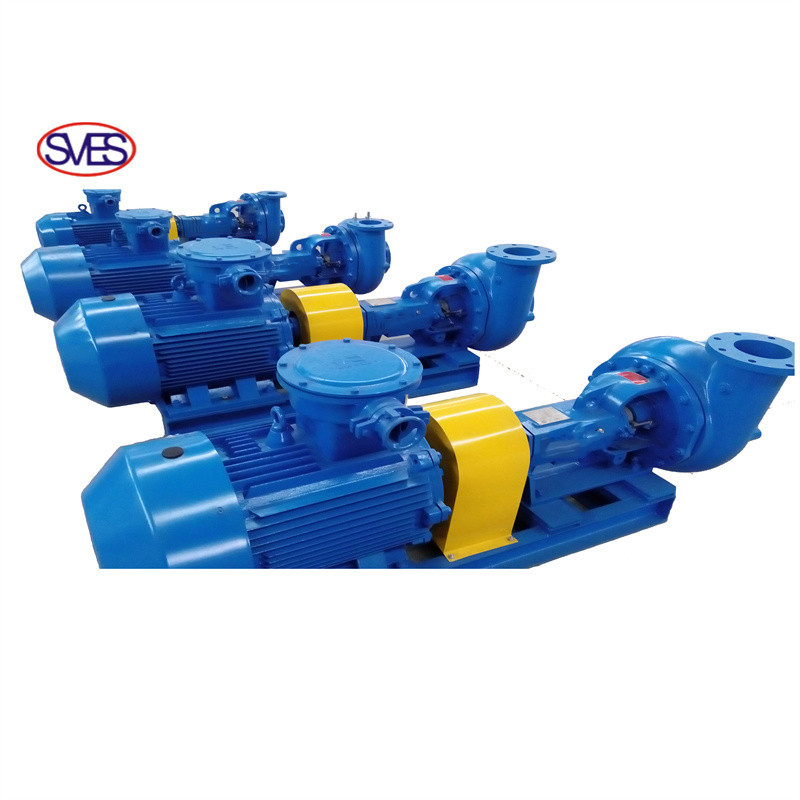

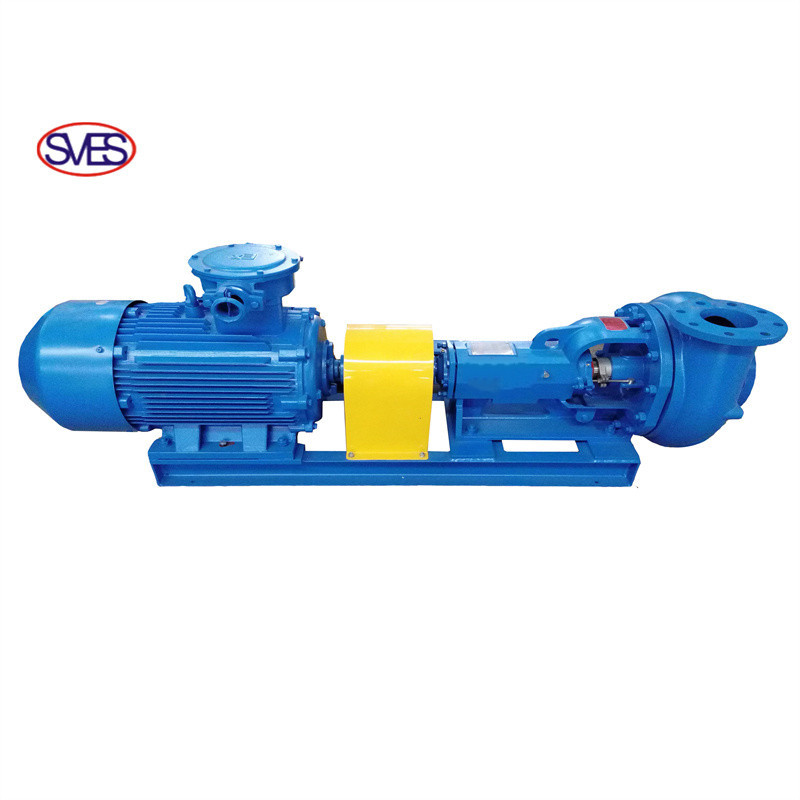

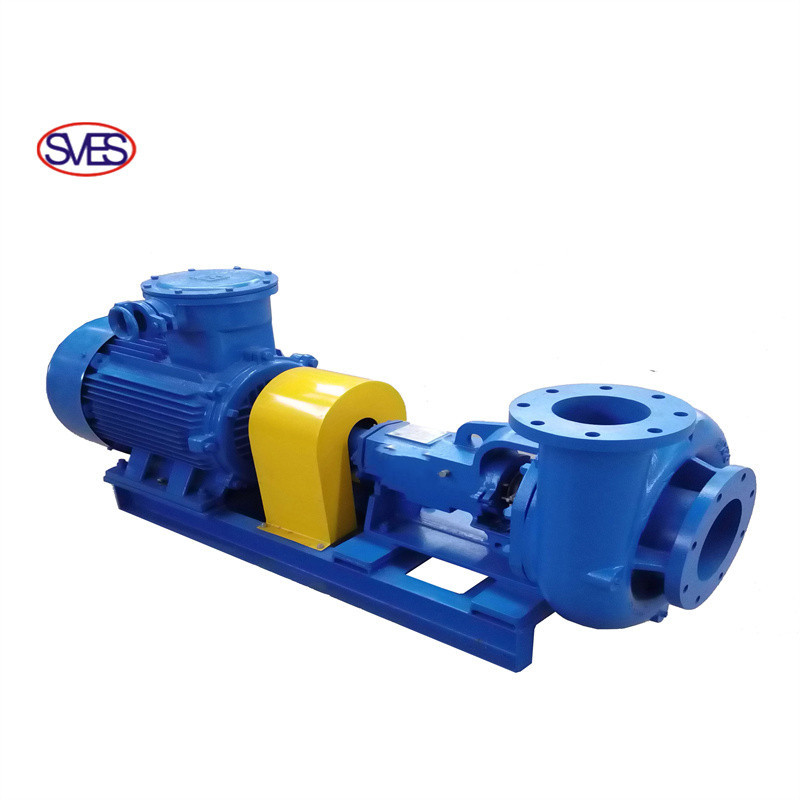

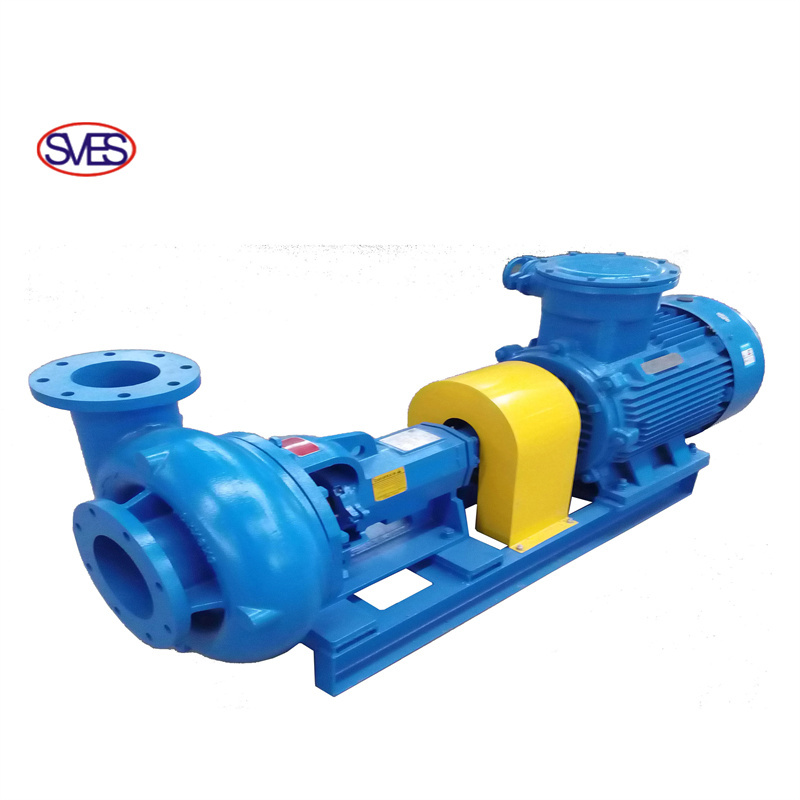

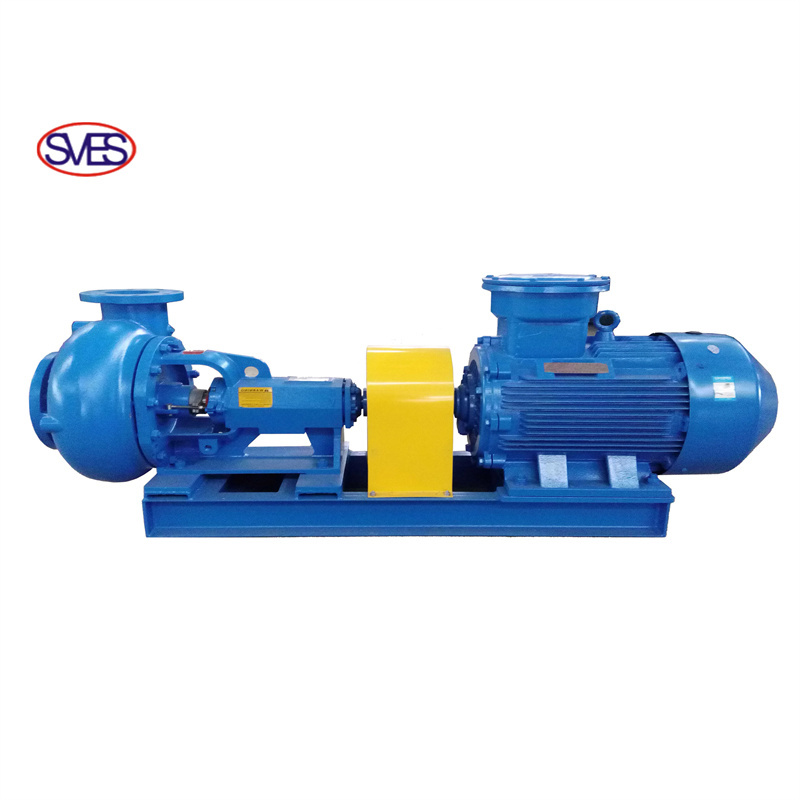

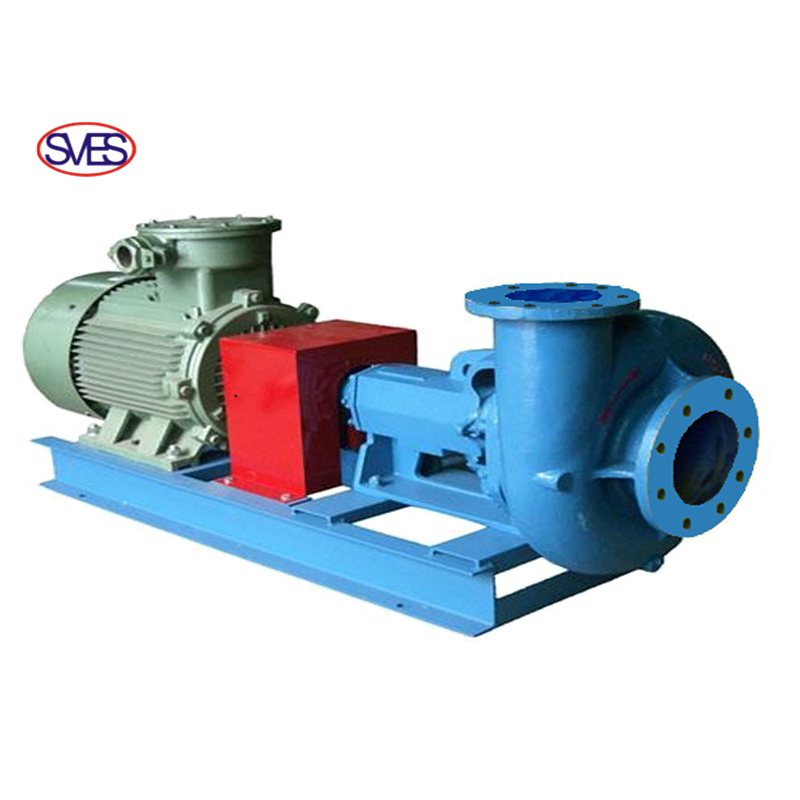

Centrifugal Pump
Get the latest price? We'll respond as soon as possible(within 12 hours)
SB series centrifugal pump is ideal motivity supply for desander, desilter, and jet mud mixer. It can be assistant pump of mud pump to be well head feeding pump. The specifications designation takes matched equipments in consideration, to make sure all equipments can work best, almost parts can be replaced, the pump is easy to be maintained, little bearing coupling leakage, reliable working operation, long use life, etc.
| Model | Flow | Lift | Power | Speed | Efficiency |
| SB8×6-13 | 290m³/h | 33m | 55Kw | 1450r/min | 64% |
| SB6×5-12 | 196 m³/h | 48m | 1750r/min | 61% | |
| SB8×6-14 | 320m³/h | 40m | 75Kw | 1450r/min | 65% |
| SB8×6-12 | 335m³/h | 43m | 1750r/min | 66% | |
| SB6×5-13 | 180m³/h | 34m | 45Kw | 1450r/min | 60% |
| SB5×4-14 | 149 m³/h | 61m | 1750r/min | 58% | |
| SB6×5-12 | 160m³/h | 30m | 37Kw | 1450r/min | 60% |
| SB5×4-12 | 120m³/h | 40m | 1750r/min | 56% | |
| SB6×5-11 | 200m³/h | 21m | 30Kw | 1450r/min | 62% |
| SB5×4-11 | 112m³/h | 45m | 1750r/min | 58% | |
| SB5×4-12 | 90m³/h | 30m | 22Kw | 1450r/min | 56% |
| SB5×4-10 | 105m³/h | 30m | 1750r/min | 57% | |
| SB5×4-11 | 90m³/h | 24m | 18.5 Kw | 1450r/min | 56% |
| SB4×3-12 | 55m³/h | 46m | 1750r/min | 48% | |
| SB4×3-13 | 50m³/h | 40m | 15 Kw | 1450r/min | 48% |
| SB4×3-11 | 54m³/h | 45m | 1750r/min | 37% | |
| SB4×3-12 | 45m³/h | 30m | 11Kw | 1450r/min | 47% |
