Submersible Slurry Pump
Get the latest price? We'll respond as soon as possible(within 12 hours)

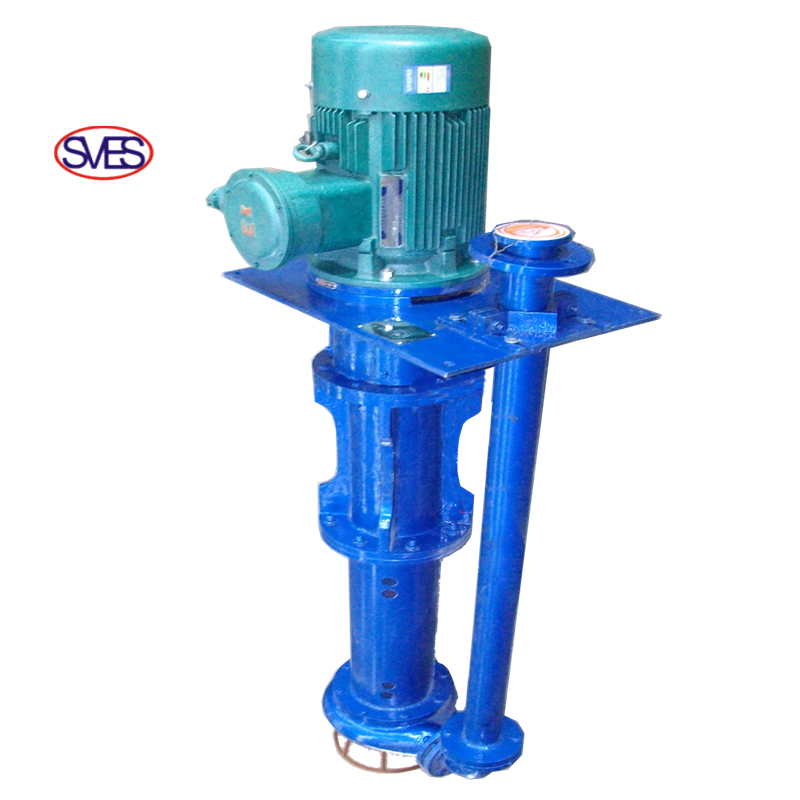

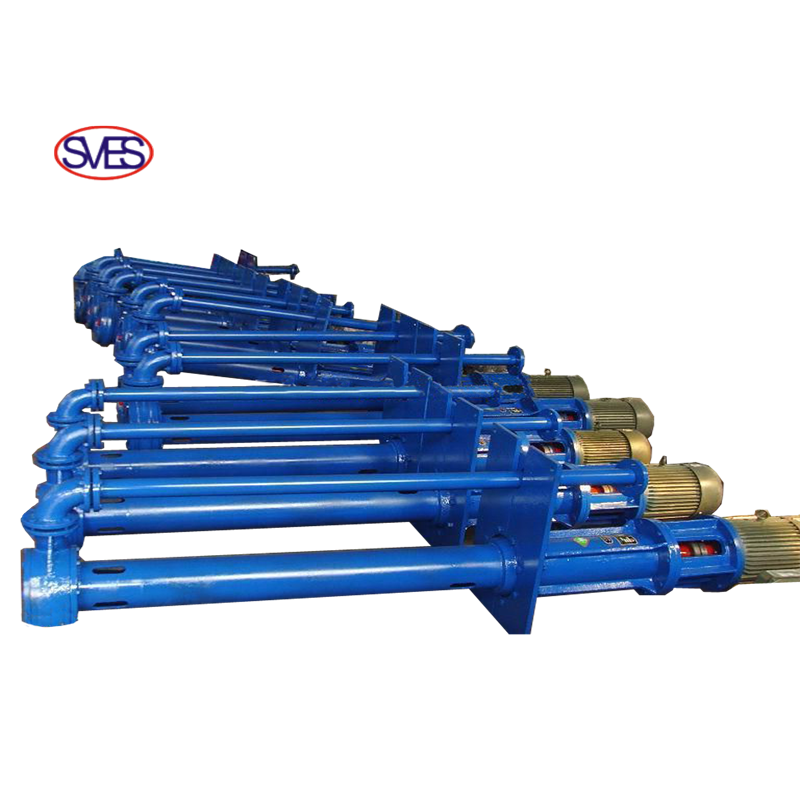

YZS series submersible slurry pump is with structure of vertical single stage and single suction overhung centrifugal pump, it is made of abrasion-resistant alloy, it can convey medium with high concentration particles. There is no bearing and gland seal Seal between impeller and pump body, so it is maintenance-free and high temperature resistant, it is ideal equipment to provide impetus for desander, desilter and centrifuge.
| Model | m³/h | m | Kw | r/min | % |
| 50YZS40-10 | 40 | 10.5 | 4 | 1450 | 47 |
| 50YZS20-18 | 20 | 18 | 3 | 1450 | 42 |
| 50YZS50-12 | 60 | 10.8 | 5.5 | 1450 | 55 |
| 80YZS50-20 | 60 | 18 | 7.5 | 1450 | 48 |
| 80YZS80-20B | 80 | 13.4 | 7.5 | 1450 | 51 |
| 80YZS80-20A | 90 | 15 | 11 | 1450 | 51 |
| 100YZS100-30A | 110 | 24 | 18.5 | 1450 | 54 |
| 100YZS100-30 | 100 | 31 | 22 | 1450 | 54 |
| 120 | 28 | 1450 | 56 | ||
| 100YZS160-38B | 164 | 26 | 30 | 1450 | 50 |
| 150YZS250-40B | 240 | 24 | 37 | 1450 | 50 |
| 150YZS250-40A | 270 | 30 | 45 | 1450 | 51 |
