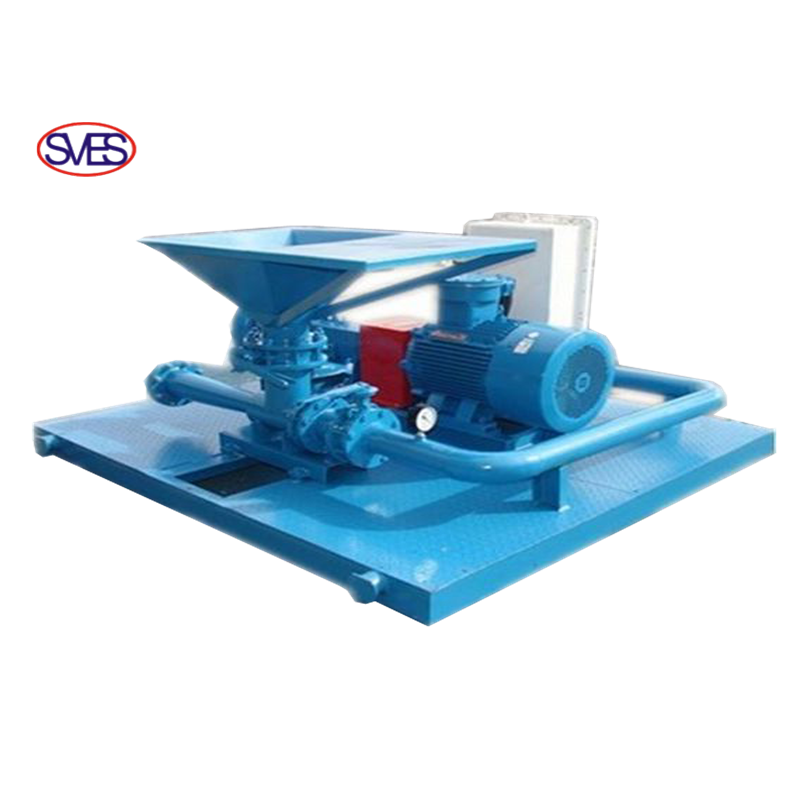

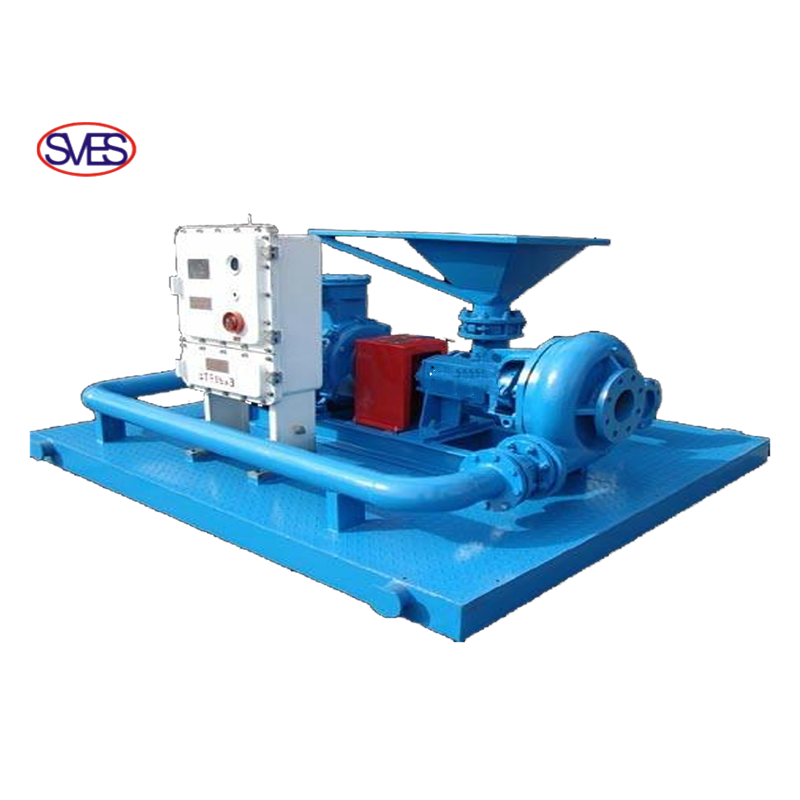

Jet Mud Mixer

Jet  Mud  Mixer

Jet mud mixer matched with well drilling solids control equipments, mainly used in weighting drilling mud, changing the density, viscosity, water lose, etc. if it is used with shearing pump together, the effect will be more excellent, it can be designed double jet mud mixer according to customers’ requirements.

Jet Mud Mixer

ModelSLH150-50SLH150-40SLH150-35SLH100
Matching PumpSB8×6-13SB6×5-13SB5×4-13SB4×3-11
Power55Kw45Kw30Kw15Kw
Capacity2400m³/h1800m³/h1200m³/h600m³/h
Pressure0.25~0.40Mpa0.25~0.40Mpa0.25~0.40Mpa0.25~0.40Mpa
Inlet150mm150mm150mm100mm
Nozzle Caliber50mm40mm35mm30mm
Burden Speed≤100kg/min≤80kg/min≤60kg/min≤40kg/min
Density≤2.8g/cm³≤2.4g/cm³≤2.0g/cm³≤1.5g/cm³
Viscosity≤120s≤120s≤80s≤60s
Hopper Diameter750×750mm750×750mm600×600mm500×500mm
