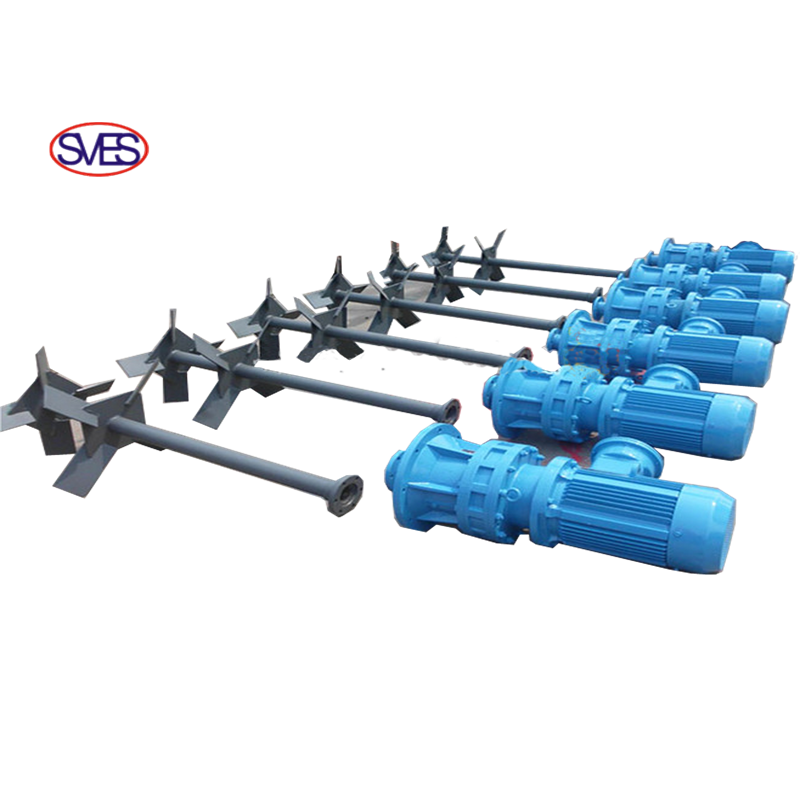

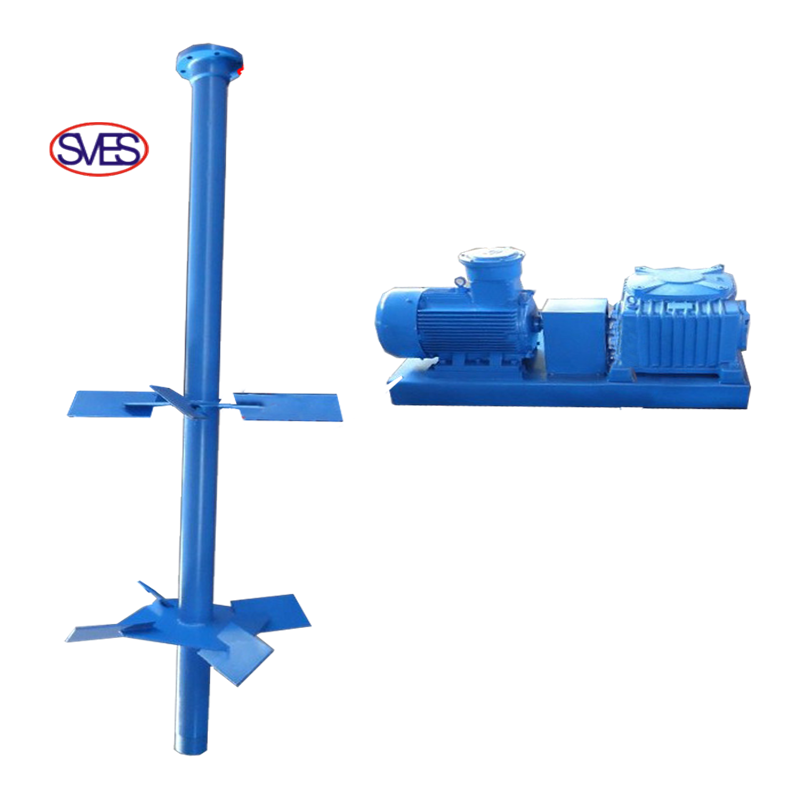

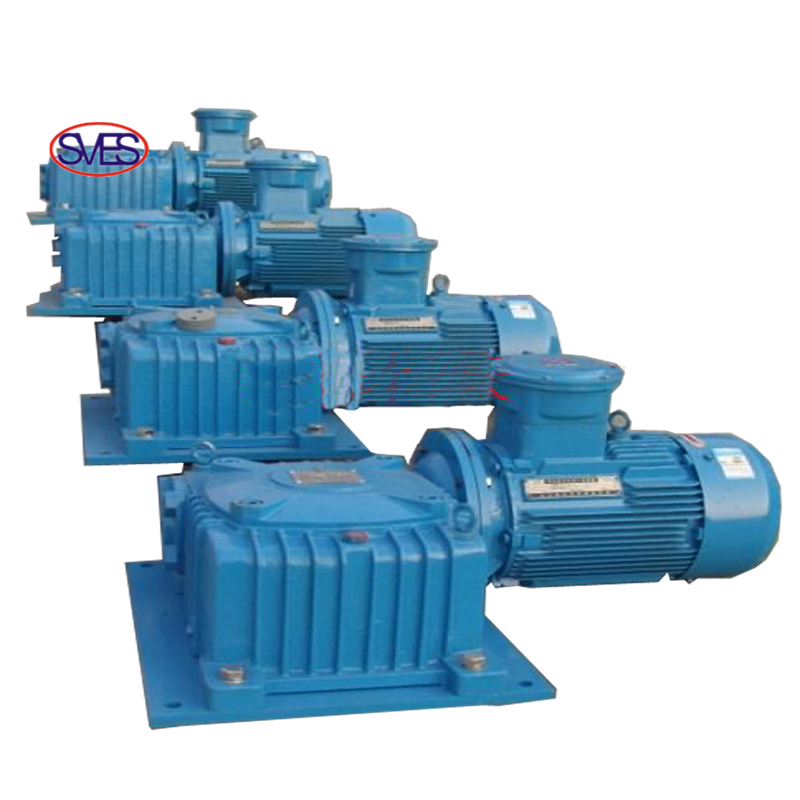

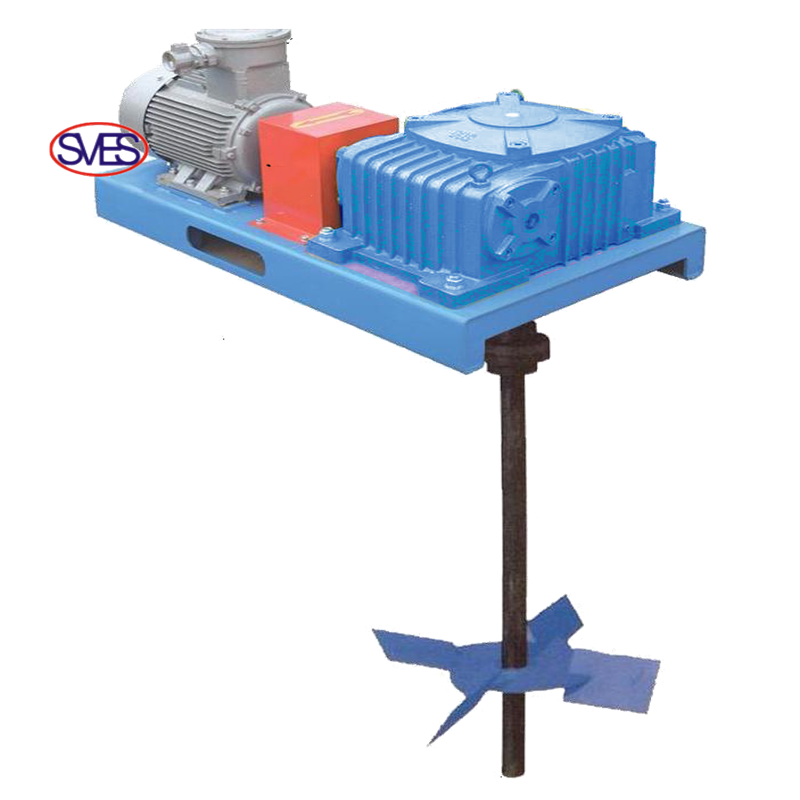

Mud Agitator
Get the latest price? We'll respond as soon as possible(within 12 hours)
WNJ series mud agitator adopted turbo and worm gearing-down, it has the merits of larger torque transmission, operation steady, work reliable. It has two kinds of installation method, horizontal and vertical. Common model is WNJ-5.5、WNJ-7.5、WNJ-11、WNJ-15 and WNJ-22, also we can design and produce according to customer‘ s requirements.
| Model | WNJ-5.5 | WNJ-7.5 | WNJ-11 | WNJ-22 | WNJ-15 |
| Motor Power | 5.5Kw | 7.5Kw | 11Kw | 22Kw | 15Kw |
| Impeller Speed | 60/72RPM | 60/72RPM | 60/72RPM | 60/72RPM | 60/72RPM |
| Imeller Dia | 600mm | 750mm | 850mm | 1000mm | 900mm |
| Ratio | 20:1 / 25:1 | 20:1 / 25:1 | 20:1 / 25:1 | 20:1 / 25:1 | 20:1 / 25:1 |
| Dimention | 870x600x560 | 906x600x560 | 1075x650x630 | 1265×790×750 | 1170x720x685 |
| mm | mm | mm | mm | mm | |
| Electric Specs | 380V/50Hz, 460V/60Hz or Customized | ||||
| Shaft Length | According to tank inner depth | ||||
| Remarks | Explosion Proof Motor Shaft Stabilizer Available | ||||
| Impeller Dia Customization Available | |||||
