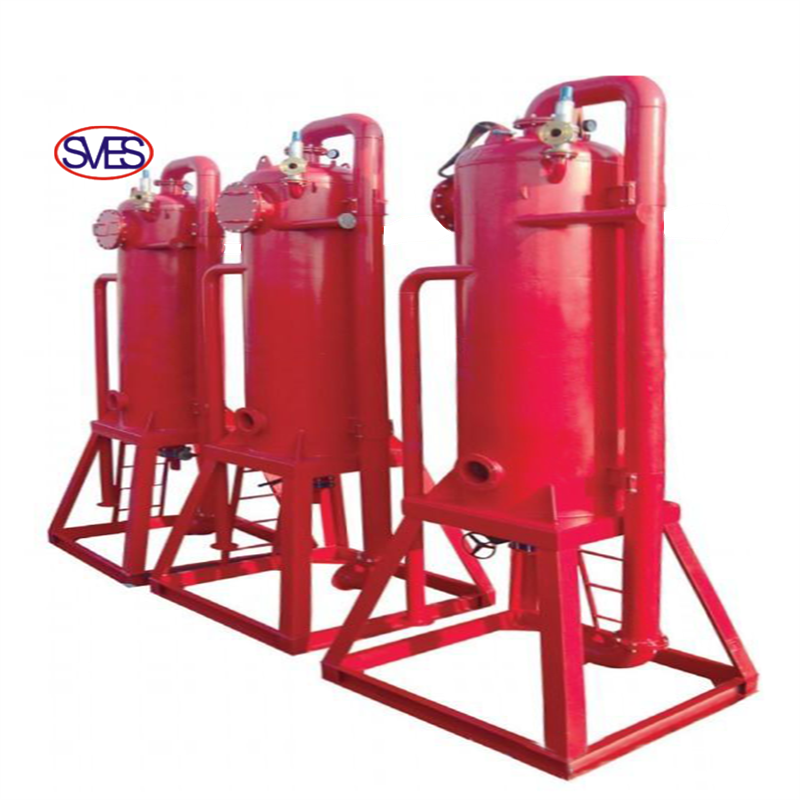

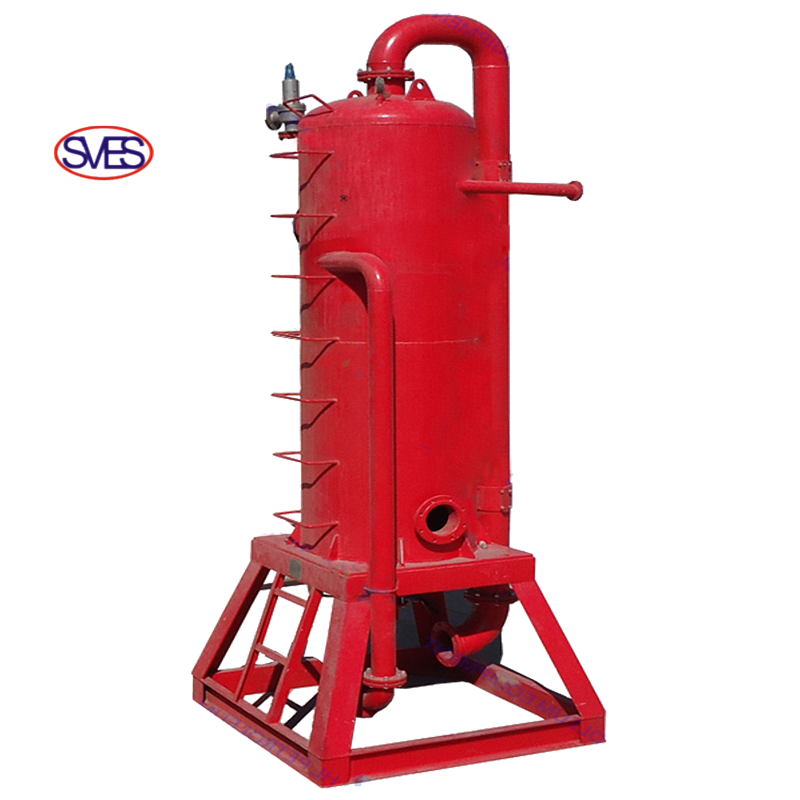

Mud Gas Separator
Get the latest price? We'll respond as soon as possible(within 12 hours)
ZYQ series mud gas separator is the professional equipment to process the gas cut drilling mud..The proportion and viscosity of the gas cut mud will emerge large deviation, it can not meet the requirement of drilling. More seriously, it will result in kick, even blowout accident occurred. Mud gas separator combined with ignition device can be used to process the gas-cut drilling mud effectively and timely.ZYQ series mud gas separator is divided into manual-control and auto-control according to the operation method.
| Model | ZYQ800 | ZYQ1000 | ZYQ1200 |
| Main body diameter | 800mm | 1000mm | 1200mm |
| Capacity | 180~260m³/h | 240~320m³/h | 260~380m³/h |
| Inlet pipe | 5" | 5" | 5" |
| Output pipe | 6" | 8" | 10" |
| Gas discharge Vent Line | 6" | 8" | 8" |
| Dimensions | 1900×1900×5700mm | 2000×2000×5860mm | 2200×2200×6634mm |
| Weight | 1600kg | 2000kg | 2500kg |
