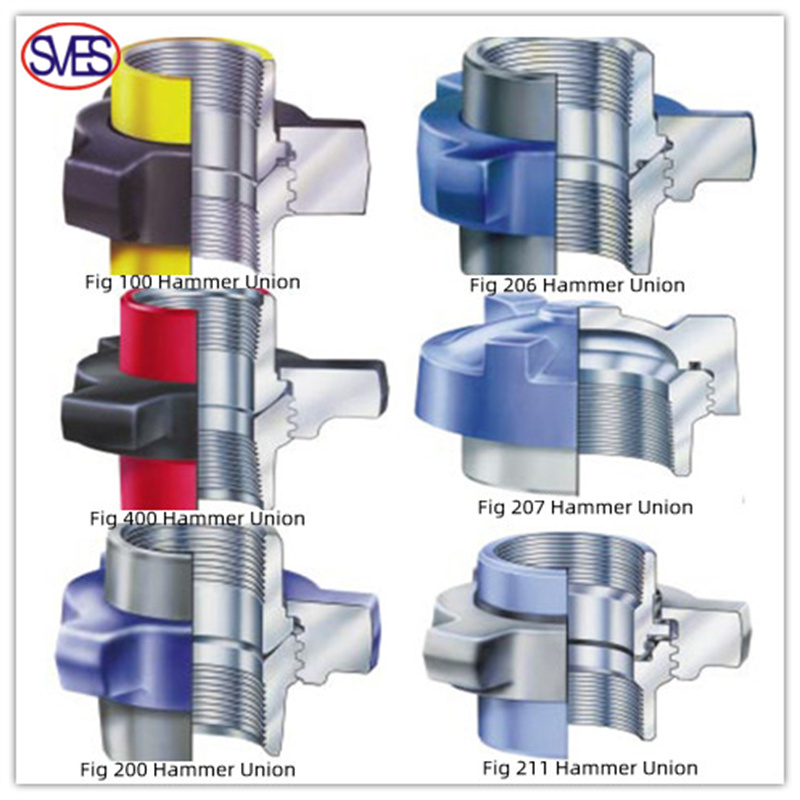

Fig 100 Hammer Union

1,000 psi(69 bar)

Pressure-tight make-up with hammer Economical.low-pressure union

Manifold and line connections

Fig 200 Hammer Union

2,000 psi(138 bar)

Economical,general-purpose union 1-to 4-inch sizes Butt-weld available

General-service manifolds and lines

Fig 206 Hammer Union

2,000 psi(138 bar)

0-ring in male sub improves sealing and protects metal-to-metal seal against corrosion Replaceable O-ring extends union 1-to 10-inch sizes

Manifold and line connections,suction service and corrosion service

Fig 207 Hammer Union

2,000 psi(138 bar)

Parts are interchangeable with Figs 200 and 206 O-ring on blanking cap ensures a leak-free seal Raised lugs on cap allow for make-up with a hammer Cap can be tapped for pressure gauge if specified Available in butt-weld

To seal manifold connections and protect union threads

Fig 211

Hammer Union

2,000 psi(138 bar)

Laminated insulating rings eliminate all metal to-metal contact,insulating rings provide 35 million ohms resistance across the union O-ring in male sub provides a positive primary seal Seal ring in female sub provides a positive secondary seal

Insulating rings.O-ring.and seal ring can be replaced to extend union life

For production systems with electrolytic corrosion problems

Fig 400 Hammer Union

4,000psi(276bar)through 4-inch sizes, 2,500psi(172 bar)through 5 to 12-inch sizes

21/2-through 12-inch sizes have O rings for primary seal Butt-weld available Available for sour gas service?,500 psi suction,(172 bar)cold working pressure, 54hrough 12-inch sizes,4,000psi (276 bar)coldworking pressure, 1-through 4-inch sizes

Manifold and line connections,pump suction,and mud service

Fig 600 Hammer Union

6.000psi(414 bar)

Bronze seat provides primary seal,will not rust in water services

Steam service.boiler connections. manifold and line connections for production.drilling and well servicing

Fig 602 Hammer Union

6,000psi(414 bar)

Compact Replaceable.hp-type seal provides primary seal,protects secondary metal 4o-metal seal and minimizes flow turbulence Butt-weld available Available for sour gas service6,000 psi (414bar)cold working pressure

Manifold and line connections and mud service

Fig 1002 Hammer Union

10,000psi(690bar)through4-inchsizes,7.500psi(517bar),5-and 6-inch sizes

Replaceable.lip-type seal provides primary seal protects secondary metal-to-metal.and minimizes flow turbulence Butt-weld available Available for sour gas service 7,500 psi (517 bar)cold working pressure 5-and 6-inch sizes have O-rings for primary seals

Cementing,fracturing.ac idizing,testing, and choke-and-kill lines

Fig 1003 Hammer Union

Misaligning union 10,000 psi(690 bar)2-and 3-inch sizes, 7,500psi(517 bar),4and5 inch sizes

Ball seal provides positive seal with up to 71/2misalignmenl;2-inch model up to 4° Replacement O ring on male sub provides primary seal,and protects metal-to-metal seal against abrasion and corrosion

Hammer union connection available with threaded or butt-weld ends

For high-pressure connections where lines cannot be aligned

Fig 1502 Hammer Union

15.000 psi(1034 bar)

Replaceable.lip-type seal provides primary seal,protects secondary metal-to-metal seal .and minimizes flow Butt-weld available Available for sour gas service 10,000 psi (690 bar)cold working pressure.butt- weld or non pressure4hread seal configurations only

Cementing.fracturing.acidizing,testing, and choke-and-kill lines

Fig 2002 Hammer Union

20.000 psi(1380 bar)

Replaceable,hp-type seal provides provides seal protects secondary metal-to-metal seal and minimizes flow turbulence 2 and 3-inch line sizes Butt-weld configurations only

Cementing,fracturing,acidizing,testing, and choke-and-kill lines

Fig 2202 Hammer Union

15,000 psi(1034 bar)

Meets National Association of Corrosion Engineers Standard MR-01-75 and American Petroleum Institute RP-14E Heat-treated components are 100% tested for hardness Fluoroelastomer seal rings Butt-weld only Stamped 'sour gas"using low-stress dot stamping and painted with a green zinc-chromate primer to assure quick identification

Especially designed for sour gas service
