Screw Conveyor

Get the latest price? We'll respond as soon as possible(within 12 hours)

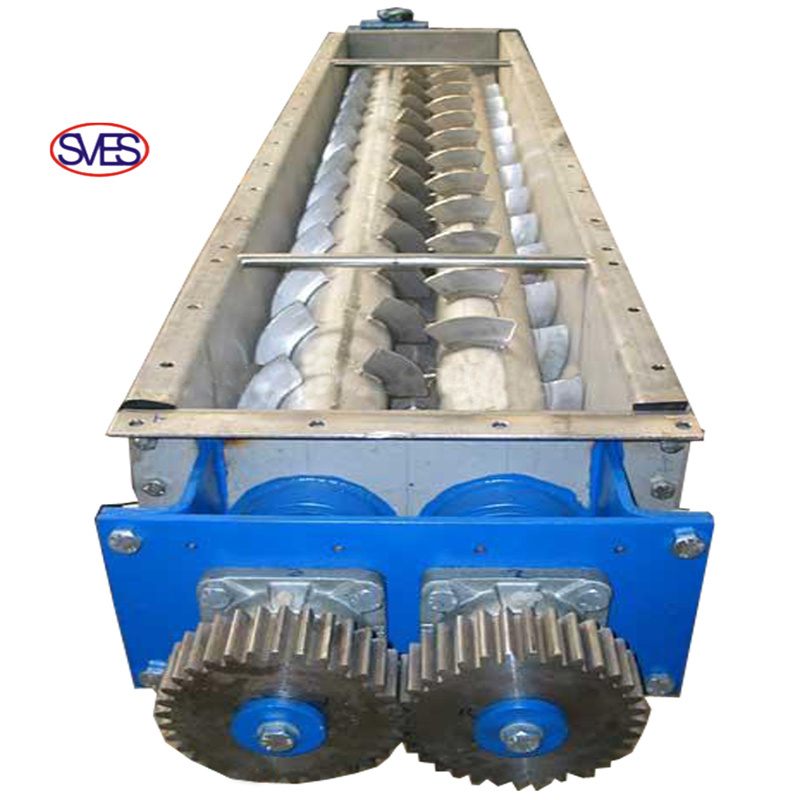

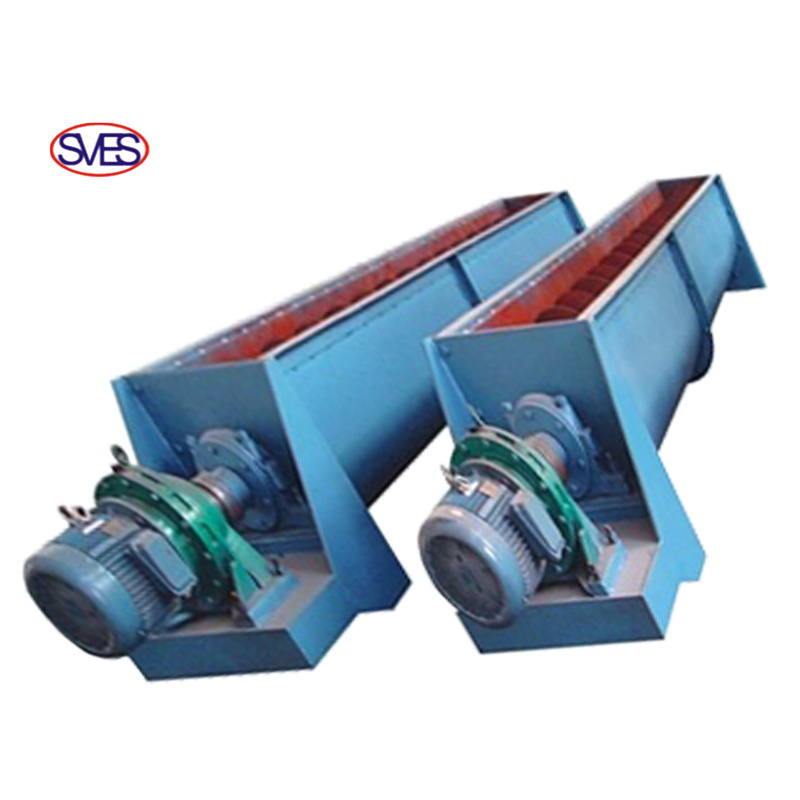

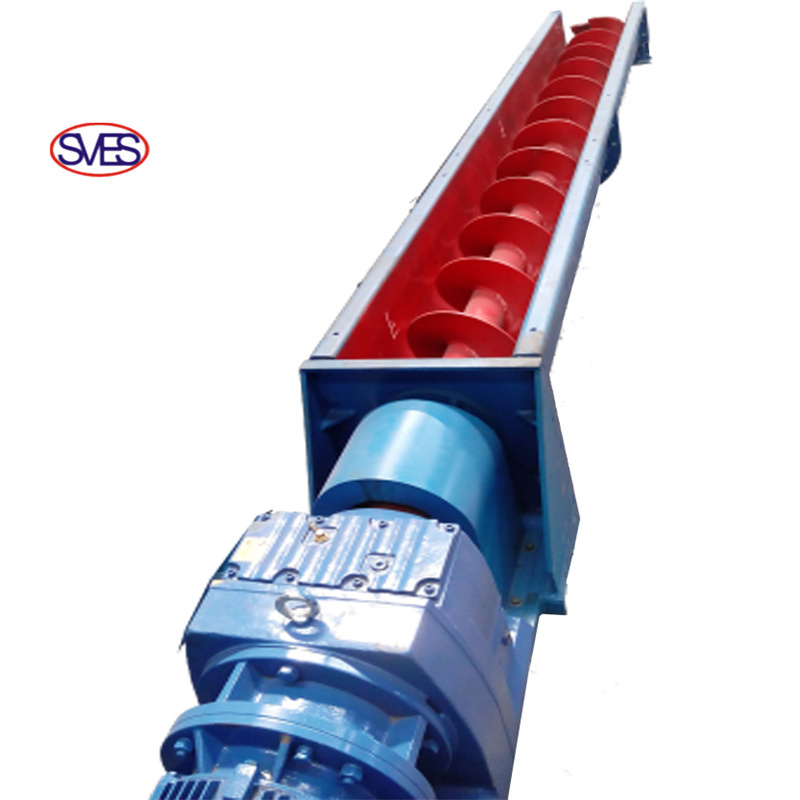

Screw conveyor

Screw conveyer has become one of the important equipment in the whole production process.Advanced structure, strong adaptability, small resistance, long life, easy maintenance,complete protection device is remarkable characteristic of the screw conveyer.

Screw Conveyor

Model		φmm	Thread pitch mm	rpm	IV(m³/h)
					Φ	Φ	Φ
					0.15	0.33	0.45
Small size	LS100	100	100	140	1	2.2	3
	LS125	125	125	125	1.7	3.8	5.2
	LS160	160	160	112	3.2	7.1	9.7
	LS200	200	200	100	5.6	12.4	16.9
Middle-size	LS250	250	250	90	9.9	21.8	29.7
	LS315	315	315	80	17.6	38.8	52.9
	LS400	400	355	71	28.4	62.5	85.3
Large-size	LS500	500	400	63	44.4	97.7	133.2
Large-size	LS630	630	450	50	63	138.5	188.9
Extra large size	LS800	800	500	40	90.2	198.5	270.7
Extra large size	LS1000	1000	560	32	126.3	277.9	379
