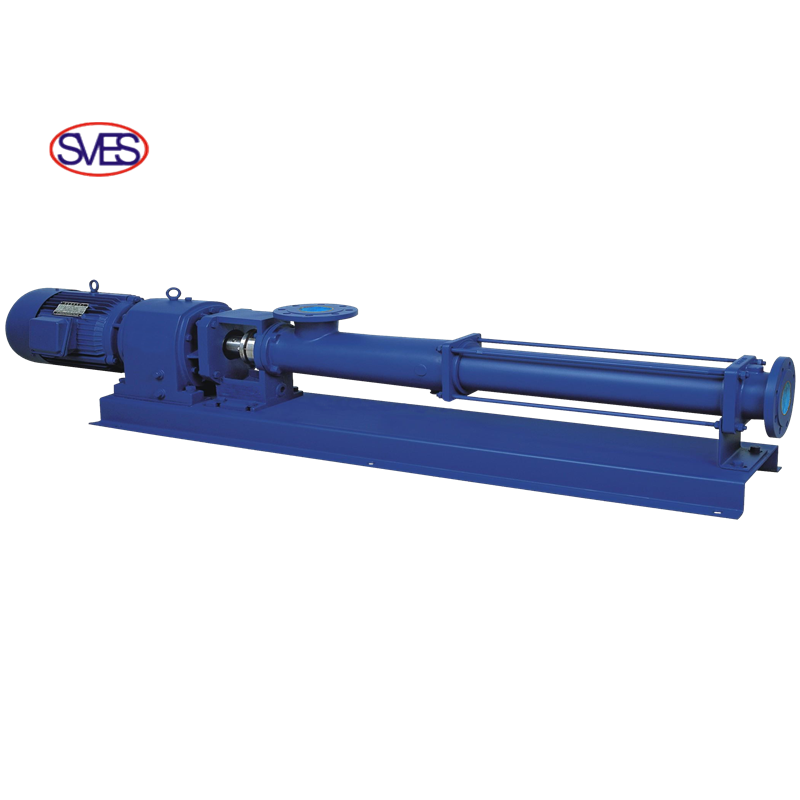

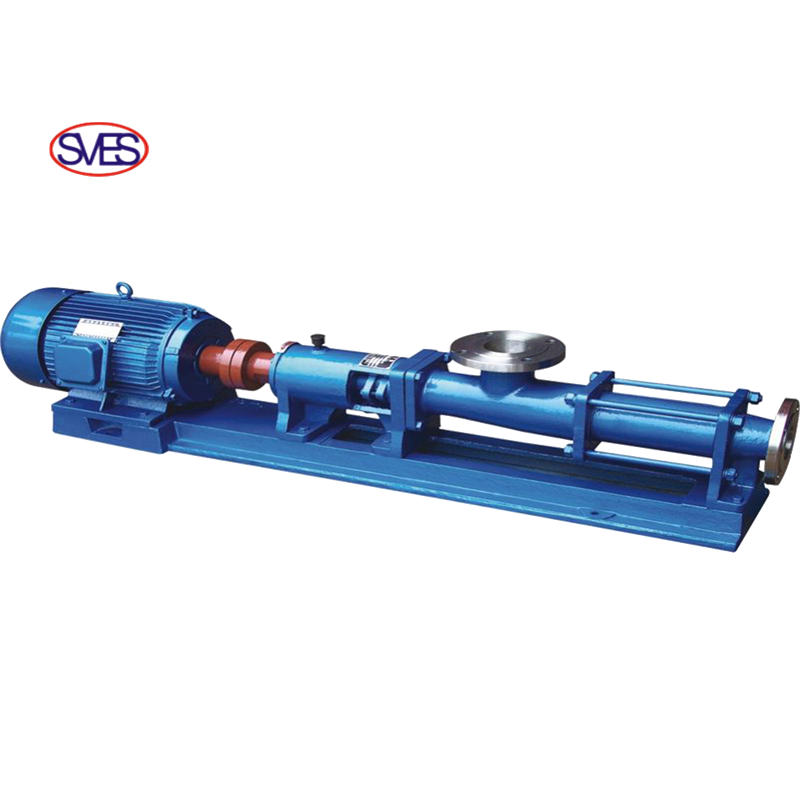

Screw Pump
Get the latest price? We'll respond as soon as possible(within 12 hours)
G Series General speaking, Single screw pump can be act as a Universal pump. The rotating speed is adjustable, the rated pressure of pump outlet is increasing with the class of the motor, the pressure will increase 0.6Mpa when the motor increase one class, so it is widely used in many industries.
| Model | Flow (m³/h) | Pressure (Mpa) | Max speed (r/min) | Motor power (Kw) | necessary NPSH (m) | Inlet flange (mm) | Outlet flange (mm) | Fibre length Allowed (mm) | Max particle Allowed (mm) |
| G40-1 | 12 | 0.6 | 960 | 4 | 4 | 80 | 65 | 45 | 3.8 |
| G40-2 | 1.2 | 5.5 | |||||||
| G50-1 | 14 | 0.6 | 720 | 5.5 | 4.5 | 100 | 80 | 50 | 5 |
| G50-2 | 1.2 | 7.5 | |||||||
| G60-1 | 22 | 0.6 | 720 | 11 | 5 | 125 | 100 | 60 | 6 |
| G60-2 | 1.2 | 15 | |||||||
| G70-1 | 38 | 0.6 | 720 | 11 | 150 | 125 | 70 | 8 | |
| G70-2 | 1.2 | 18.5 | |||||||
| G85-1 | 56 | 0.6 | 630 | 15 | 150 | 150 | 80 | 10 | |
| G85-2 | 1.2 | 30 | |||||||
| G105-1 | 100 | 0.6 | 500 | 30 | 200 | 200 | 110 | 15 | |
| G105-2 | 1.2 | 55 | |||||||
| G135-1 | 150 | 0.6 | 400 | 45 | 250 | 250 | 150 | 20 | |
| G135-2 | 1.2 | 90 |
