C I Slip Hanger

Space Spool

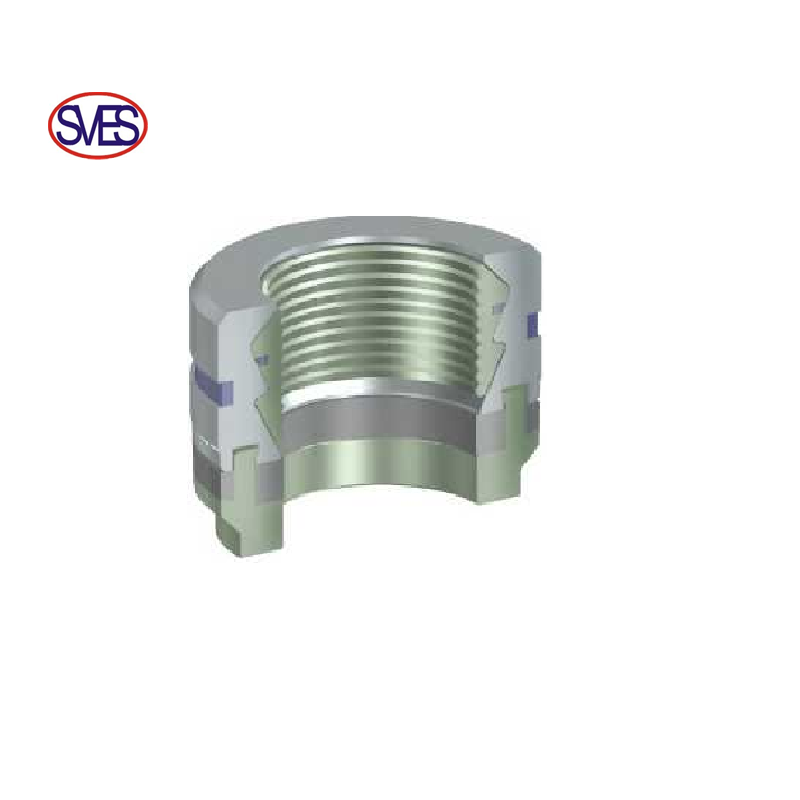

C I Slip Hanger

—Single shoulder design

—Max. operating pressure: 105MPa (15000psi)

—Temperature range: -29~121°C

—Hanging capacity: 50% of casing tensile capacity

一 Actuating mode: self-actuating mode ( by hanging weight)

—Minimum actuating weight: 15t

C l-M Slip Hanger

Casing Hanger

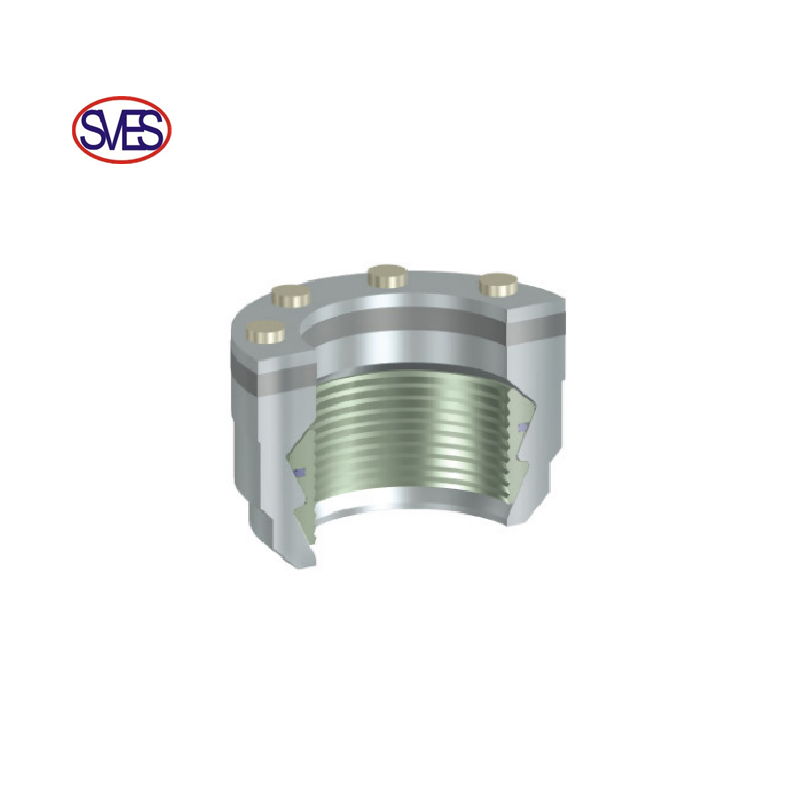

C l-M Slip Hanger

—Single shoulder design

—Max. operating pressure: 105MPa (15000psi)

—Temperature range: -29~121°C

—Hanging capacity: 50% of casing tensile capacity

—Actuating mode: compacting (by manual fastening the screw pin)

CH Slip Hanger

Tubing Hanger

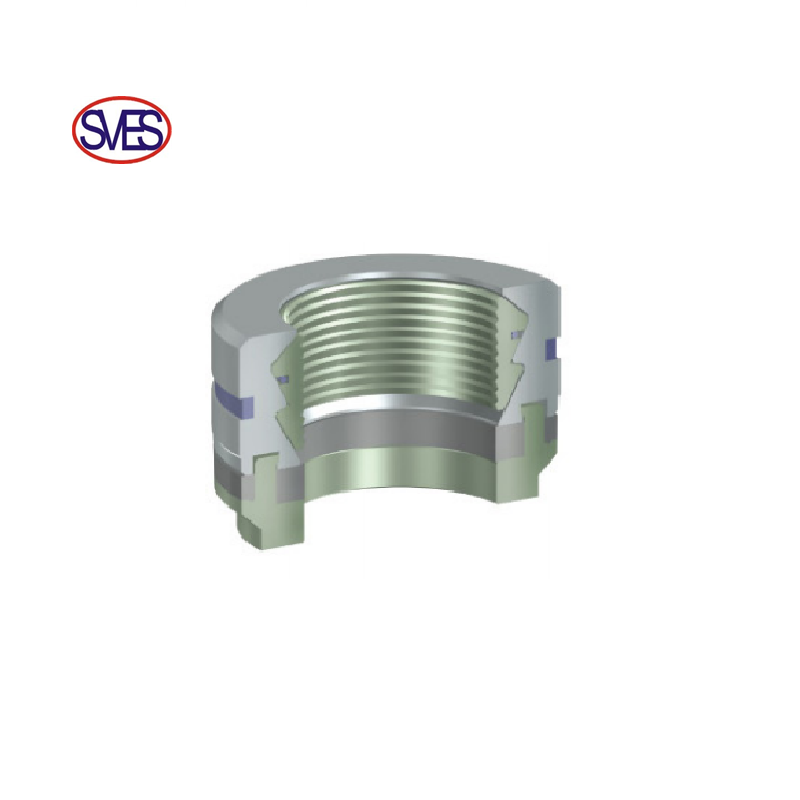

CH Slip Hanger

—Double shoulder design

—Max. operating pressure: 105MPa (15000psi)

—Temperature range: -29-121 °C

—Hanging capacity: 80% of casing tensile capacity

—Actuating mode: self-actuating mode (by hanging weight)

—Minimum actuating weight: 15t

Cll-M Slip Hanger

Space Spool

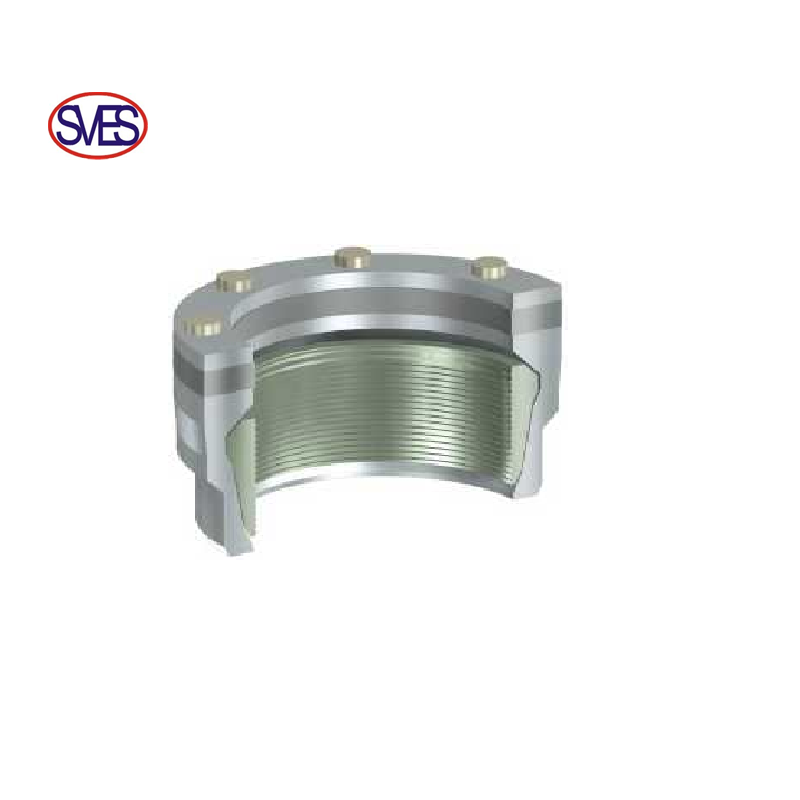

Cll-M Slip Hanger

—Double shoulder design

—Max. operating pressure： 105MPa (15000psi)

—Temperature range： -29〜121 °C

—Hanging capacity: 80% of casing tensile capacity

—Actuating mode: compacting (by manual fastening the screw pin)

Nominal Size of Hanger X Casing Size(in)	CI	CI-M	C II	C II M
11*5	√	√	√	√
11*5 1/2	√	√	√	√
11*6 5/8	√	√	√	√
11*7	√	√	√	√
11*7 5/8	√	√	√	√
13 5/8*5 1/2	√	√	√	√
13 5/8*7	√	√	√	√
13 5/8*7 5/8	√	√	√	√
13 5/8*8 5/8	√	√	√	√
13 5/8*9 5/8	√	√	√	√
13 5/8*10 3/4	√	√	√	√
16 3/4*9 5/8	√	√	√	√
16 3/4*10 3/4	√	√	√	√
20 3/4*13 3/8	√	√	√	√
21 1/4*13 3/8	√	√	√	√

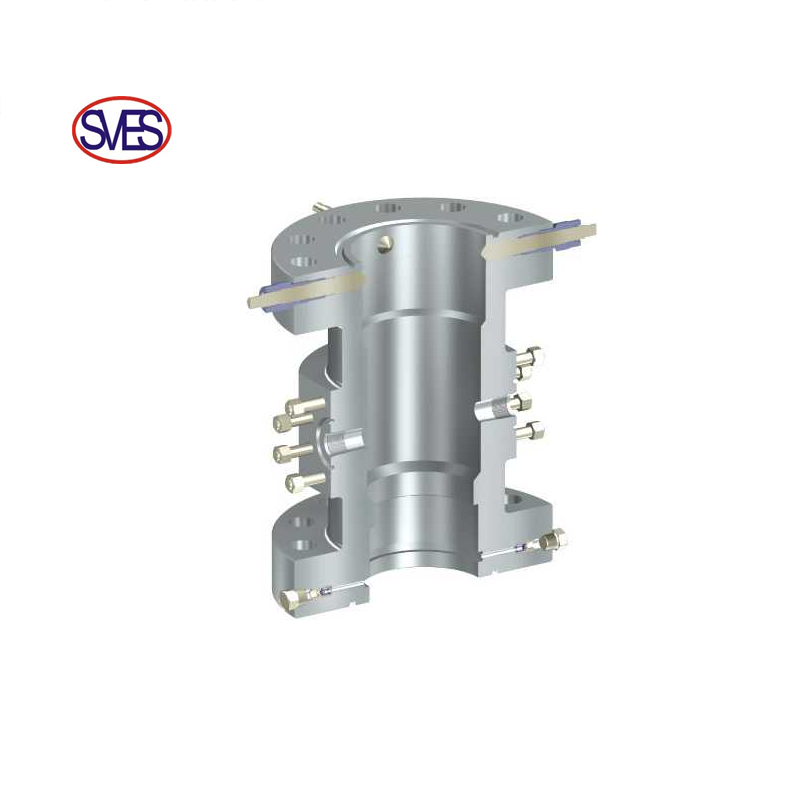

S Casing Spool Specifications
