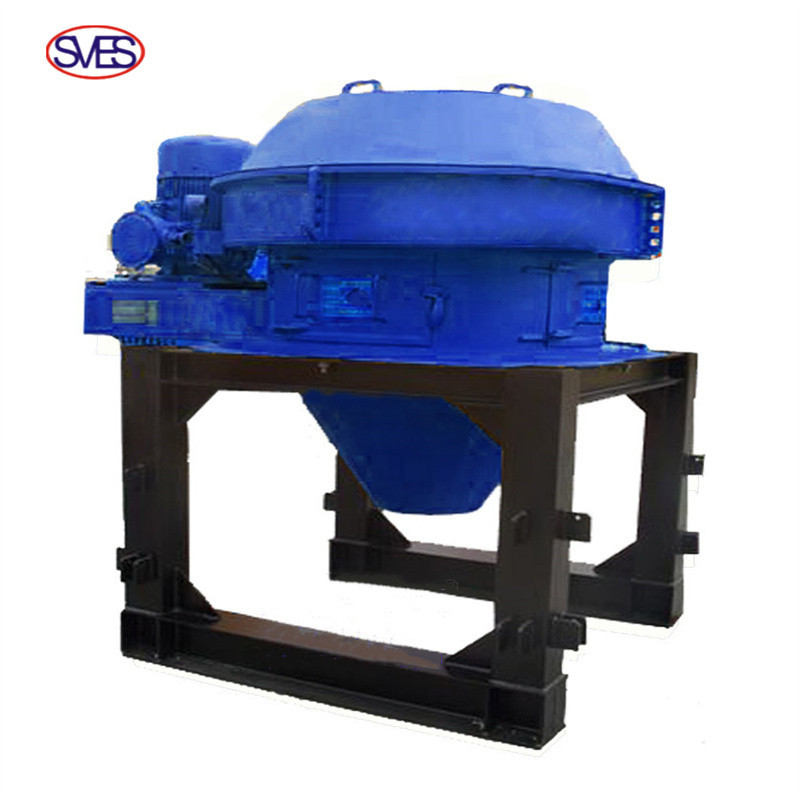

Vertical Cuttings Dryer
Get the latest price? We'll respond as soon as possible(within 12 hours)
Drilling waste management has put forward higher requirements with the constant improvement of the environmental protection requirement. Drilling waste purification system can not only be very good to solve the environmental problems, but also can do recycling to the waste of the solid control system. While drilling cutting management system maximize retains the useful mud, and it concentrated solidify after processing of drilling cuttings. That helps to reduce the destruction of the environment in oil filed worker.
| Model | HDVC-950 |
| Max. Diameter Of Drum | 950mm |
| Rotation Speed | 820r/min |
| G-Force | 360 |
| Max.Capacity | 60T/h |
| Oil On Cuttings (OOC) | ≤5% |
| Main Motor Power | 55kw（75HP） |
| Screen Openning | 0.015”，0.020” |
| Power | 380V/50Hz or 460V/60Hz |
| Ex-Mark | ExdⅡBT4/ ExdⅡCT3 |
| Dimensions(L×W×H） | 3820mm×3360mm×5900mm |
| Weight | 8700kg |
