Deflagration Fracturing
Description

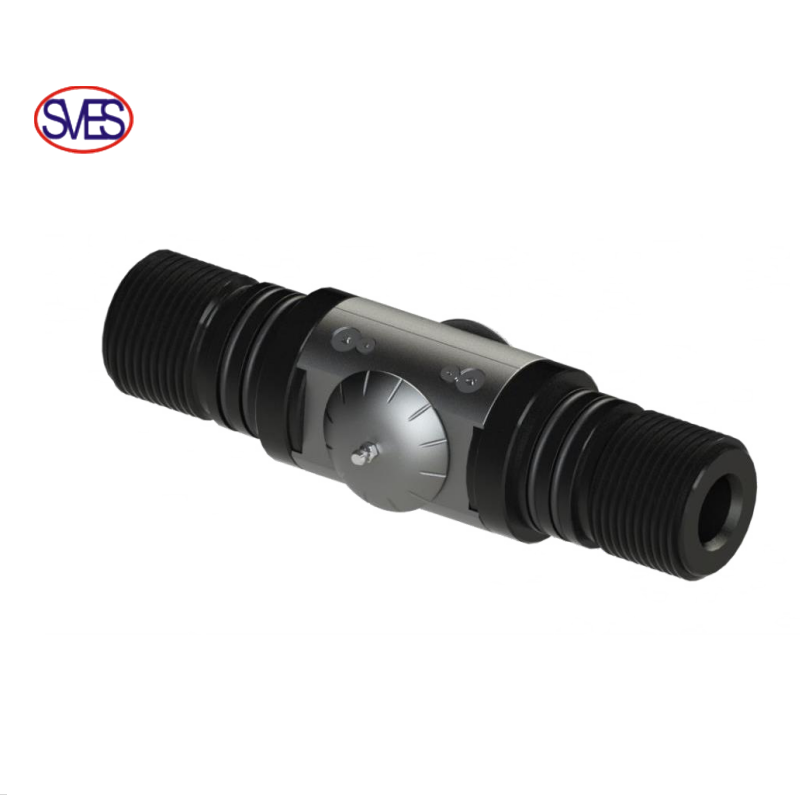

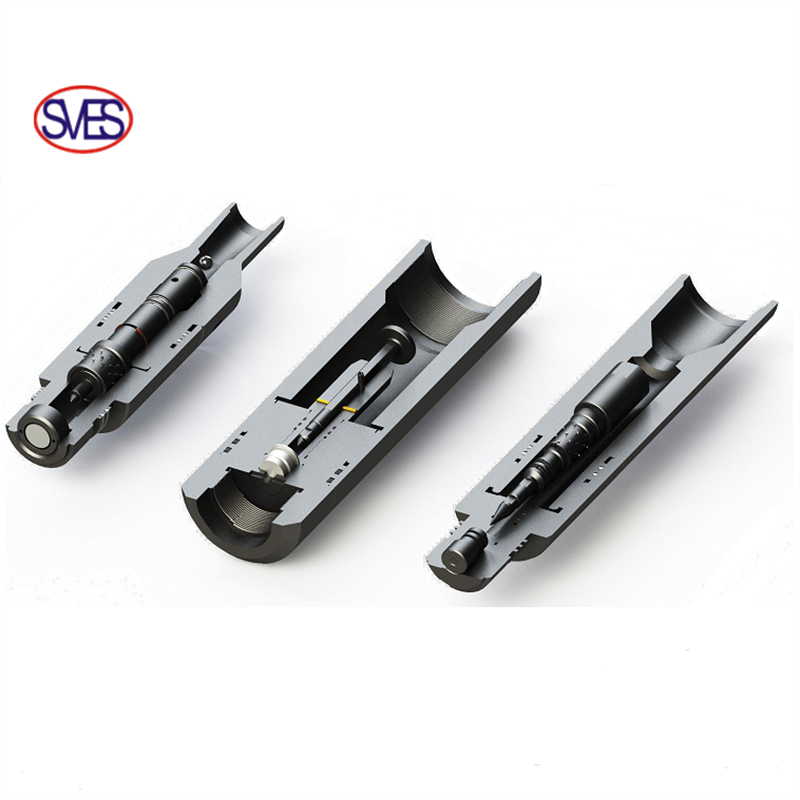

The RSST Selection Sub is used when two or more guns on the same string are to be initiated at different times. The assembly is designed to accept industry standard pressure switches or the E-Addressable Switch.
.Features
1. Standard connection thread
2. Knurled gripping surface
3. With Pressure Seal
4. Positive ground connection to sub body
Technical Information
RSST SERIES SUB SPECIFICATIONS | ||||
O.D. | 3-1/8” | 3-3/8” | ||
Upper head connection | 2-3/4”-6 Acme Pin | 2-13/16” -6 Acme Pin | ||
Lower head connection | 2-3/4”-6 Acme Pin | 2-13/16” -6 Acme Pin | ||
Wire Port Plug | 2A33000005002/2A33000005003 | |||
Plug O-Ring | AS-217 | |||
Pressure Max. | 22000 psi | |||
Length make-up L | 6.25” | 3.25” | 6.25” | 3.25” |

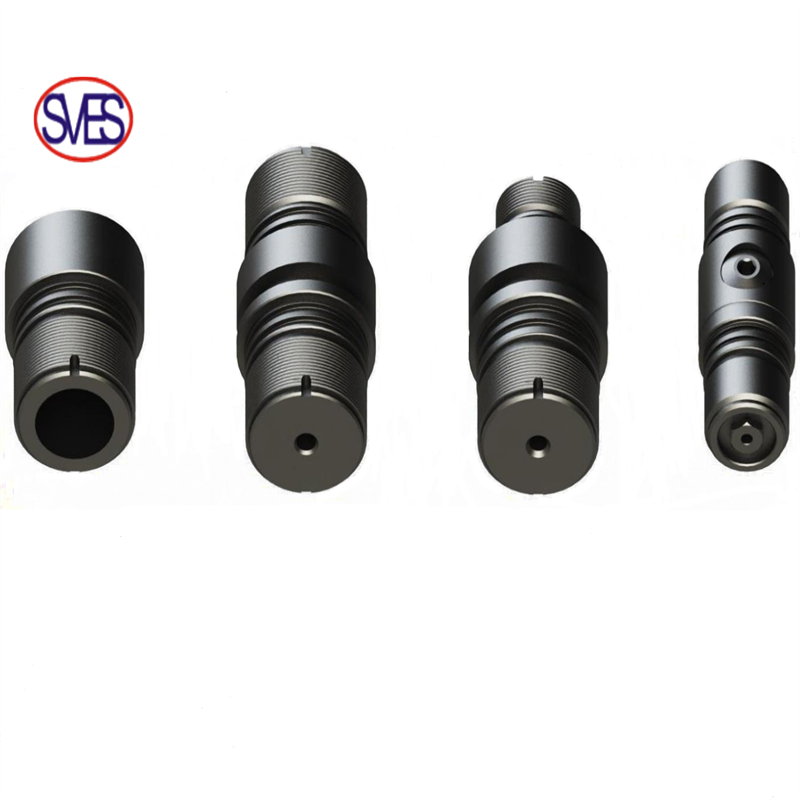

Description
Top sub is using for connecting the fire head and perforating gun.
B2- Series top sub is made of 4140 alloy structural steel with good mechanical properties.
Technical Information
Sub O.D. | Thread Type* |
Pressure Rating |
Max. Weight** | |
Upper | lower | |||
2" | 1-3/16"-12UN-2B(Box) | 1 11/16"-8 STUB ACME-2G |
25000 psi [172Mpa] | 3.3lb[1.5kg] |
2 7/8" |
2 3/4"-6Acme-2G | 2 3/8"-6Acme-2G | 12.1lb[5.5kg] | |
3 1/8" | 2 3/4"-6Acme-2G | 13.9lb[6.3kg] | ||
3 3/8" | 2 13/16"-6Acme-2G | 17.6lb[6.5kg] | ||
4 1/2" | 3 15/16"-6Acme-2G | 26.4lb[12kg] | ||
7" | 6 1/4"-5Acme-2G | 59.4lb[27kg] | ||
* On Requst
**All weights are theoretical
Sub O.D. | O-ring Size / upper | O-ring Size / lower |
2" | / | 2-222 3.53×φ37.69 |
2 7/8" |
2-230 3.53×φ63.10 | 2-227 3.53×φ53.57 |
3 1/8" | 2-230 3.53×φ63.10 | |
3 3/8" | 2-231 3.53×φ66.30 | |
4 1/2" | 2-342 5.33×φ91.45 | |
7" | 2-360 5.33×φ148.60 |
Product condition must be monitored, inspected and maintained regularly to ensure proper service in accordance with guideline. Failure to do so may result in personal injury and/ or property damage. For questions please contact your representative.
Description
Tandem sub is using for connecting two perforating guns.
B2- Series tandem sub is made of 4140 alloy structural steel with good mechanical properties.
Technical Information
Sub O.D. | Thread Type* ( Upper/Bottom ) |
Pressure Rating |
Max. Weight** |
2" | 1 11/16"-8 STUB ACME-2G |
25000 psi [172Mpa] | 3.3lb[1.5kg] |
2 7/8" | 2 3/8"-6Acme-2G | 9.9lb[4.5kg] | |
3 1/8" | 2 3/4"-6Acme-2G | 14.3lb[6.5kg] | |
3 3/8" | 2 13/16"-6Acme-2G | 17.6lb[8kg] | |
4 1/2" | 3 15/16"-6Acme-2G | 30.9lb[14kg] | |
7" | 6 1/4"-5Acme-2G | 77.2lb[35kg] |
* On Requst
**All weights are theoretical
Sub O.D. | Part No. | O-ring Size |
2" | B2051400000-A | AS-222 3.53×φ37.69 |
2 7/8" | B2073400000-A | AS-227 3.53×φ53.57 |
3 1/8" | B2080400000-A | AS-230 3.53×φ63.10 |
3 3/8" | B2086400000-A | AS-231 3.53×φ66.30 |
4 1/2" | B2114400000-A | AS-342 5.33×φ91.45 |
7" | B2178400000-A | AS-360 5.33×φ148.60 |
Product condition must be monitored, inspected and maintained regularly to ensure proper service in accordance with guideline. Failure to do so may result in personal injury and/ or property damage. For questions please contact your representative.
Deacription
Bottom sub is using for sealing the bottom of the perforating gun, usually at the end of the perforating pipe string. B2- Series bottom sub is made of 4140 alloy structural steel with good mechanical properties.
Technical Information
Sub O.D. | Thread Type* | Pressure Rating | Max. Weight** |
2" | 1 11/16"-8 STUB ACME-2G |
25000 psi [172Mpa] | 2.2lb[1kg] |
2 7/8" | 2 3/8"-6Acme-2G | 6.6b[3kg] | |
3 1/8" | 2 3/4"-6Acme-2G | 11lb[5kg] | |
3 3/8" | 2 13/16"-6Acme-2G | 14.3lb[6.5kg] | |
4 1/2" | 3 15/16"-6Acme-2G | 26.5lb[12kg] | |
7" | 6 1/4"-5Acme-2G | 39.7lb[18kg] |
* On Requst
**All weights are theoretical
Sub O.D. | O-ring Size |
2" | 2-221 3.53×φ36.09 |
2 7/8" | 2-227 3.53×φ53.57 |
3 1/8" | 2-230 3.53×φ63.10 |
3 3/8" | 2-231 3.53×φ66.30 |
4 1/2" | 2-342 5.33×φ91.45 |
7" | 2-361 5.33×φ151.75 |
Product condition must be monitored, inspected and maintained regularly to ensure proper service in accordance with guideline. Failure to do so may result in personal injury and/ or property damage. For questions please contact your representative.
SUPPORT PLATE
Designed to suspend the perforating gun assembly.
• Always lock latching bar in place.
Sub OD： 2“， 2 7/8”,3 1/8“，3 3/8”,4 1/2“，7”
Sub O.D. |
2" |
2 7/8" |
3 1/8" |
3 3/8" |
4 1/2" |
7" |
*Other sizes available on request
THREAD PROTECTOR
Technical Information
Designed as a safety device to protect the threads and gun assembly of loaded perforating gun assemblies against humidity.
• Ensure that connection to gun system is tightly made up.
Sub O.D. |
Thread Type* |
Typ |
2" |
1 11/16"-8 STUB ACME-2G | Box |
Pin | ||
2 7/8" |
2 3/8"-6Acme-2G | Box |
Pin | ||
3 1/8" |
2 3/4"-6Acme-2G | Box |
Pin | ||
3 3/8" |
2 13/16"-6Acme-2G | Box |
Pin | ||
4 1/2" |
3 15/16"-6Acme-2G | Box |
Pin | ||
7" |
6 1/4"-5Acme-2G | Box |
Pin |
*Other sizes available on request
LIFT SUB
Technical Information
Designed to handle and lift the perforating gun assembly in rig elevators, tugger line or air hoist while connections are being made up.
Ensure that connection to gun system is tightly made up,and Ensure that lifting eye is tightened
Sub O.D. | Thread Type* | Typ |
2" | 1 11/16"-8 STUB ACME-2G | Box |
2 7/8" | 2 3/8"-6Acme-2G | Box |
3 1/8" | 2 3/4"-6Acme-2G | Box |
3 3/8" | 2 13/16"-6Acme-2G | Box |
4 1/2" | 3 15/16"-6Acme-2G | Box |
7" | 6 1/4"-5Acme-2G | Box |
*Other sizes available on request
DROP BAR
Technical Information
Drop Bar is used in the TCP operation. It provides strike energy for the striking type firing heads such as safety impact firing head、sand control firing head and so on.
Item | Description | |||||
O.D. MAX |
32mm |
33mm |
38mm |
32mm |
46mm |
32mm |
Fishing head diameter |
25.4mm |
25.4mm |
25.4mm |
25.4mm |
25.4mm |
25.4mm |
Fishing neck diameter |
20mm |
20mm |
20mm |
20mm |
20mm |
20mm |
Total Length |
1800mm |
1686mm |
1600mm |
3052mm |
2004mm |
1600mm |
Weight |
10kg |
11kg |
13kg |
18kg |
23kg |
10kg |
Features:
• Drop Bar is standard component. It is used with the striking type firing head.
• It is equipped with copper seal screw，displaying the striking situation.
• It can be reused after the copper seal screw is changed.

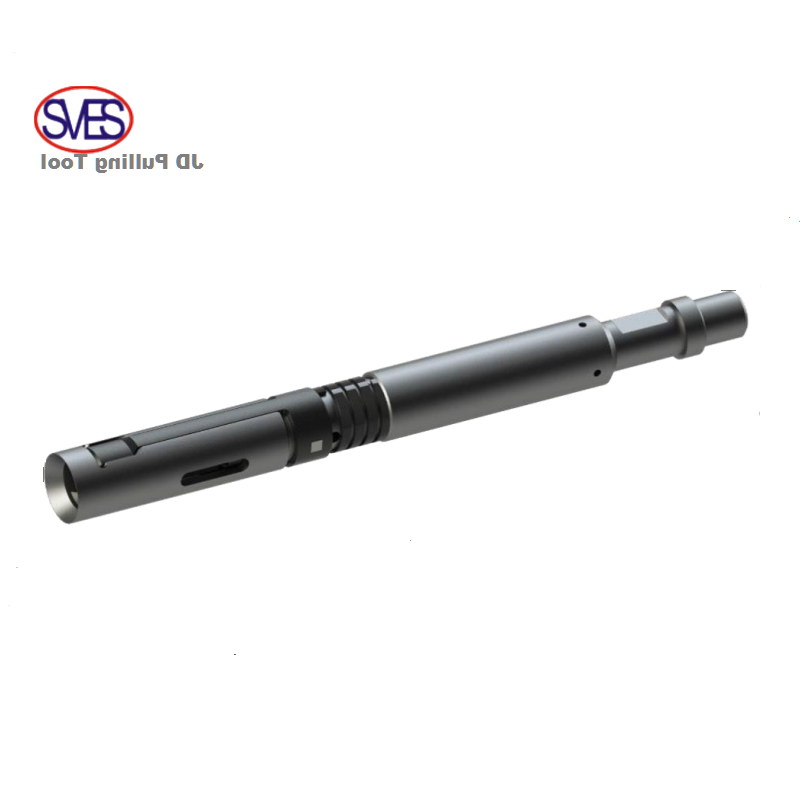

JD PULLING TOOL
Technical information:
JD pulling tool is a fishing tool that can be used to running and pulling tools or instruments with external salvage necks (such as prong, plugs, pressure gauges, etc.). It can knock down and release your hand. It can be divided into JDC, JDS and JDL according to different grip distances.
• Standard connection.
• Can be used to launch and salvage.
• Sample 、Reliable、Easy to use.
Item | Description | |||
TYPE | 1″ | 1.5″ | 2″ | 2.5″ |
O.D. MAX | 1.422in | 1.422in | 1.86 in | 2.25 in |
Connection Thread Type (TOP) |
15/16” -10UN |
15/16” -10UN |
15/16” -10UN |
15/16” -10UN |
Fishing Neck Of The Tool |
1.187in |
1.187 in |
1.375 in |
1.375 in |
To Fishing Neck （Bar） |
1in |
1.187 in |
1.375 in |
1.75 in |
Reach | 35~40mm | 35~40mm | 35~40mm | 35~40mm |
Features:
• Standard connection.
• Can be used to launch and salvage.
• Sample 、Reliable、Easy to use.

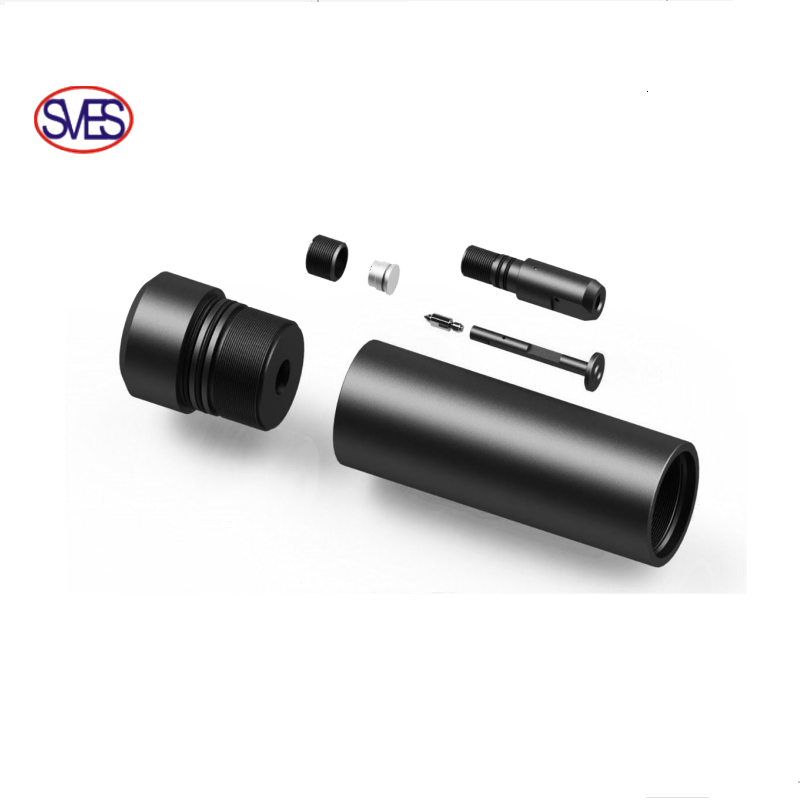

Cable Head
Technical Information
OD 37mm（17/16 in）
Length 315mm（12.4in）
Maximum Temperature 204℃（400℉）
Electric Wireline Diameter 8mm（5/16in）
Thread 1-3/16”-12 GO Pin
Maximum Current 6000mA
Maximum Voltage (VDC) 600
Maximum Tension 187KN(42000 lbf)
Max Pressure 105 MPa (15230psi)
Maximum Tension 187KN(42000 lbf)
Features :
Wireline steering tool services
Production logging
Perforating

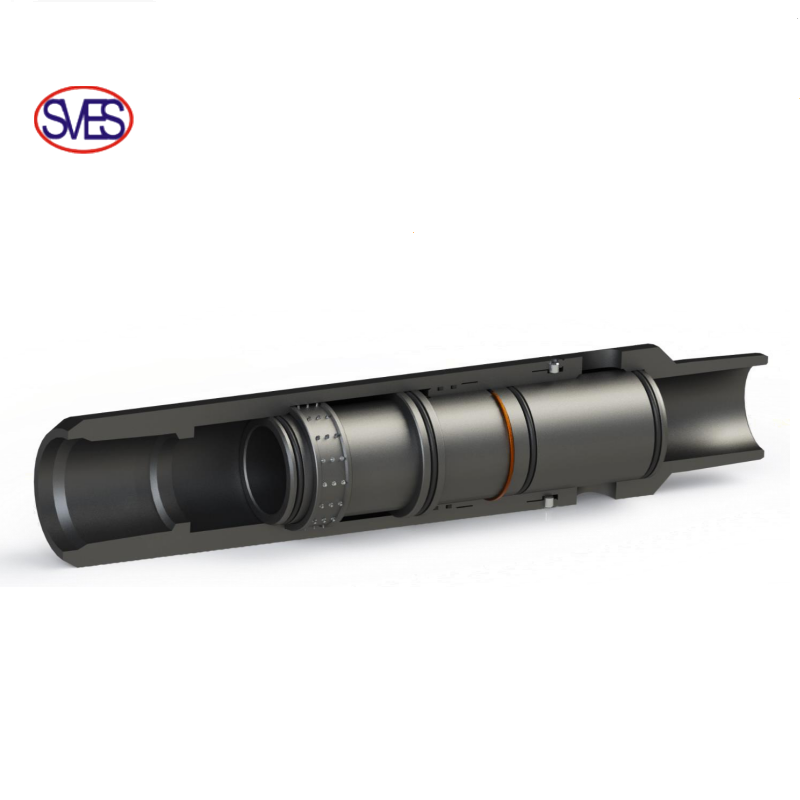

Differential Sub，Non Ported
Technical Information
Item | Description | |||||
TYPE | 2-3/8in(60.3mm) | 2-7/8in（73.0mm） | 3-1/2in（88.9mm） | |||
Max Pressure | 10000PSI (70MPa) | 5000PSI (35MPa) | 10000PSI (70MPa) | 5000PSI (35MPa) | 10000PSI (70MPa) | 5000PSI (35MPa) |
O.D. MAX | 3.062in (77.8mm) | 3.669in (93.2mm) | 4.500in (114.3mm) | |||
I.D. | 1.995in (50.6mm) | 2.37in (60.2mm) | 3.070in (78.0mm) | |||
Overall Length | 12.1in (307mm) | 13.4in (340mm) | 13.6in (345mm) | |||
Connection | 2-3/8 EU (B×P) | 2-7/8 EU (B×P) | 3-1/2 EU (B×P) | |||
Tensile | 135000lb （60048daN） | 198000lb （88070daN） | 208800lb （92878daN） | |||
Max Temp | 392°F(200°C) | |||||
Body Material: 4140
O-ring Material: Viton-70 Durometer

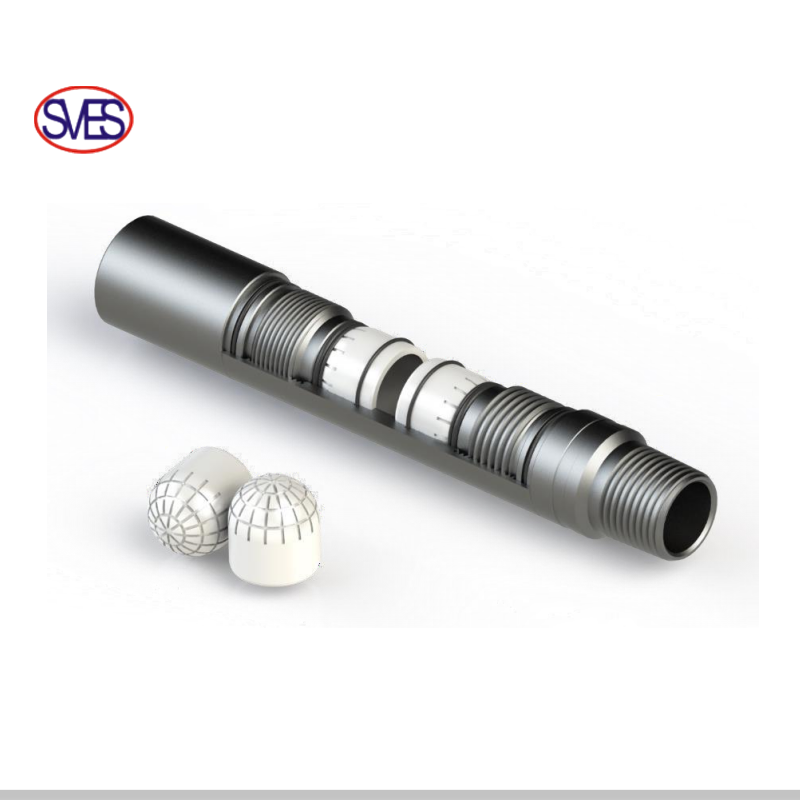

Bidirectional Differential Sub
Technical Information
Item | Description | |
TYPE | 2-3/8in(60.3mm) | 2-7/8in（73.0mm） |
Max Pressure | 10000PSI (70MPa) | 10000PSI (70MPa) |
O.D. MAX | 3.062in (77.8mm) | 3.669in (93.2mm) |
I.D. | 1.995in (50.6mm) | 2.36in (60mm) |
Overall Length | 18.86in (479mm) | 20in (508mm) |
Connection | 2-3/8 EU (B×P) | 2-7/8 EU (B×P) |
Tensile | 135000lb （60048daN） | 198000lb （88070daN） |
Max Temp | 392°F(200°C) | |
Body Material: 4140
O-ring Material: Viton-70 Durometer

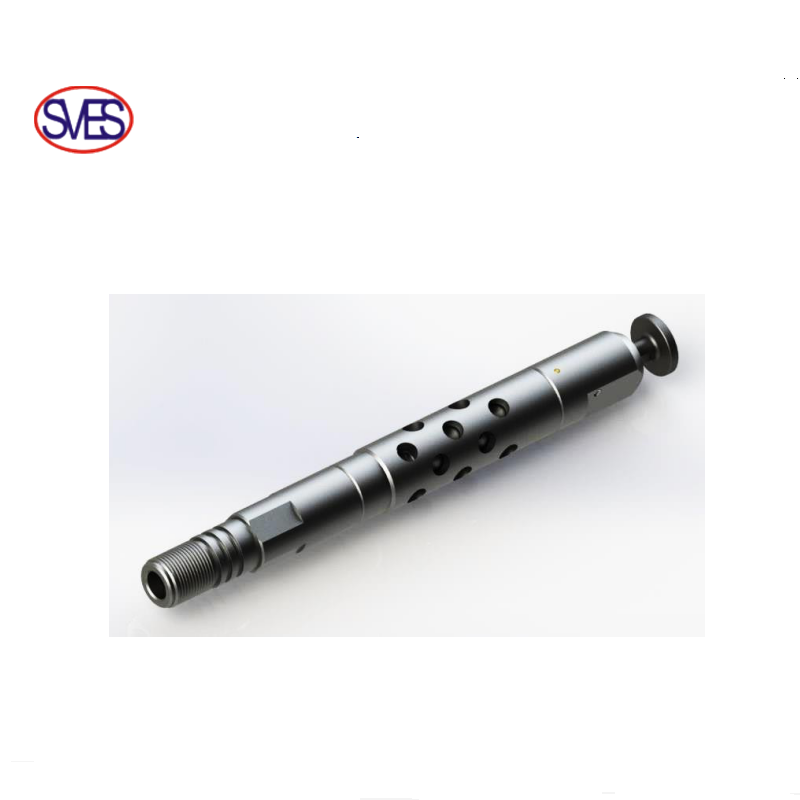

Drop Bar Pressure Vent Sub
Technical Information
Item | Description | ||
TYPE | 2-3/8in(60.3mm) | 2-7/8in（73.0mm） | |
O.D. MAX | 89mm | 99mm | |
I.D. | 51mm | 61mm | |
Make-up Length/Overall Length | 403mm/453mm | 422mm/476mm | |
Connection | Upper Thread | 2-3/8 EU BOX | 2-7/8 EU BOX |
Bottom Thread | 2-3/8 EU PIN | 2-7/8 EU PIN | |
Vent area | 2026 mm² | 3039mm² | |
Max Temp | 200℃ | ||
Pressure Rating | 90 MPa | ||
Minimum pressure of vent | 3.4MPa | ||
Max. Differential Pressure | 90 MPa | ||
Tensile | P110 | ||
Body Material: 4140
O-ring Material: Viton-70 Durometer

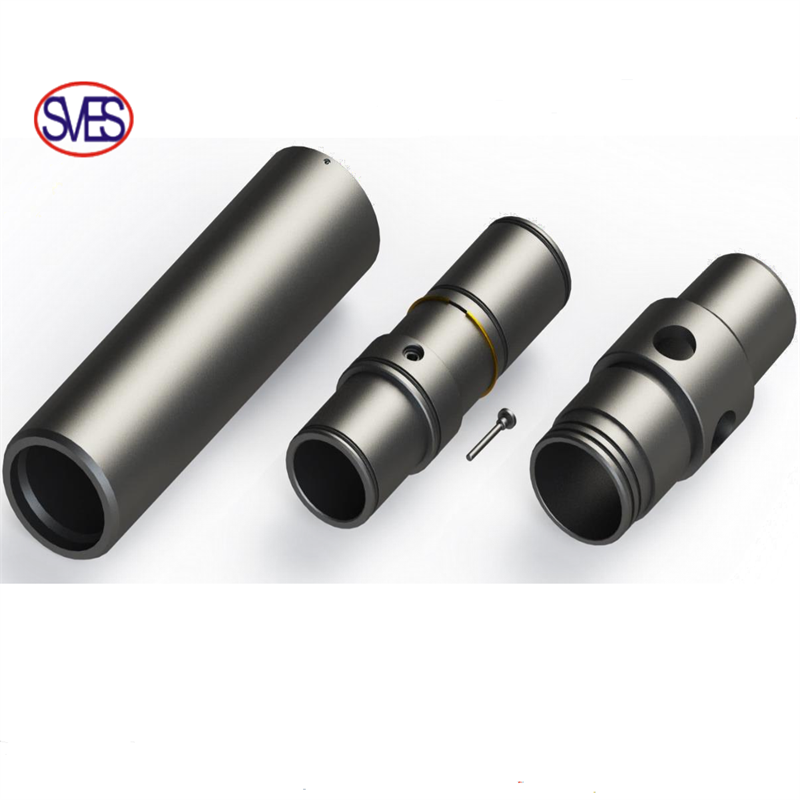

Pressure Vent Sub
Technical Information
Item | Description | ||
TYPE | 2-3/8in(60.3mm) | 2-7/8in（73.0mm） | |
| O.D. MAX | 77.8mm | 93.17mm | |
I.D. | 30mm | 40mm | |
Make-up Length/Overall Length | 475mm | 498mm | |
Connection | Upper Thread | 2-3/8 EU BOX | 2-7/8 EU BOX |
Bottom Thread | 2-3/8 EU PIN | 2-7/8 EU PIN | |
Vent area | 706.86 mm² | 1810mm² | |
Break Value of One Shear Pin | Theoretical Value：2.48MPa Reality Value：See《Shear Pin Specification Sheet》 | Theoretical Value：2.06MPa Reality Value：See《Shear Pin Specification Sheet》 | |
Minimum pressure of vent | 4.96MPa | 4.12MPa | |
Max Temp | 200℃ | ||
Pressure Rating | 120 MPa | ||
Tensile | P110 | ||
Body Material: 4140
O-ring Material: Viton-70 Durometer
Underbalance Sub Non Ported
Technical Information
Item | Description | |||||
TYPE | 2-3/8in(60.3mm) | 2-7/8in（73.0mm） | ||||
| Size of Glass | 1/2″ | 3/4″ | 3/8″ | 1/2″ | 3/4″ | |
Max. Differential | 24MPa | 48MPa | 16MPa | 17.2MPa | 27.6MPa | |
O.D. MAX | 79.5mm | 93mm | ||||
I.D. | 48mm | 60mm | ||||
Connection | Upper Thread | 2-3/8 EU BOX | 2-7/8 EU BOX | |||
Bottom Thread | 2-3/8 EU PIN | 2-7/8 EU PIN | ||||
Flow Area of Ports |
5338mm² | |||||
Make-up Length | 300mm | |||||
Body Material: 4140
O-ring Material: Viton-70 Durometer
Underbalance Sub Ported
Technical Information
Item | Description | |||||
TYPE | 2-3/8in(60.3mm) | 2-7/8in（73.0mm） | ||||
| Size of Glass | 1/2″ | 3/4″ | 3/8″ | 1/2″ | 3/4″ | |
Max. Differential | 24MPa | 48MPa | 16MPa | 17.2MPa | 27.6MPa | |
O.D. MAX | 79.5mm | 93mm | ||||
I.D. | 48mm | 60mm | ||||
Connection | Upper Thread | 2-3/8 EU BOX | 2-7/8 EU BOX | |||
Bottom Thread | 2-3/8 EU PIN | 2-7/8 EU PIN | ||||
Make-up Length | 168 mm | |||||
Body Material: 4140
O-ring Material: Viton-70 Durometer
Wheel Roller Tandem sub
Technical Information
Item | Description | ||||
TYPE | 51 | 63 | 73 | 89 | |
| O.D. MAX | 51 | 63.5 | 73 | 89mm | |
Overall Length | 216.4mm | 221mm | 280mm | 266mm | |
Connection | Upper Thread | 1-11/16 8 STUB ACME PIN | 2 1/8-8ACME PIN | 2 3/8-6ACME PIN | 3 1/16-6ACME PIN |
Bottom Thread | 1-11/16 8 STUB ACME PIN | 2 1/8-8ACME PIN | 2 3/8-6ACME PIN | 3 1/16-6ACME PIN | |
Body Material: 4140

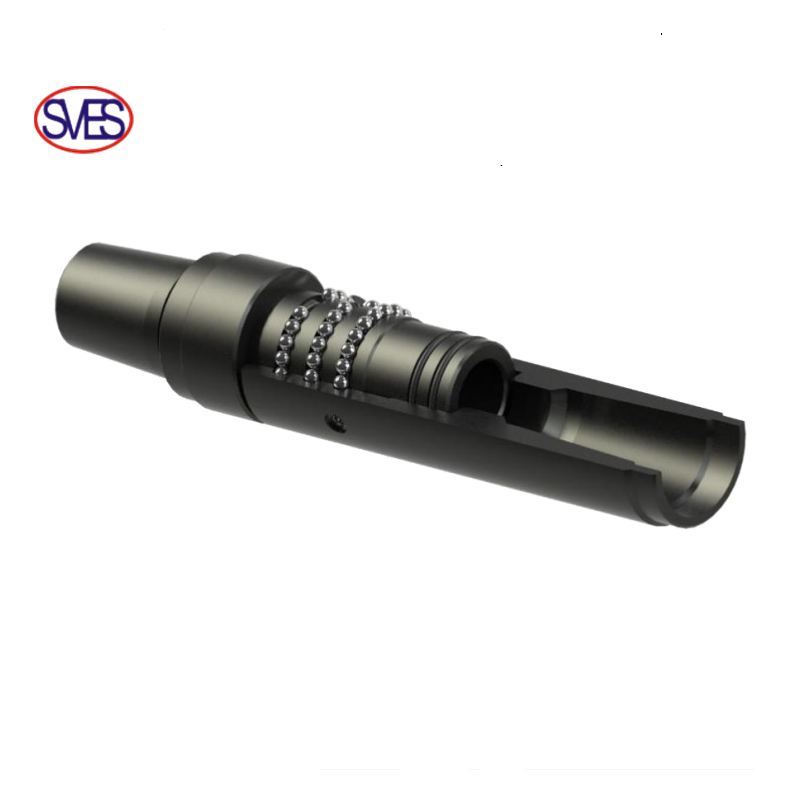

Swivel Joint
Technical Information
Swivel Joint is used in CT operation, the upper sub and the bottom sub of the product is connected by steel balls, so the upper sub can rotate around the bottom sub in order to release the torque of CT.
1. Big drift diameter for discharge and dropping ball operation.
2. Release the torque quickly.
3. Sample 、Reliable、Easy to connection with coiled tubing.
Item | Description |
| OD. | φ54mm |
Full-bore | φ25.4mm |
Overall Length | 263mm |
Connect Thread | 1.5AMMT（B×P） |
Max Pressure | 70MPa |
Max Tensile Strength | 350KN |
Max Temp. | 200 ℃(392 °F) |
Tubing Swivel Sub
Technical Information
Tubing Swivel Sub is designed to allow the tubing above and below a TCP gun assembly to rotate independently. When run in conjunction with eccentric weight bars or orienting fins, above or between TCP gun systems, the gun assembly can rotate freely to orient for perforating in the desired direction of a deviated or horizontal well
1. High quality journal bearings.
2. Compact design results in small OD and large bore.
3. Ensures free rotation under tension, compression and side loading.
4. Design allows for unrestricted flow inside tubing
5. Cost effective and easy maintenance
Item | Description | |
TYPE | 2-3/8in(60.3mm) | 2-7/8in（73.0mm） |
| O.D.max | 3.386in(86mm) | 3.669in(93.2mm) |
I.D.max | 1.95in(50mm) | 2.4in(61mm) |
Overall Length | 19.8in(503mm) | 20.67in(525mm) |
Max Temp | 400°F(204°C) | |
Connection | 2-3/8 EU (B×P) | 2-7/8 EU (B×P) |
Tensile | 115000lb（512KN） | 125000lb（556KN） |
Max Pressure | 14500PSI(100MPa) | 10000PSI(70MPa) |
Baker 10， Baker 20 Redress kit repair kit
All redress kit and repair kit is made fro FKM material, hardness 90, durable for at least 5years.
Material list
ASTMD1418 | ISO1629 |
NBR | NBR |
H-NBR | H-NBR |
CR | CR |
X-NBR | X-NBR |
ACM | ACM |
AEM | AEM |
MQ | MQ |
VMQ | VMQ |
PVMQ | PVMQ |
PMQ | PMQ |
FVMQ | FMQ |
FKM | FKM |
FFKM | FFKM |
PTFE | PTFE |
AU | AU |
EU | EU |
ECO | ECO |
CSM | CSM |
NR | NR |
IR | IR |
BR | BR |
SBR | SBR |
EPDM | EPDM |
EPM | EPM |
T | T |
IIR | IIR |
CIIR | CIIR |
BIIR | BIIR |
Other products：
(1)O-rings， seals for all industrial condition
(2) Rectangular, V-shaped, Y-shaped rubber seals
Produce high-quality O-ring products with inner diameters from 0.7 - 1200mm, with an annual production capacity of 50 million pieces. Products are widely used in hydraulic pneumatics, construction machinery, automobiles and motorcycles, high-voltage electrical appliances, instrumentation, oilfield drilling, chemical industry, aerospace and other fields.
Product performance, appearance quality and dimensional tolerance meet or exceed the requirements of relevant domestic and foreign standards such as AS568A, ISO3601, ASTM D2000, JISB2401, MIL-STD-413B
(3) Rubber gasket for plate heat exchanger
We produces plate heat exchanger gaskets of various cross-sectional shapes with a single-piece heat exchange area of 0.02-2.8 square meters, with an annual production capacity of 1.2 million pieces. The products meet the requirements of NB/T47004, and other standards. More than 20 major domestic plate heat exchanger manufacturers provide main supporting services, and the end users of the products are located in heating and heating, petrochemical, seawater desalination, nuclear power, textile industry, metallurgical industry, shipbuilding industry, food processing, medicine and health and other industries. Widely acclaimed in the industry.
(4) Miscellaneous rubber parts and elastic rubber parts with metal skeleton
Production of special-shaped rubber products for automobiles, motorcycles and other industries; production of high-pressure sinks (with skeleton) for oil drilling, reservoir testing, well workover, well sealing, and cementing, hydraulic liner hanger drill pipe and other seals and oil and gas well pressure Rubber cartridges for cracking and acidizing. Production of metal skeleton elastic rubber gates, elastic rubber eccentric valve plates, etc. for the valve and pump industries.
Temperature range :
-60～+200℃ |
