Jars

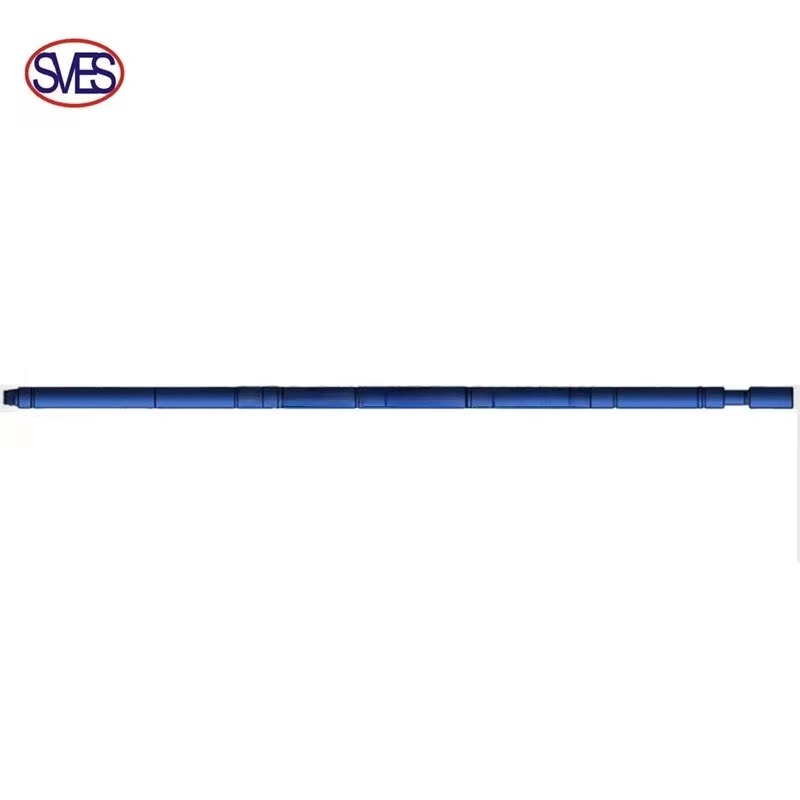

Hydraulic drilling jar integrates upward jarring with downward jarring. It is a hydraulic type drilling jar, which is used in all kirds of well conditicn, it generates up and down jarring force by lifting and releasing drill stems when the drilling tools were stuck and make sure drilling operation can go smoothly.
Specification
Model | OD mm(inch) | ID mm(inch) | Full Stroke mm(inch) |
Conn. | Max. Working Load (KN) | Max. Working Torque KN·m |
SVHDJ121 | 121(4 3/4) | 57(2 1/4) | 650 (25 1/2) | NC38 | 1100 | 15 |
SVHDJ165 | 165(6 1/2) | 69(2 23/32) | 650 (25 1/2) | NC50 | 2000 | 25 |
SVHDJ203 | 203(8) | 76(3) | 600 (23 1/2) | 6 5/8REG | 2800 | 35 |
Hydraulic-mechanical Drilling Jar

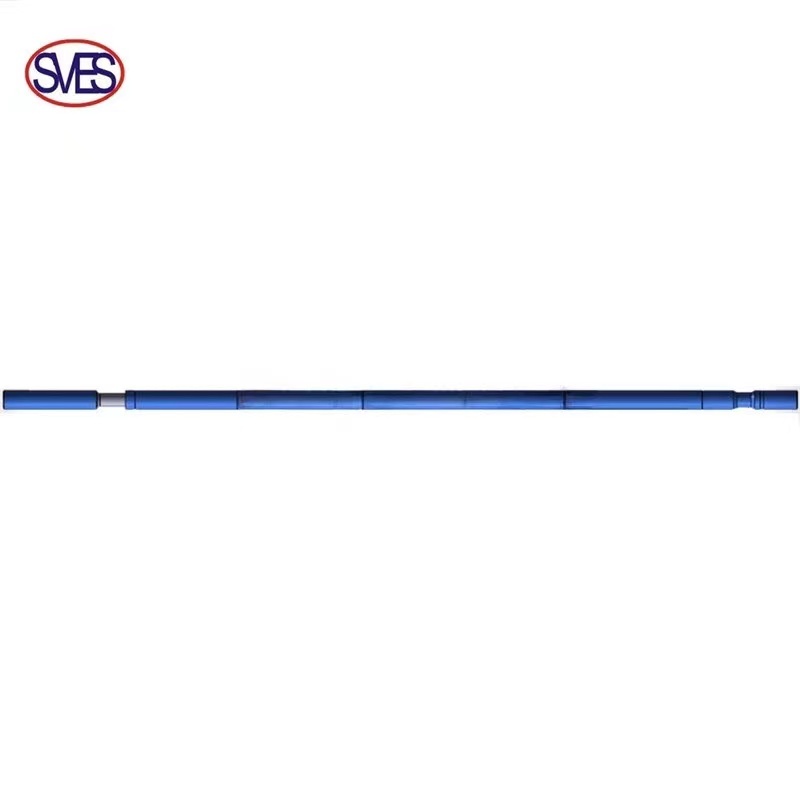

Hydraulic-mechanical drilling jar integrates hydraulic principle with mechanical principle, it’s a new type drilling jar, which can suit for all kinds of drilling operations, and go with drilling tools assembly to descend the well when used.
Specification
Model |
OD mm(inch) |
ID mm(inch) |
Conn. |
Max. Tensile Load KN |
Max. Working Torque (KN·m) | Rated Force | |
Upward Jarring Force (KN) | Downward Jarring Force (KN) | ||||||
SVHMDJ121 | 121(4 3/4) | 44.5(1 3/4) | NC38 | 1100 | 15 | 350±30 | 250±30 |
SVHMDJ165 | 165(6 1/2) | 57.2(2 1/4) | NC50 | 2000 | 25 | 700±30 | 350±30 |
SVHMDJ203 | 203(8) | 70(2 3/4) | 6 5/8REG | 2800 | 35 | 1000±30 | 500±30 |
Double Acting Mechanical-Hydraulic Drilling Jar

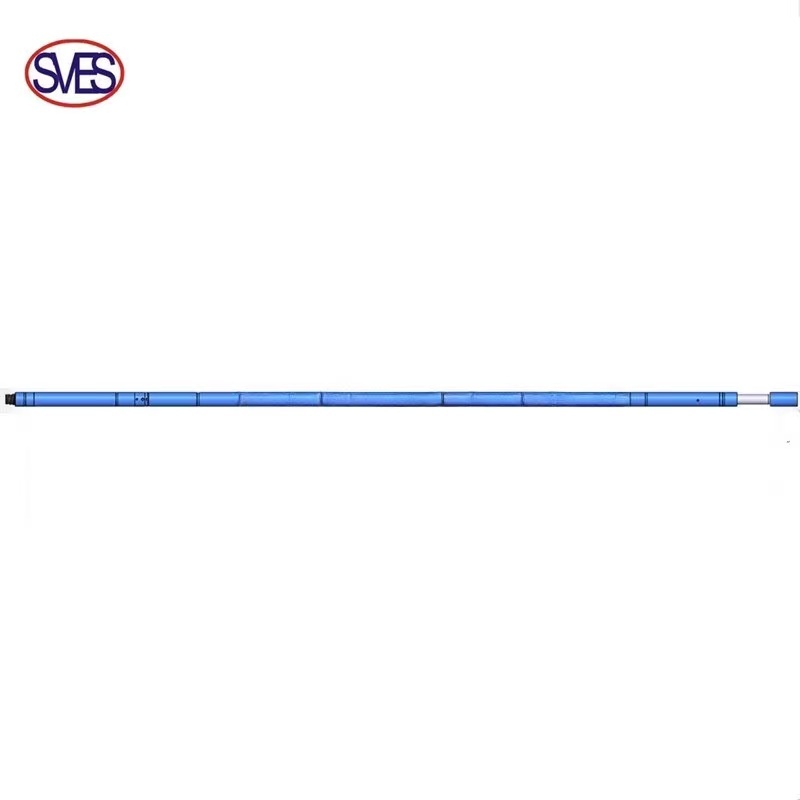

Double acting mechanical-hydraulic drilling jar integrates upward jarring with downward jarring and has all advantages of both mechanical drilling jar and hydraulic drilling jar, it applies to all kinds of drilling operations and be used through combining with drilling tools.
Specification
Model |
OD mm(inch) |
ID mm(inch) |
Conn. | Max. Tensile Load KN | Max. Working Torque (KN·m) | Rated Force | |
Upward Jarring Force (KN) | Downward Jarring Force (KN) | ||||||
SVJYZ121 | 121(4 3/4) | 44.5(1 3/4) | NC38 | 1100 | 15 | 350±30 | 250±30 |
SVJYZ165 | 165(6 1/2) | 57(2 1/4) | NC50 | 1500 | 25 | 700±30 | 350±30 |
SVJYZ203 | 203(8) | 70(2 3/4) | 6-5/8REG | 2600 | 35 | 1000±30 | 500±30 |

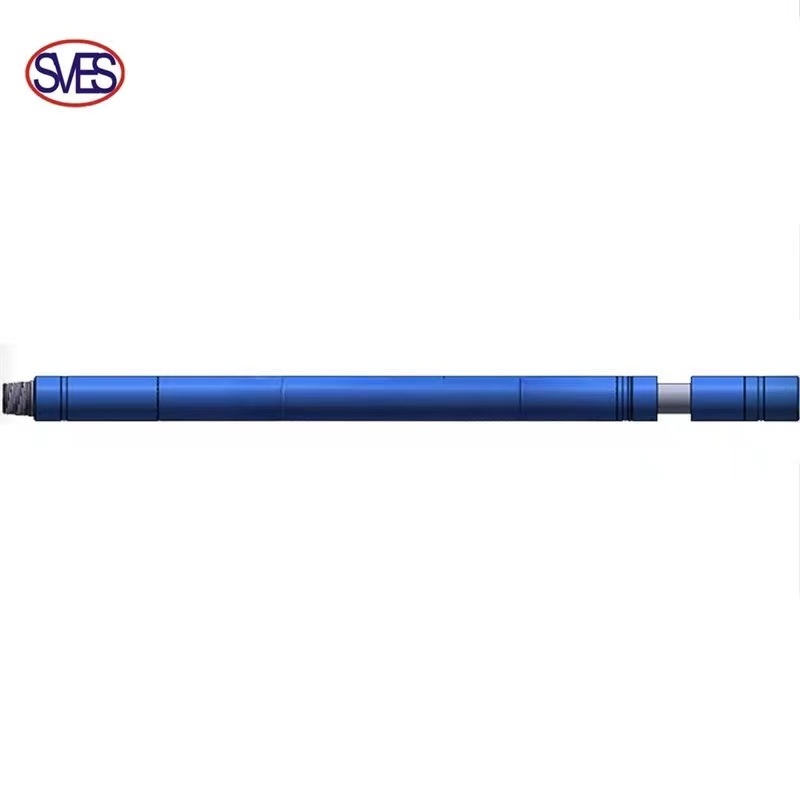

Mechanical drilling jar is a full mechanical type drilling jar and releasing stuck tool. It integrates upward jarring with downward jarring releases the tight pull or the sticking or other drilling troubles during drilling. It is a part of drill stem when it needn't jarring and it can work at anytime when need jarring.
Specification
Model | BZ121 | BZ165/159 | BZ203/197 |
OD mm(inch) | 121(4 3/4) | 165(6 1/2)/159(6 1/4) | 203(8)/197(7 3/4) |
ID mm(inch) | 50.8(2) | 57.2(2 1/4) | 71.4(2 13/16) |
OAL(Locking place)mm(inch) | 6370(251) | 7015(276) | 7310(288) |
Upper Stroke mm(inch) | 210(8 1/4) | 142(5 9/16) | 145(5 11/16) |
Lower Stroke mm(inch) | 197(7 3/4) | 172(6 3/4) | 178(7) |
Conn. | NC38 | NC50 | 6-5/8REG |
Max. Tensile Load (MN) | 1.4 | 2.2 | 2.5 |
Max. Working Torque (KN·m) | 13 | 15 | 20 |
Upward Jarring Force (KN) | 450 | 630 | 820 |
Downward Jarring Force (KN) | 230 | 360 | 460 |
Pumping Area (cm2) | 62 | 100 | 174 |
Double Acting Drilling Accelerator

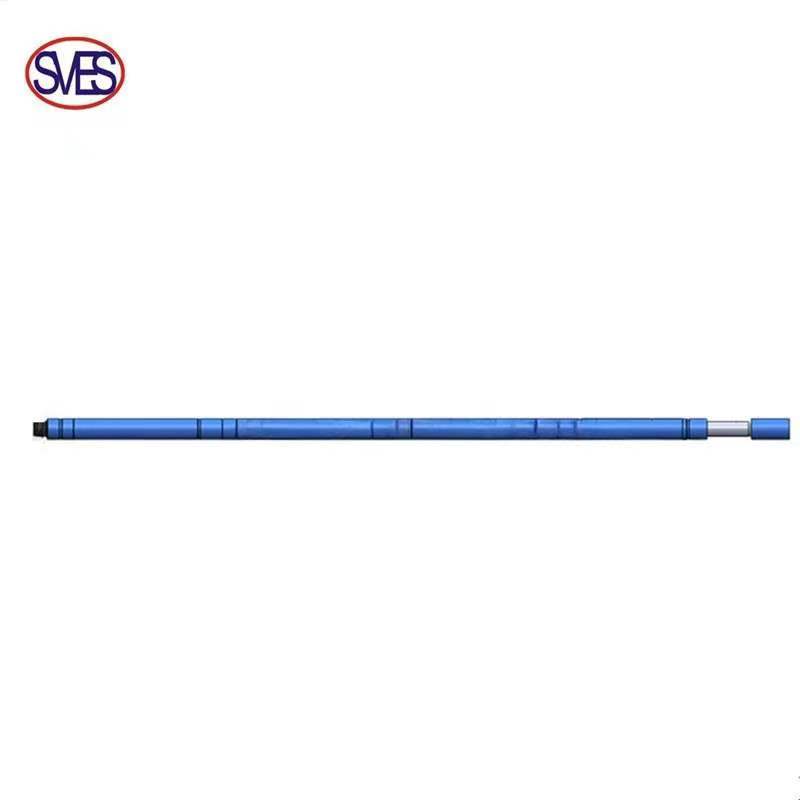

The double acting drilling intensifier is a downhole drilling tool to enhance jarring function for the full hydraulic drilling jar, so it must be used with the full hydraulic drilling jar together.
