Pump Rod Blowout Preventer(BOP)

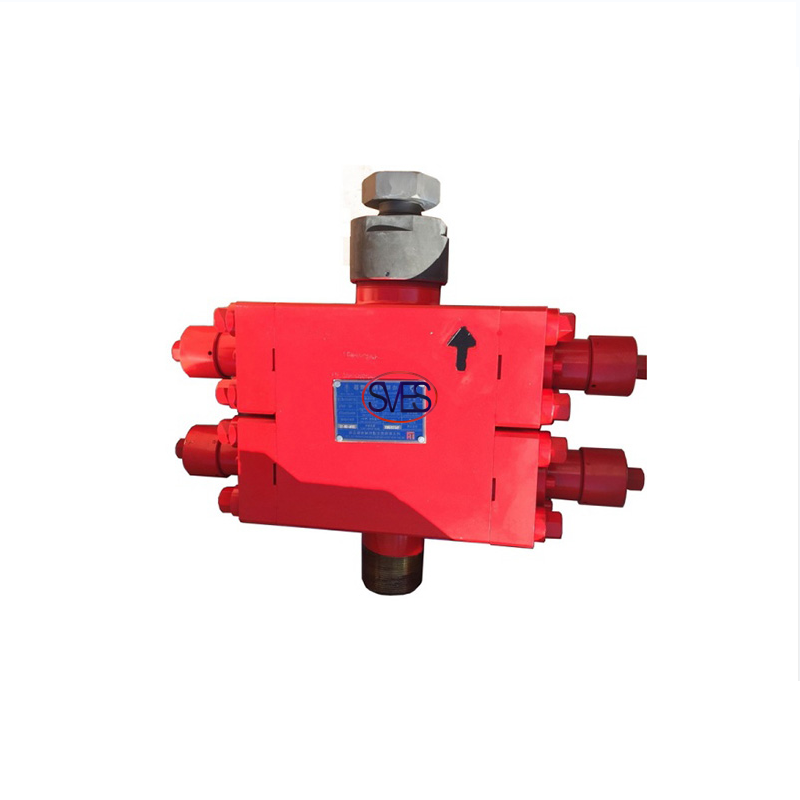

Manual Double Ram BOP 3 1/8"-3000psi to 6000 psi
Product Introduction
The manual double ram BOP is a safety device that seals the wellhead when working with pump rods. It prevents the high pressure gas, oil, and water in the formation from escaping during workover operations and pump rod lifting. Also called as Pump Rod Blowout Preventer, or Pump Rod BOP. If an abnormal condition occurs while lifting the pump rod, the operator can use a screw or a hydraulic system to activate the pipe ram and close the gap around the pump rod. This ensures the wellhead is fully sealed, the production is safe, and the blowout risk is minimized, protecting the environment.
Feature
◆ The BOP is made of high-quality alloy steel castings.
◆ The chamber has an oval shape, which distributes the stress evenly.
◆ The BOP is light-weight, low-profile, compact, easy to operate, and user-friendly.
◆ The BOP consists of the body, ram assembly, bonnet, piston, screw rod, and other components.
Technical Parameter
Working Pressure: 20.7MPa(3,000psi)~42MPa(6,000psi)
Bore: 79mm（3 1/8”）
Connection Type: Tubing thread（TBG、EUE）,clamp collar
Working Medium: Oil, natural gas, water, Hydrogen sulfide gas

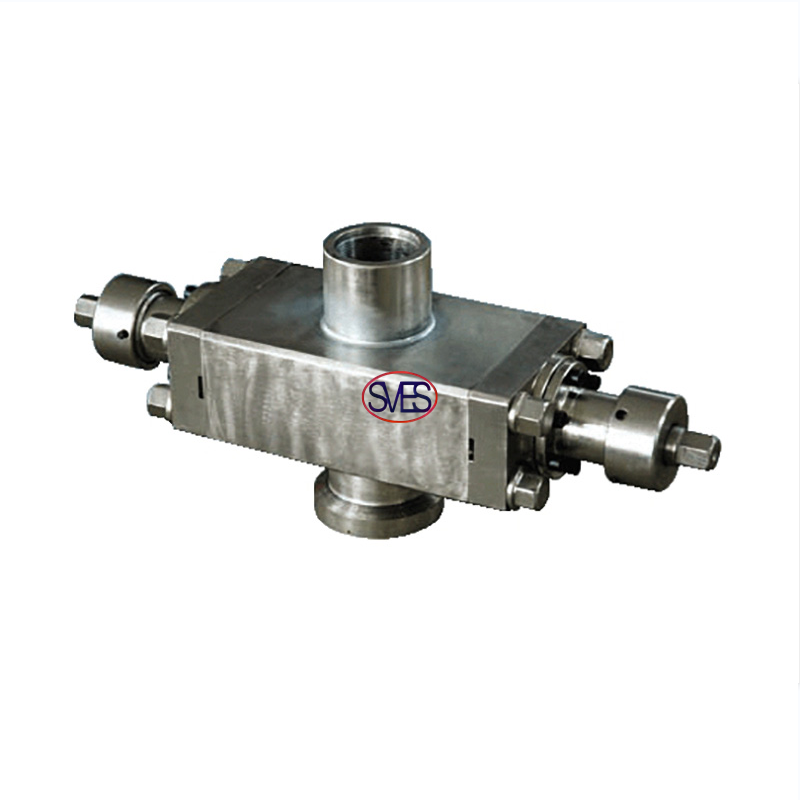

Manual Single Ram BOP 2 9/16"-3000psi to 6000psi
Product Introduction
The manual single ram BOP is a safety device that seals the wellhead when working with pump rods. It prevents the high pressure gas, oil, and water in the formation from escaping during workover operations and pump rod lifting. Also called as Pump Rod Blowout Preventer, or Pump Rod BOP. If an abnormal condition occurs while lifting the pump rod, the operator can use a screw or a hydraulic system to activate the pipe ram and close the gap around the pump rod. This ensures the wellhead is fully sealed, the production is safe, and the blowout risk is minimized, protecting the environment.
Feature
◆ The BOP is made of high-quality alloy steel castings.
◆ The chamber has an oval shape, which distributes the stress evenly.
◆ The BOP is light-weight, low-profile, compact, easy to operate, and user-friendly.
◆ The BOP consists of the body, ram assembly, bonnet, piston, screw rod, and other components.
Technical Parameter
Working Pressure: 20.7MPa(3,000psi)~42MPa(6,000psi)
Bore: 65mm（2 9/16”）~76mm(3”)
Connection Type: Tubing thread（TBG、EUE）,clamp collar
Working Medium: Oil, natural gas, water, Hydrogen sulfide gas
