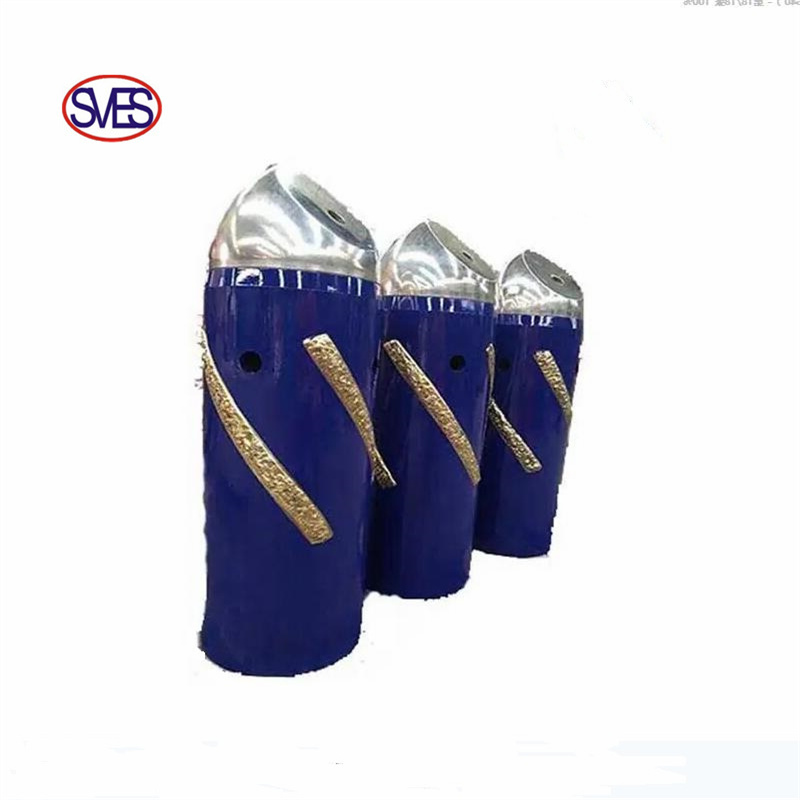

Reamer Shoe And Guide Shoe
Reamer shoes overcome wellbore obstructions and guide the casing or liner to total depth. Our reamer shoe designs use an eccentric guide nose to negotiate ledges and other obstructions while its integrated cutting structures simultaneously ream out tight spots.
Our reamer shoe is a economical and practical tool. It has short shape and best cutting
structure. So it can relieve the expectable and unexpectable difficulties in running casing process.
Specification
Model | Upper Conn. | OD mm(inch) | OAL mm(inch) |
KYF270 | According to client's requirments | 304.8(12) | 1056(41 1/2) |
Casing guide shoe is mainly used as a running casing guide equipment and connecting the bottom of casing, to make casing spear towards well wall and make casing go into smoothly when running casing.
Specification
Model | Casing Size (inch) | Guiding Shoe |
Conn. | |
OD mm(inch) | OAL mm(inch) | |||
TY194 | 7 | Φ194.5 (7 21/32) | 380(14 31/32) | 7 BCSG |
TY270 | 9 5/8 | Φ270(10 5/8) | 380(14 31/32) | 9 5/8 BCSG |
TY365 | 13 3/8 | Φ365(14 3/8) | 380(14 31/32) | 13 3/8 BCSG |
TY533 | 20 | Φ533(21) | 450(17 23/32) | 20 BCSG |
