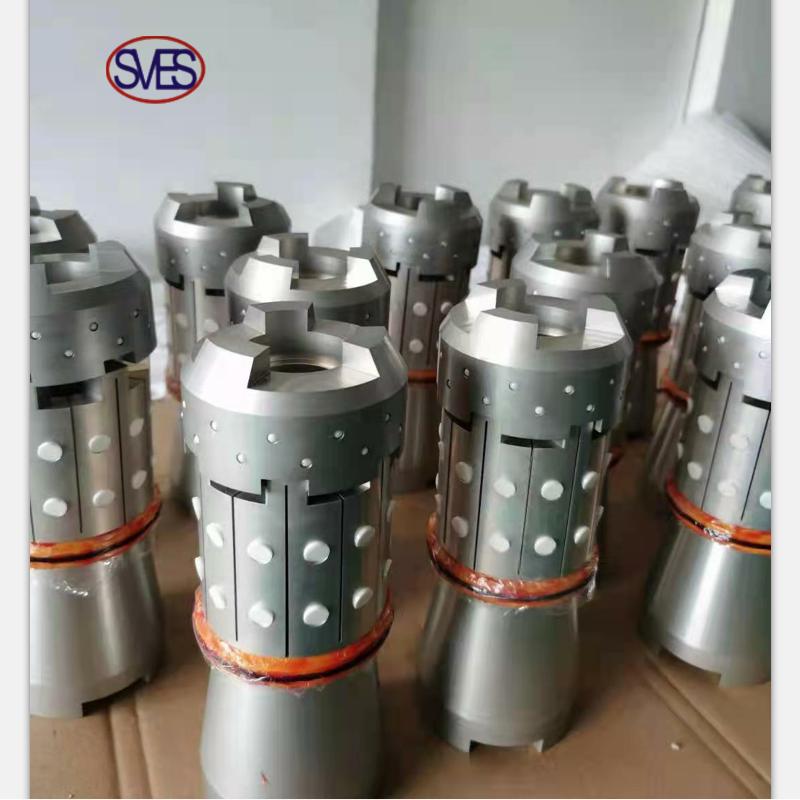

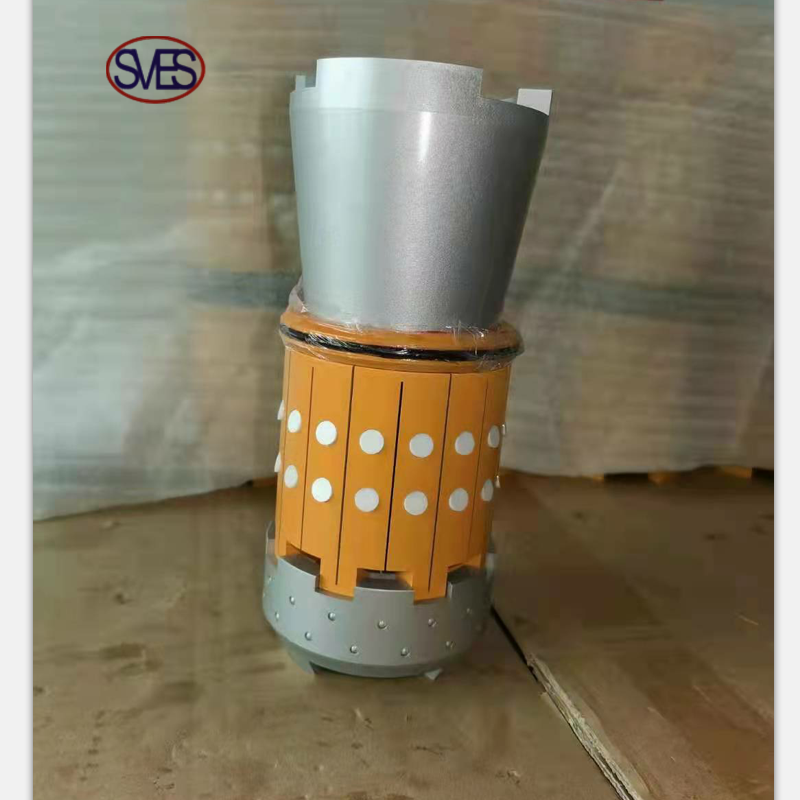

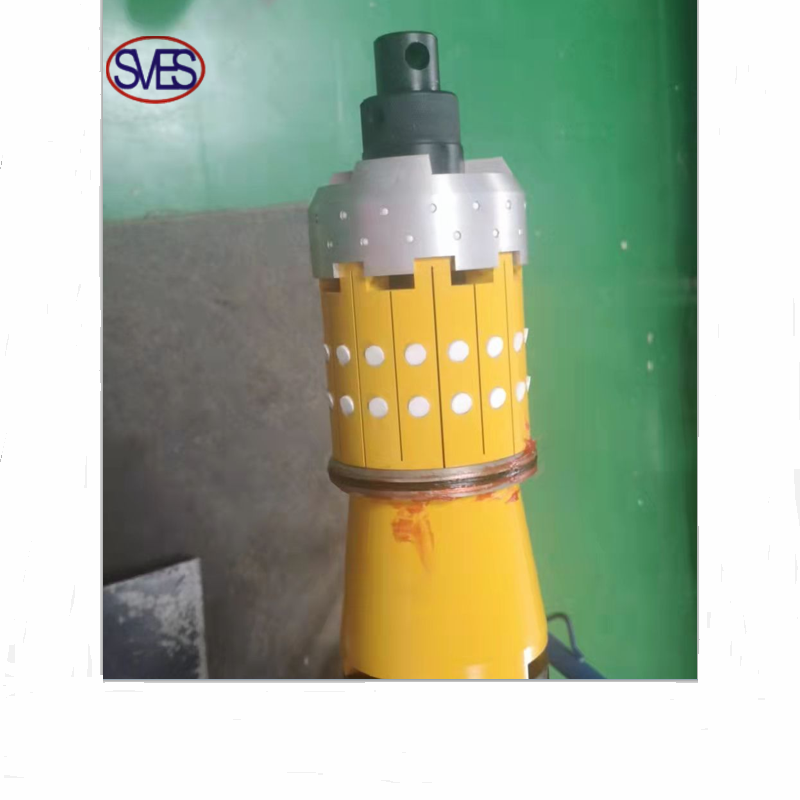

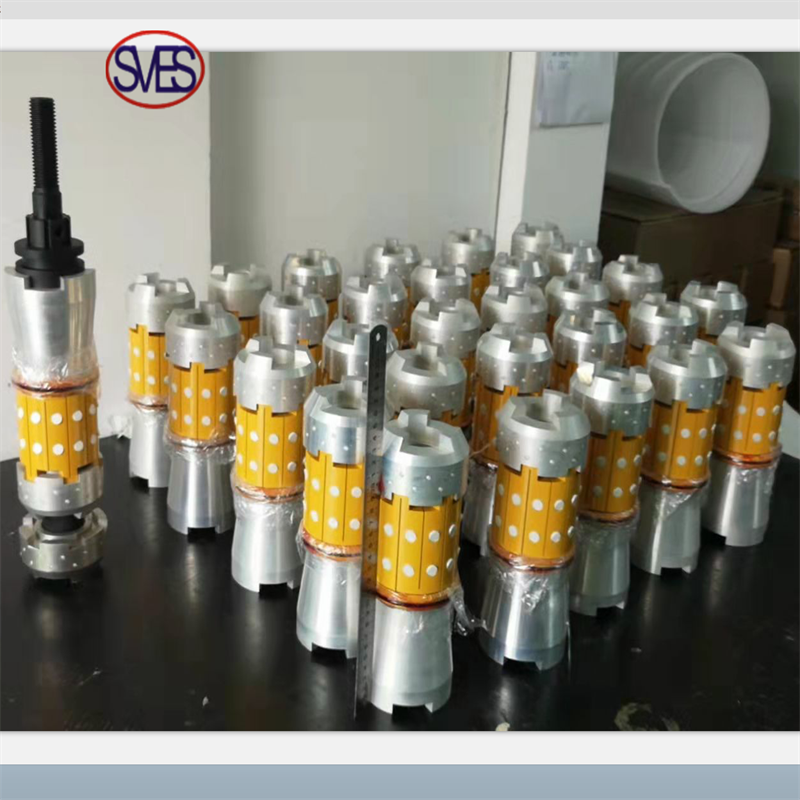

Dissolvable Frac Seat
Fast Drill Dissolvable Frac Seat
Specification
| Casing | Weight | OD of Ball Seat | Length | Grade of Pressure | Range of Temp. | ID of Ball Seat | Ball Size | Setting Power |
| Size | ||||||||
| in. (mm) | Lb/ft | in. (mm) | in. (mm) | Psi (Mpa) | Deg F (Deg C) | in. (mm) | in. (mm) | t (tons) |
| 5 1/2 (139.7) | 17~20 | 4.409 (112) | 10.35 (263) | 10,000 (70) | 68~350 (20~177) | 2.362 (60) | 3.15 (80) | 16 |
| 20~23 | 4.213（107） | 10.43 (265) | 10,000 (70) | 68~350 (20~177) | 2.362 (60) | 2.76 (70) | 16 | |
| 23-29.7 | 4.055（103） | 10.59 (269) | 10,000 (70) | 68~350 (20~177) | 2.205 (56) | 2.76 (70) | 18 | |
| 5 (127) | 21.4 | 3.740 (95) | 9.33 (237) | 10,000 (70) | 68~350 (20~177) | 1.969 (50) | 2.48 (63) | 12 |
| 4 1/2 (114.3) | 11.6 | 3.740 (95) | 9.33 (237) | 10,000 (70) | 68~350 (20~177) | 1.969 (50) | 2.48 (63) | 12 |
| 13.5~15.1 | 3.583 (91) | 9.33 (237) | 10,000 (70) | 68~350 (20~177) | 1.969 (50) | 2.48 (63) | 12 |
•Ultralight and compact design
• Light, fine cuttings, easily circulated
• ZERO cast iron parts
• Pressure rating up to 10,000 psi (STD)
• Temperature rating up to 302°F (STD)
• Used with dissolvable frac ball
• Compatible with standard wireline or hydraulic setting tools
• Robust anti-preset design
Water solubility dissolvable frac plug is a total new block-off downhole tool developed from conventional bridge plug. It organically mixes the patent soluble material, polymer degradable material and high strength ceramic technology, thus gets an outstanding performance of mechanism, solubility and degradation for the multi-staged fracture operation in the oil and gas well.
The body of dissolvable frac plug applies miscellaneous soluble metal materials, as well as that the rubber applies polymer degradable material; The dissolvable packer has 70Mpa pressure strength. According to different working condition, the dissolvable packer has tailored formula for different solubility time in order that releasing the reservoir block of horizontal well and highly deviated well automatically.
Four series dissolvable bridge plugs upon working temperature (60-80℃,80-100℃,100-120℃,120-150℃), the outer diameter of bridge plug is from 95mm to 146mm. All models are testified in oil and gas well operation with 100% success rate.
Characteristics
- Made of compound high strength soluble metals, guarantee the material strength under high temperature.
- Customized formula and the solubility time is flexible.
- Special cracking technology
- Good compatibility and inheritance, unnecessary to change existing strings structure, no risks resulted from drilling out and reduce the damage of casings.
