Fishing Tools

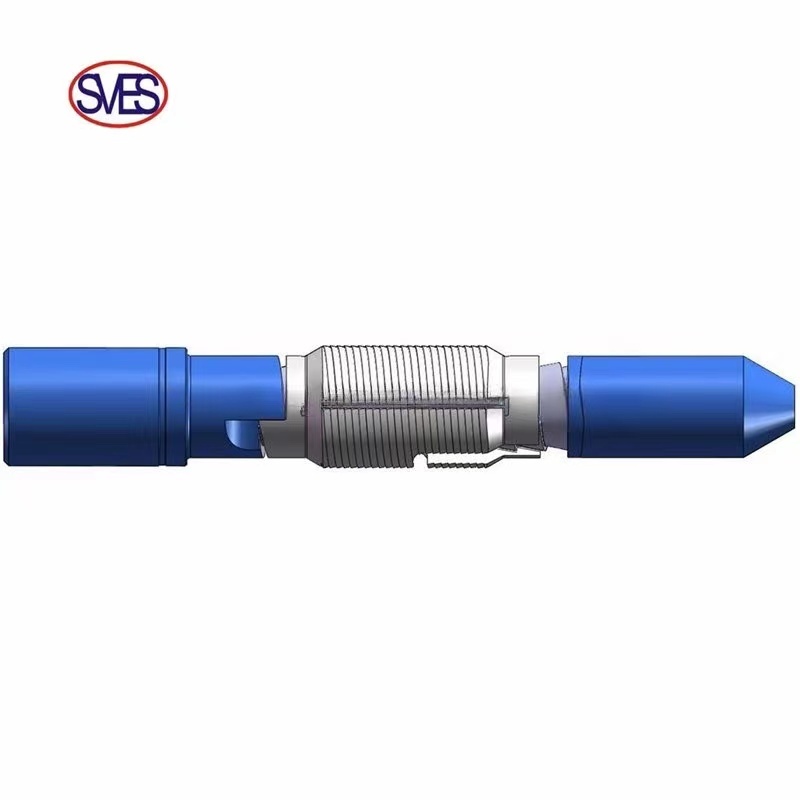

AJ safety joint
It is one kind of safety back off tool which is connecting with drilling string and all kinds of working string in downhole operation.
Specification
Model | OD mm(inch) | ID mm(inch) | Conn. |
SVAJ-C89 | 89(3 1/2) | 44(1 47/64) | NC26 |
SVAJ-C95 | 95(3 3/4) | 44(1 47/64) | NC26 |
SVAJ-C105 | 105(4 1/8) | 50.8(2) | NC31 |
SVAJ-C121 | 121(4 3/4) | 62(2 7/16) | NC38 |
SVAJ-C127 | 127(5) | 62(2 7/16) | NC38 |
SVAJ-C159 | 159(6 1/4) | 82(3 1/4) | NC50 |
SVAJ-C165 | 165(6 1/2) | 82(3 1/4) | NC50 |
SVAJ-C178 | 178(7) | 82(3 1/4) | NC50 |
SVAJ-C203 | 203(8) | 82(3 1/4) | 6 5/8REG |
SVAJ-C229 | 229(9) | 88.9(3 1/2) | 7 5/8REG |

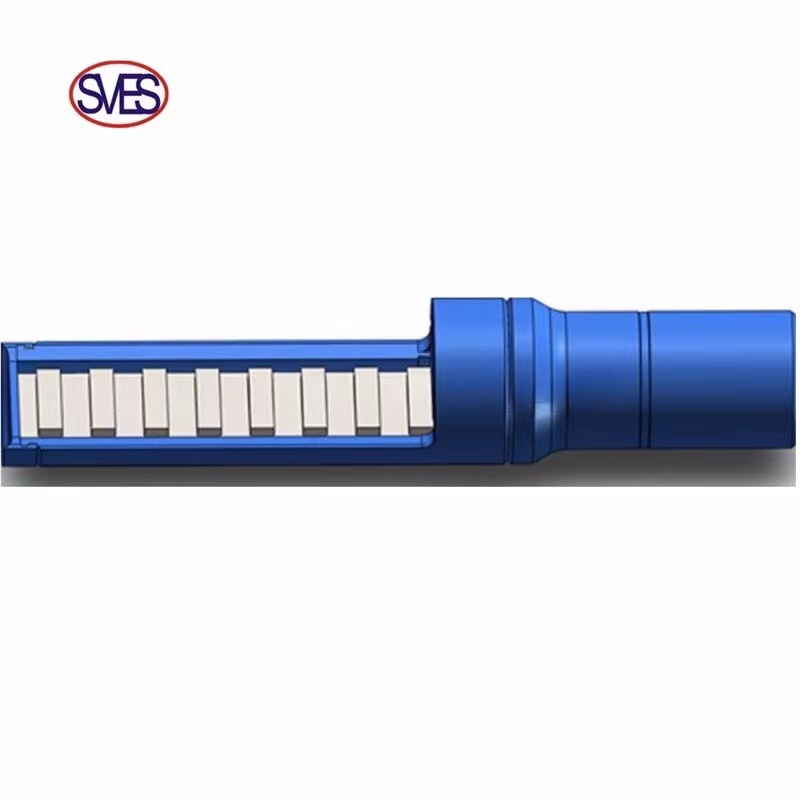

H safety joint
It is one kind of downhole safety equipment for fishing,washover and testing.
Specification
Model | OD mm(inch) | Bore ID mm(inch) | Conn. |
SVHJ105 | 105(4 1/8) | 38.1(1 1/2) | NC31(NC31LH) |
SVHJ121 | 121(4 3/4) | 50.8(2) | NC38(NC38LH) |
SVHJ159 | 159(6 1/4) | 57.2(2 1/4) | NC50 |
SVHJ165 | 165(6 1/2) | 70(2 3/4) | NC50(NC50LH) |
SVHJ168 | 168(6 5/8) | 70(2 3/4) | NC50 |
SVHJ168 | 168(6 5/8) | 71(2 13/16) | NC50 |
SVHJ178 | 178(7) | 70(2 3/4) | NC50 |
SVHJ203 | 203(8) | 80(3 5/32) | 6 5/8REG |

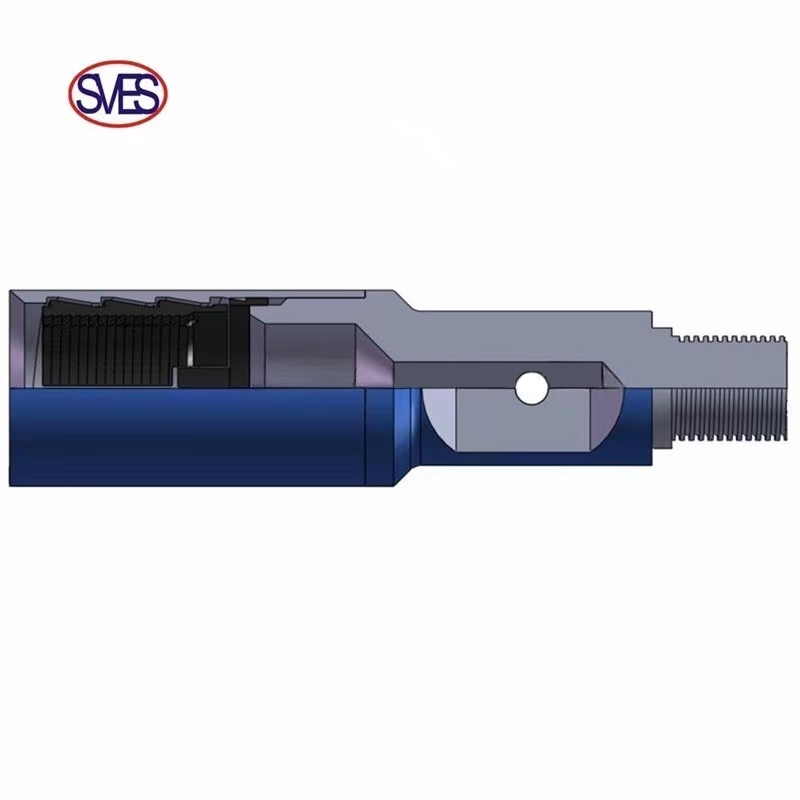

Overshot
Releasing and Circulating Overshot
Overshot is one of the fishing tools which is fishing the pipes externally. It can catch drill collar, drill pipe, tubing, subs and other pipes.
Specification
Model | Overshot OD mm(inch) | MAX. Catch Sizes mm(inch) |
Conn. | |
Spiral Grapple mm(inch) | Basket Grapple mm(inch) | |||
SVLT-T324 | 324(12 3/4) | 282.6(11 1/8) | 266.7(10 1/2) | 6 5/8REG |
SVLT-T298 | 298(11 3/4) | 257.2(10 1/8) | 228.6(9) | 6 5/8REG |
SVLT-T270 | 270(10 5/8) | 228.6(9) | 203.2(8) | 6 5/8REG |
SVLT-T206 | 206(8 1/8) | 177.8(7) | 159(6 1/4) | NC50 |
SVLT-T146 | 146(5 3/4) | 117.5(4 5/8) | 108(4 1/4) | NC38 |
SVLT-T102 | 102(4) | 77.8(3 1/16) | 65(2 9/16) | NC26 |

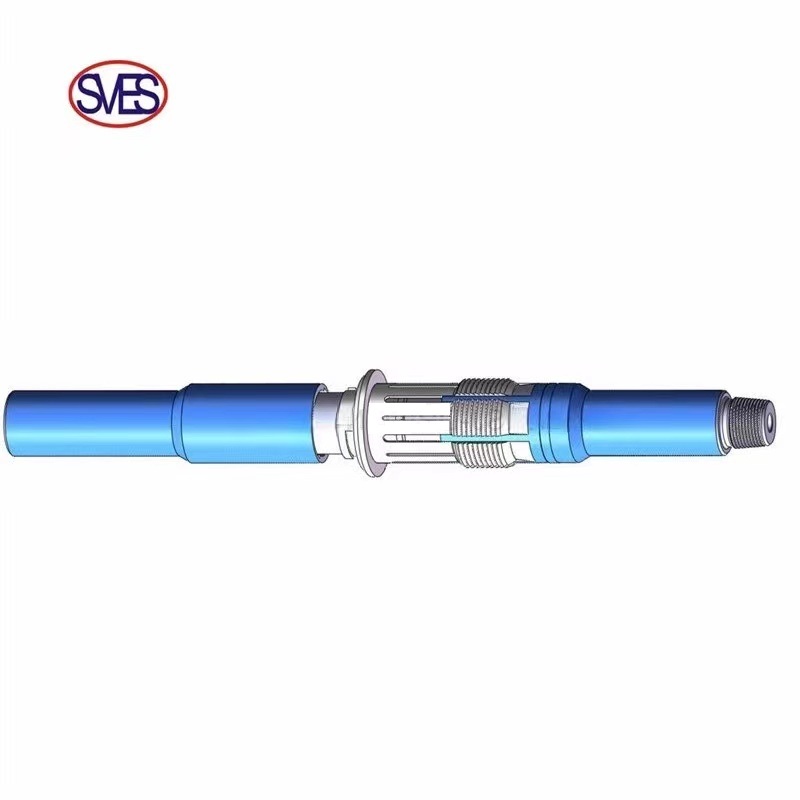

Short Catch Overshot
Short catch overshot is used for catching short length fish which the stuck point is closed or above the coupling, such as tubing, drill pipe, sucker rod and subs.
Specification
Model | Overshot OD mm(inch) | Fishing Range mm (inch) |
Conn. | Hole Size mm (inch) | Tensile Load KN |
SVDYLT95 | 95(3 3/4) | 47 ～ 49 (1 27/32) ～ (1 59/64) | NC26 | 114.3 ～ 120.8 (4 1/2) ～ (4 3/4) | 450 |
SVDYLT105 | 104.8(4 1/8) | 59.7 ～ 61.3 (2 11/32) ～ (2 13/32) | NC31 | 127 ～ 139.7 (5) ～ (5 1/2) | 500 |
SVDYLT146 | 146(5 3/4) | 100.4 ～ 103.2 (3 15/16) ～ (4 1/16) | NC38 | 168 ～ 178 (6 5/8) ～ (7) | 630 |
SVDYLT206 | 206(8 1/8) | 165 ～ 170 (6 1/2) ～ (6 11/16) | NC50 | 224 ～ 228 (8 13/16) ～ (9) | 1018 |

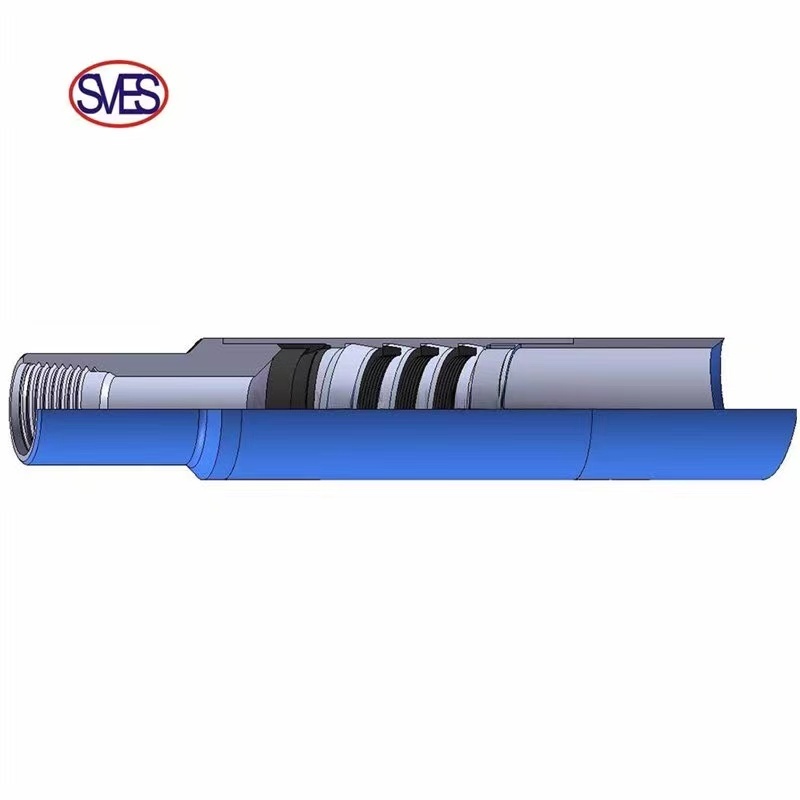

Casing spear
Casing spear is a tool for fishing internally.It has features of simple operation, high strength, large grapple area, wide fishing range. It can be used individually, and aslo can be used with cutting tools to finish cutting and fishing at one time. If the fishing work is not successful, tools can be easily release from the fish.
Specification
Model | Casing Size mm (inch) | Sub OD mm (inch) | Spear ID mm (inch) | Conn. |
SVLM7-AZ | 177.8(7) | 146(5 3/4) | 38.1(1 1/2) | NC38 |
SVLM9 5/8-AZ | 244.5(9 5/8) | 210(8 17/64) | 50.8(2) | 4 1/2REG |
SVLM13 3/8-AZ | 339.7(13 3/8) | 299(11 49/64) | 71(2 13/16) | NC50 |
SVLM18 5/8-AZ | 473.1(18 5/8) | 299(11 49/64) | 71(2 13/16) | 6 5/8REG |
SVLM20-AZ | 508(20) | 299(11 49/64) | 71(2 13/16) | 6 5/8REG |
Releasing Spear
Releasing spear is one of fishing tools to fishing internally. Mainly used to catch drill pipe, casing,tubing and other tubulous junks during oil and gas field of well repairing.It can be used with other tools such as casing cutter,jars.If the fish is struck,releasing the spear and lifting the drilling tools.
Specification
Model | Mandrel OD mm (inch) | Fish ID mm(inch) | Conn. |
SVLM-T80 | 80(3 5/32) | 38.1 ～ 79.38(1 1/2 ～ 3 1/8) | NC23 |
SVLM-T89 | 89(3 1/2) | 47.4 ～ 66(1 7/8 ～ 2 39/64) | NC26 |
SVLM-T105 | 105(4 1/8) | 63.5 ～ 79.38(2 1/2 ～ 3 1/8) | NC31 |
SVLM-T105 | 105(4 1/8) | 79.38 ～ 104.78(3 1/8 ～ 4 1/8) | 2 3/8REG |
SVLM-T114 | 114(4 1/2) | 63 ～ 66(2 31/64 ～ 2 39/64) | 3 1/2REG |
SVLM-T121 | 121(4 3/4) | 54 ～ 102.3(2 1/8 ～ 4 1/32) | NC38 |
SVLM-T127 | 127(5) | 133.35 ～ 180.98(5 1/4 ～ 7 1/8) | NC38 |
SVLM-T159 | 159(6 1/4) | 171.8(6 49/64) | NC46 |
SVLM-T168 | 168(6 5/8) | 86 ～ 170(3 25/64 ～ 6 45/64) | NC50 |
SVLM-T203 | 203(8) | 230.2(9 1/16) | 6 5/8REG |
SVLM-T209 | 209.6(8 1/4) | 216.8 ～ 224.4(8 17/32 ～ 8 27/32) | 6 5/8REG |
SVLM-T209 | 209.6(8 1/4) | 315.3 ～ 323.0 (12 27/64 ～ 12 23/32) | 6 5/8REG |
Releasing Back off Spear
Releasing back off spear is used for fishing, back off and releasing the fish. It can catch and transmit left hand torque during back off. It can instead of left hand taper taps and die collars. The function is similar to back off sub.The difference is that it doesn’t need to make up thread with fish and catch at any part internally.
Specification
Model |
Size | Fishing ID mm(inch) | Tensile Load (KN) | Initial Pulling Force and Relevant Torque |
Conn. | |
Pulling Force (KN) | Torque N·M | |||||
SVDLM-T60 | 2 3/8 | 50.8(2) | 330 | 147 | 4313 | 2 7/8REG |
SVDLM-T73 | 2 7/8 | 69.9(2 3/4) | 500 | 166 | 5799 | NC31 |
SVDLM-T114 | 4 1/2 | 101.6(4) | 850 | 196 | 11522 | 4 1/2REG |
SVDLM-T140 | 5 1/2 | 125.7(4 61/64) | 880 | 196 | 13263 | NC50 |
Sliding Block Spear
Sliding block spear is an inside fishing tool for fishing the junk internally such as fishing drill pipe, tubing, washover pipe, liner, packer, water distributor, etc, and it also can do back off for the stuck junk or used with other tools(such as jar and back off tool).
Specification
Model |
OD mm(inch) |
Conn. | Specification & Property | |
Fishing ID mm(inch) | Tensile Load KN | |||
SVHLM-D(S)48 | 73(2 7/8) | 2 3/8TBG | -38(1 1/2) | 170 |
SVHLM-D(S)60 | 86(3 3/8) | NC26 | 42 ～ 53.8(1 5/8 ～ 2 1/8) | 314 |
SVHLM-D(S)73 | 105(4 1/4) | NC31 | 52.6 ～ 64(2 1/2) | 540 |
SVHLM-D(S)178 | 175(6 7/8) | NC38 | 152.3 ～ 168.1(6 ～ 6 5/8) | 5928 |
